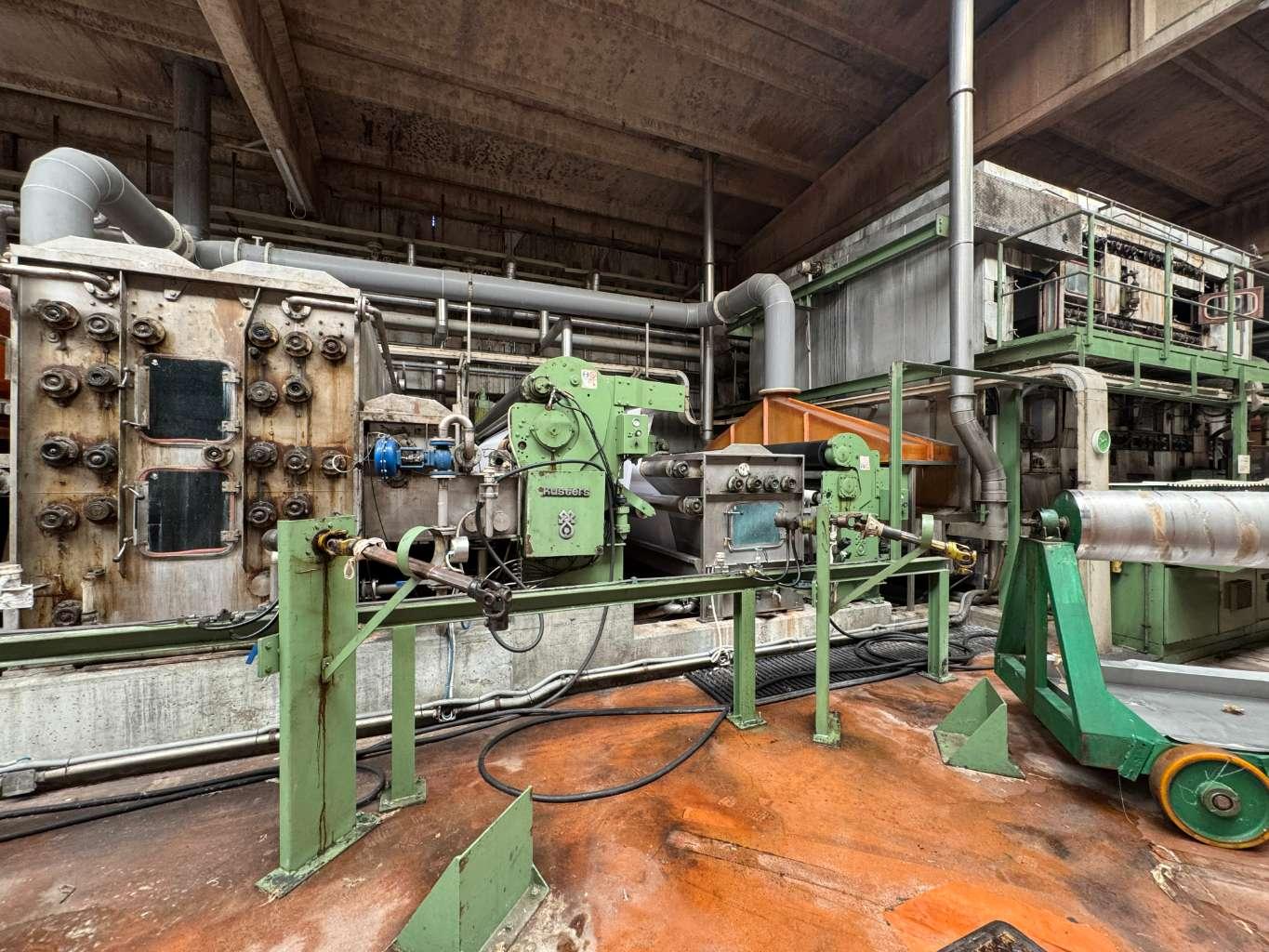

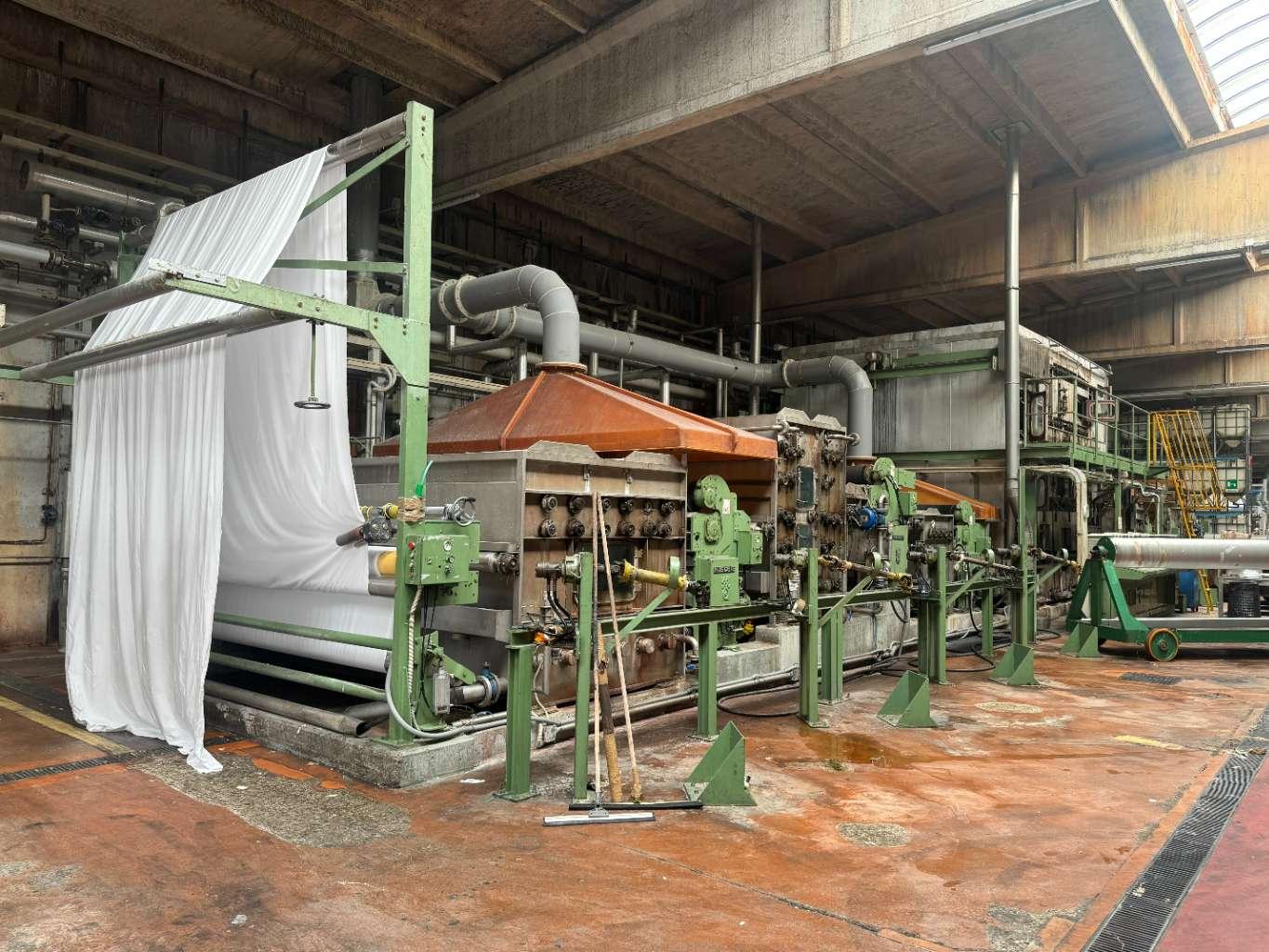

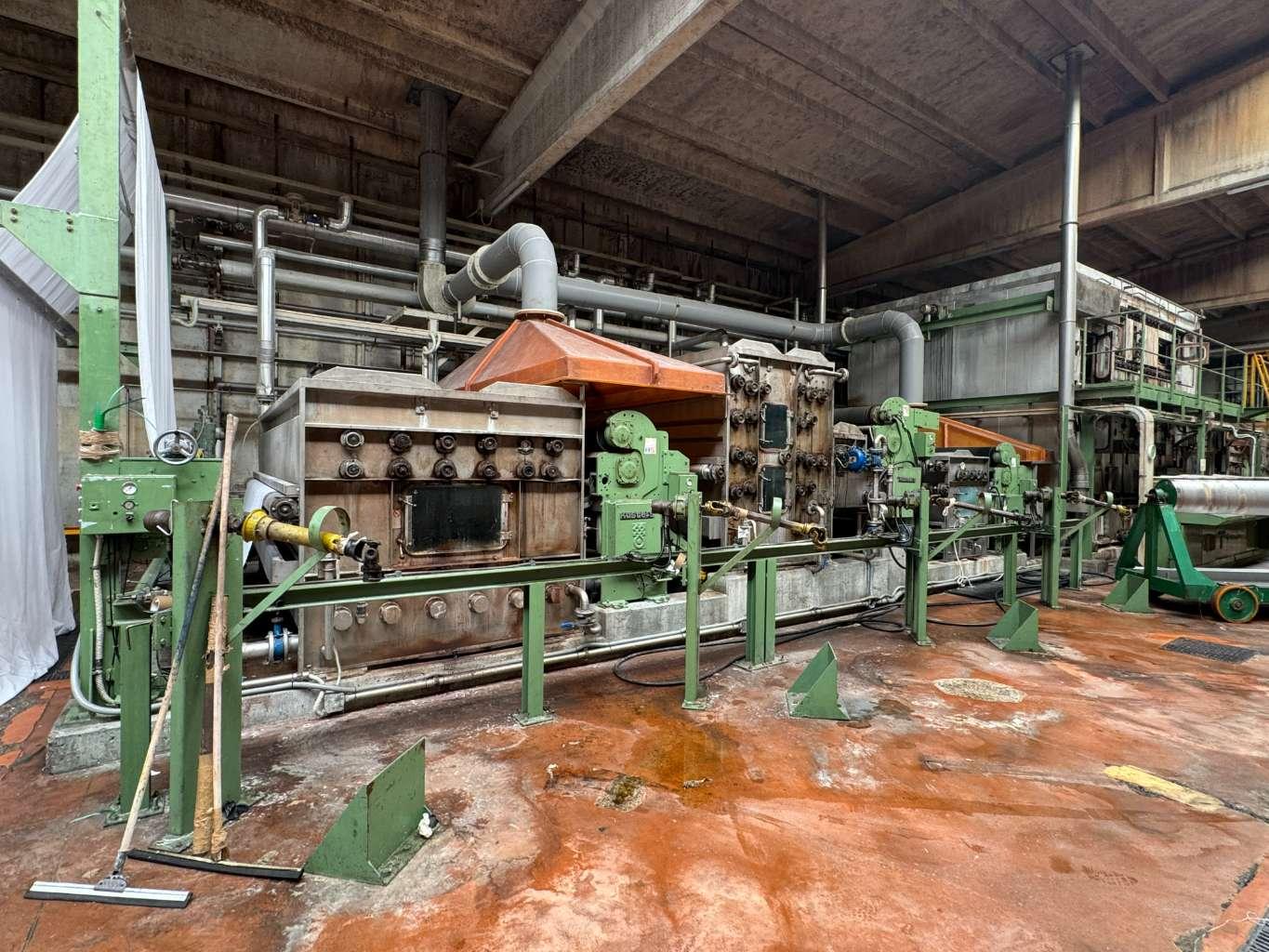

KÜSTERS BLEACHING LINE:

Max. fabric width 3.600 mm
Roller surface width: 3.800 mm
Drive side: left
Service side: right
Mechanical speed: 150 m/min
Production speed: 120 m/ min
Electrical tension: 3 x 380 V 50 Hz with MP Control tension: 220 Volt
Compressed air pressure: 7 Bar Steam: 2,5 - 3,0 Bar
Saturated Steam
Year of construction: 1991

This line is consisting of:

Entry frame with traction roller with driven traction roller dia. 177 mm soft rubber surface 75 deg Shore
E&L Fabric guider KF 2020 Dancing roller for tension control

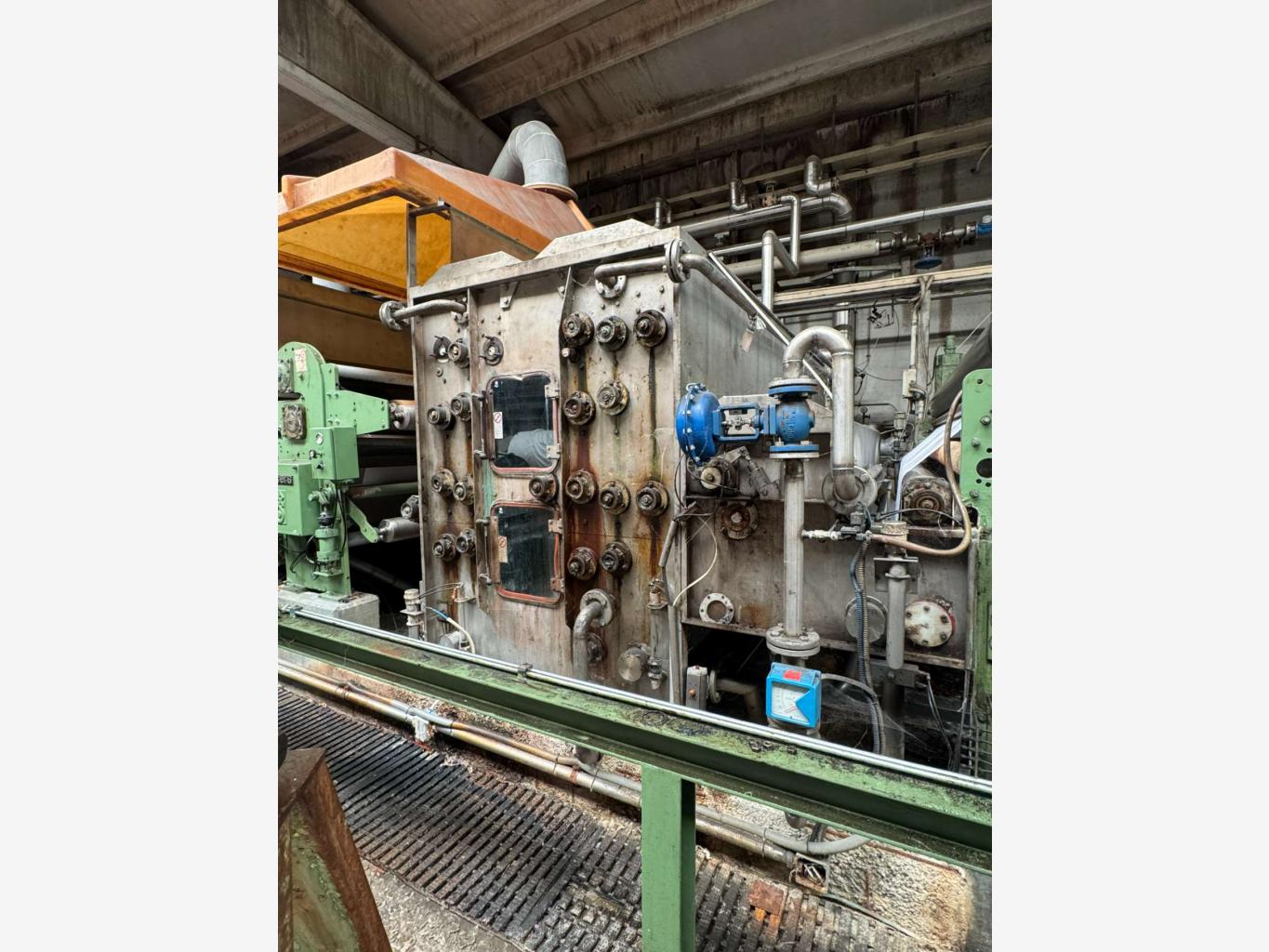

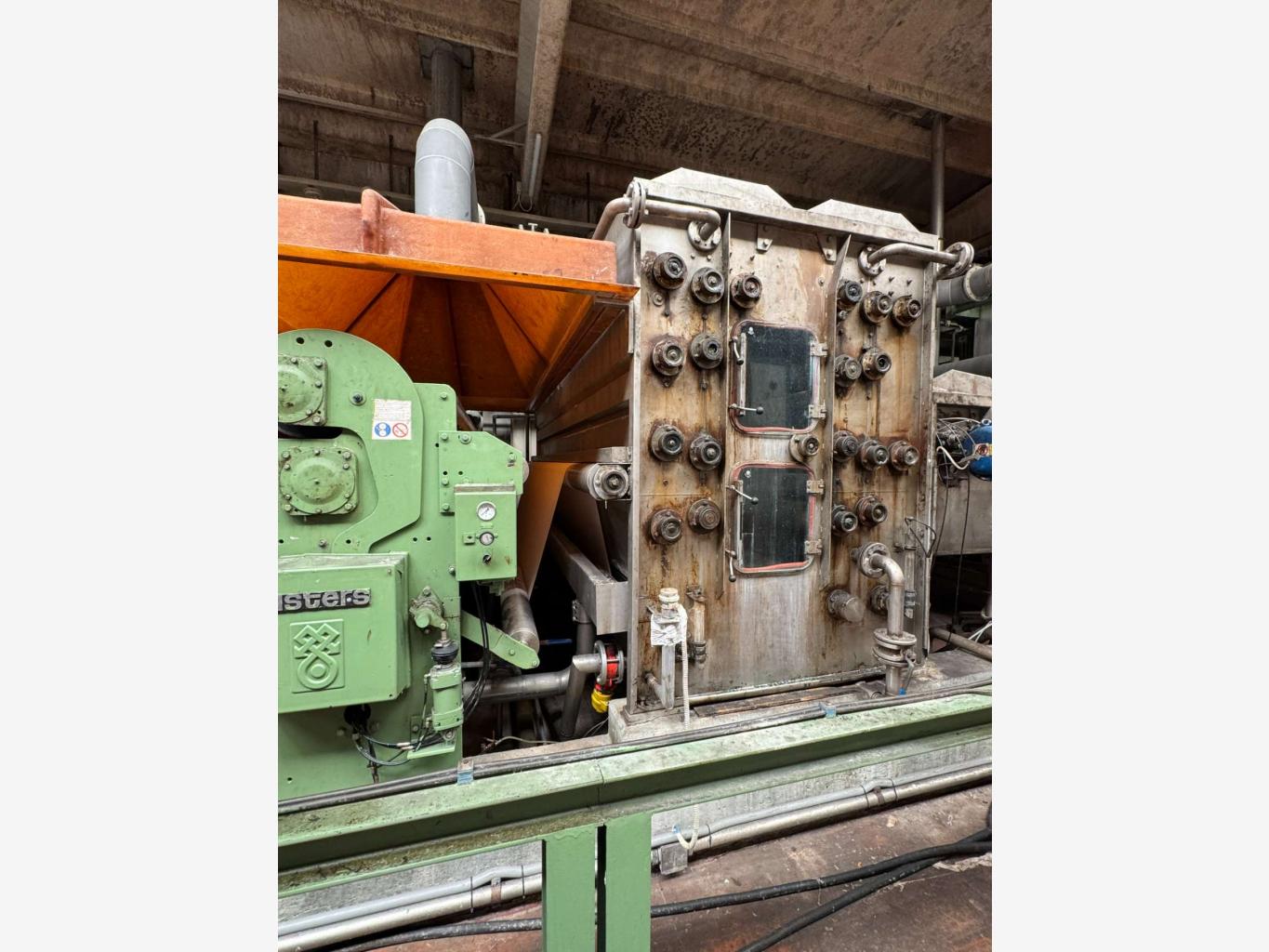

Open width washing compartment COMPACTA-D Fabric contain : 30 m
Direct heating Temperature regulation

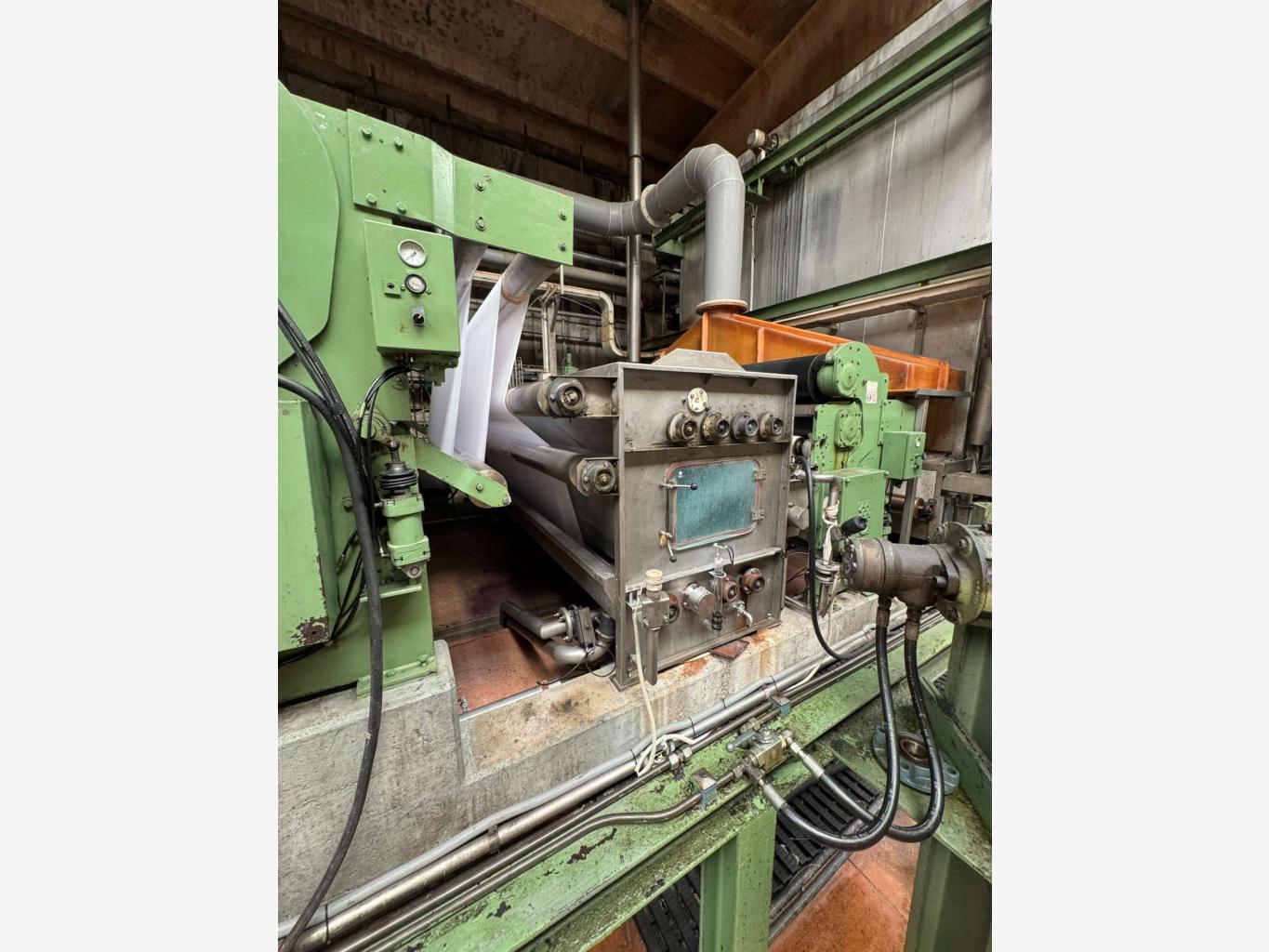

Two Bowl squeezer
Total power: own weight on upper roller Soft rubber surface line yellow 89 Pneumatic control system
2 Bow roller for fabric extension with soft rubber surface Verotex Dancing roller for tension control

Open width washing compartment MÄANDER Fabric contain : 18 meter
Direct heating with Steam Temperature regulation
Counterflow water flection static from Mäander to Compacta

Cooling section
Double VAT with 3 guiding roller Counterflow pump
Flowmeter

High efficiency Squeezer
Total power 50 n/mm (50 kp/cm) Hydraulik power control unit
Guiding roller with soft surface cover Dancing roller for tension control

Impregnation Compartment Fabric contain: 10 meter
soft squeezing roller pair on the Exit Direct heating system
Automatic temperature regulation Niveau regulation for fresh water Fleet circulation system

Two Bowl Squeezer
Total power: own weight on upper roller Soft rubber surface : Verotex
Rubber 75 deg Shore Pneumatic control system
2 Bow roller for fabric extension with soft rubber surface Verotex Dancing roller for tension control

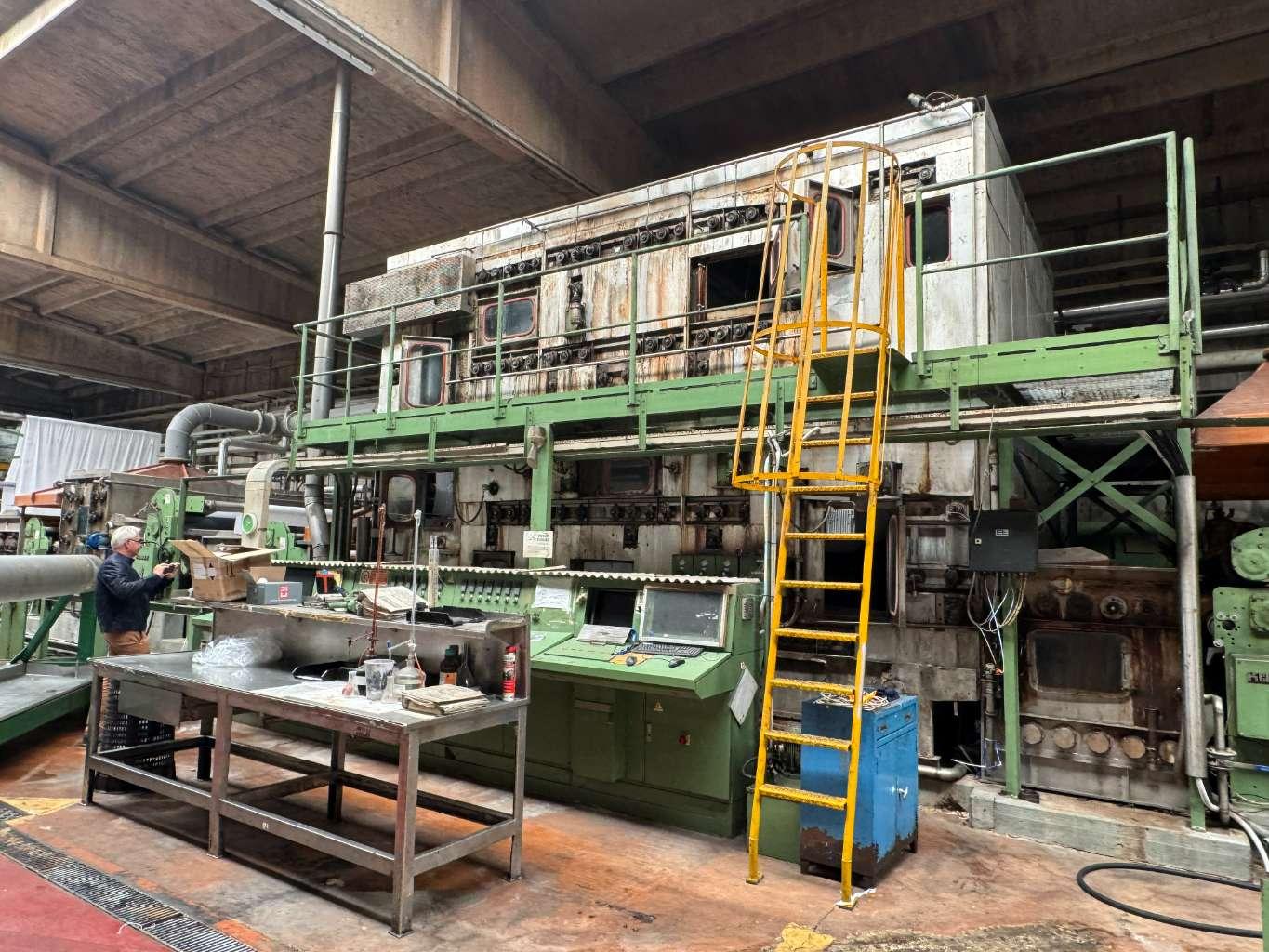

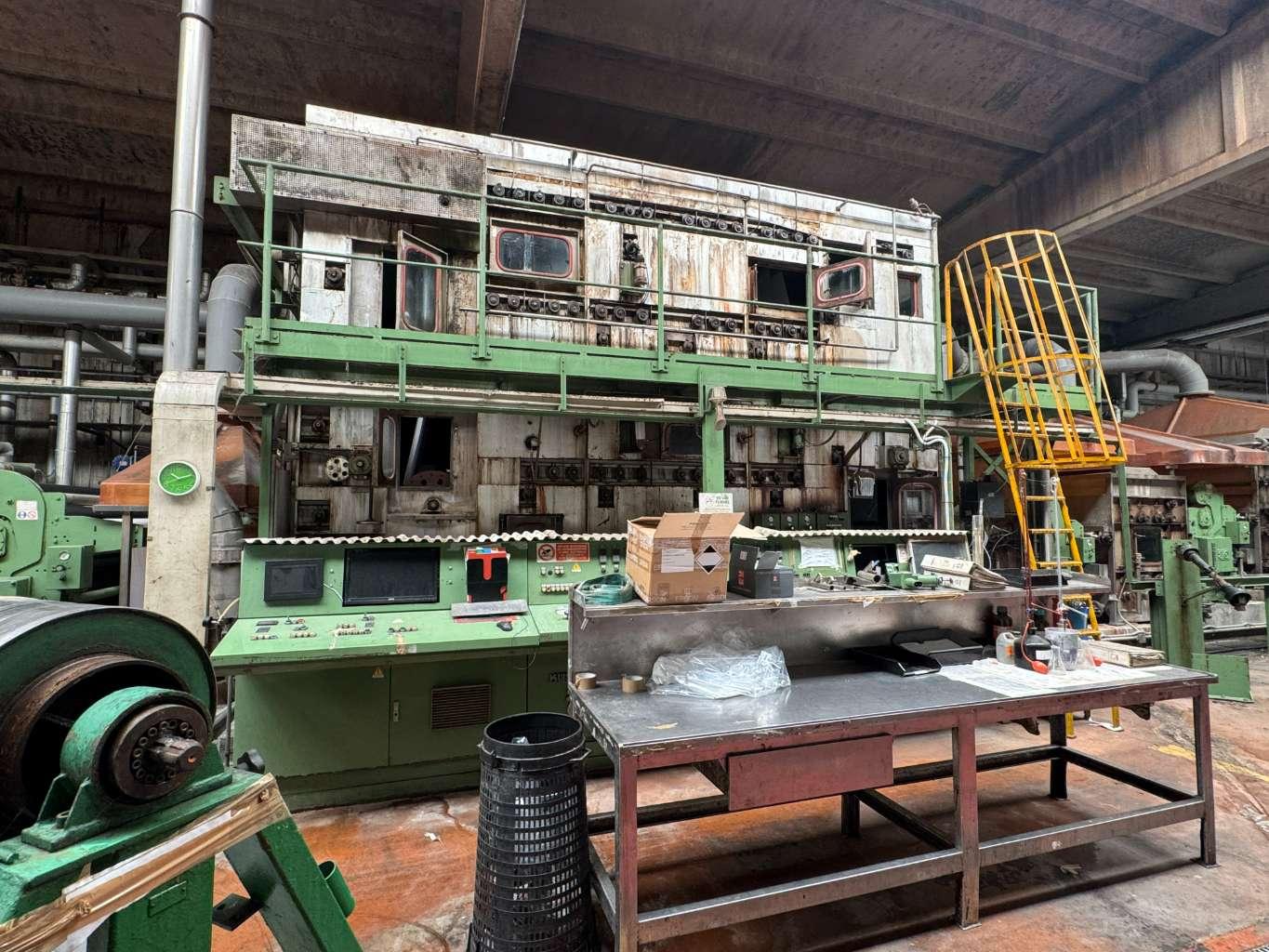

Rollernde Steamer
Fabric contain bounded : 84 meter Fabric contain plaited: 1.900 m
calculated on the base of fabric weight 150 g/m2 All made of stainless steel : 1.4571

Roller section connected to the Steamer Fabric contain apron. 10 meter
Rollers with rubber surface: VEROTEX Guiding roller dia . 147 mm
with direct heating installation (Steam) 2.5 - 3.0 bar
squeezing roller dia. 150 mm with soft rubber surface (65 Shore) Automatic temperature regulation

Two Bowl Squeezer
Total power: own weight on upper roller Soft rubber surface : Verotex
Rubber 75 deg Shore Pneumatic control system
2 Bow roller for fabric extension with soft rubber surface Verotex Dancing roller for tension control

Open wide washing compartment COMPACTA-D Fabric contain: 20 m
with 8 roller below the fleet (4 roller 177 mm dia)
(4 roller 147 mm dia)
5 guiding roller dia 147 mm
3 guiding roller 177 mm
Direct heating system installed Temperature regulation
Counterflow system, static from Compacta to pos. 10.00

Two Bowl Squeezer
Total power: own weight on upper roller Soft rubber surface : Verotex
Rubber 75 deg Shore Pneumatic control system
2 Bow roller for fabric extension with soft rubber surface Verotex Dancing roller for tension control

Open width washing compartment MÄANDER Fabric contain : 15 meter
Roller surface with Rubber quality: Line 89 Yellow

3 guiding roller dia 147 mm
2 intermediate squeezing roller with upper roller soft rubber surface 65 shore lower roller with hard rubber surface
Direct heating with Steam Temperature regulation
Counterflow water fluction system installed, static from Mäander to Compacta
