Machine description

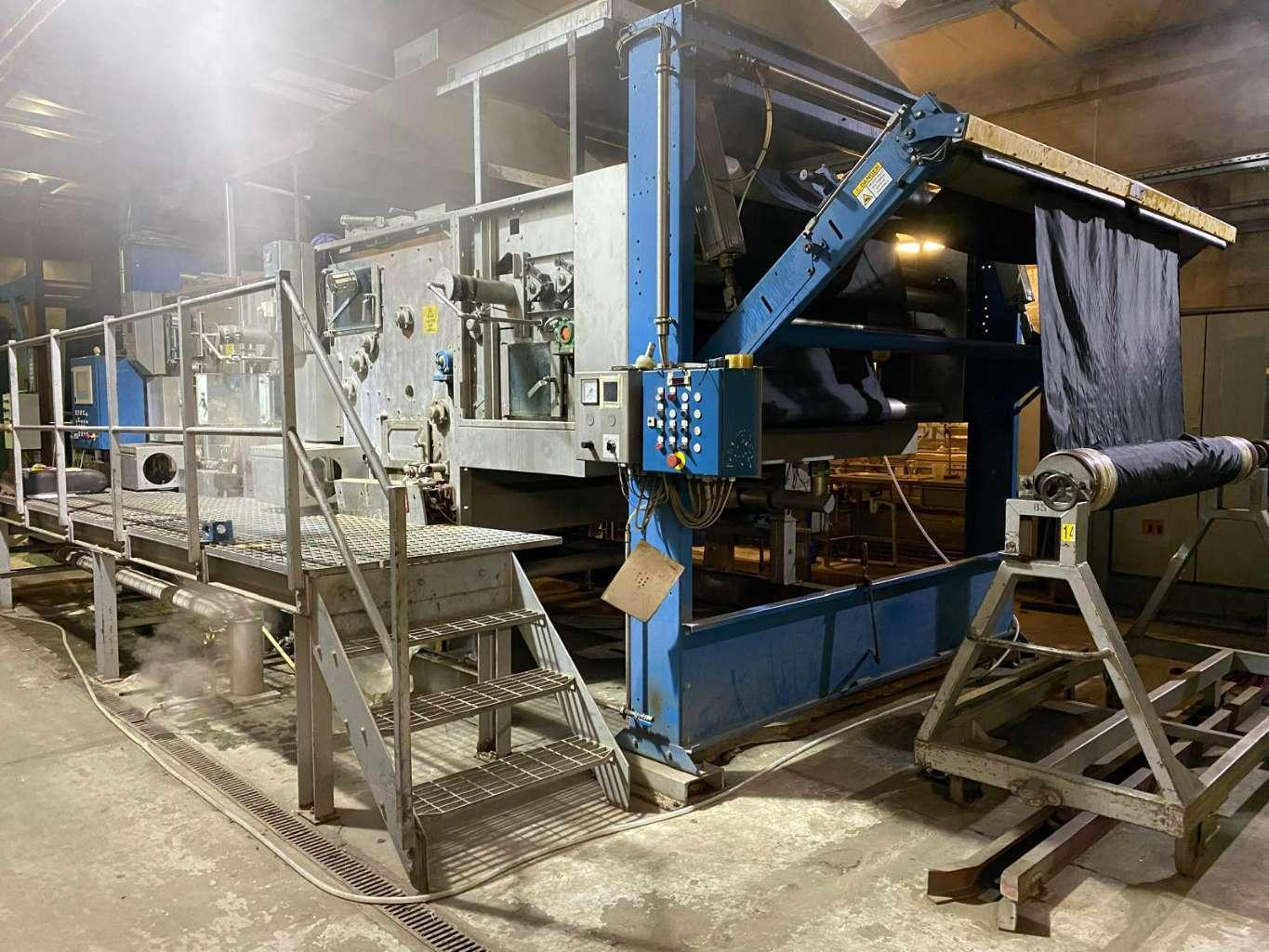

BENNINGER WASH RANGE WOVEN 2400 mm ww Year 2002

OPEN WIDTH HIGH EFFICIENCY WASH RANGE MODEL TRICOFLEX.

RANGE CONSISTS OF:

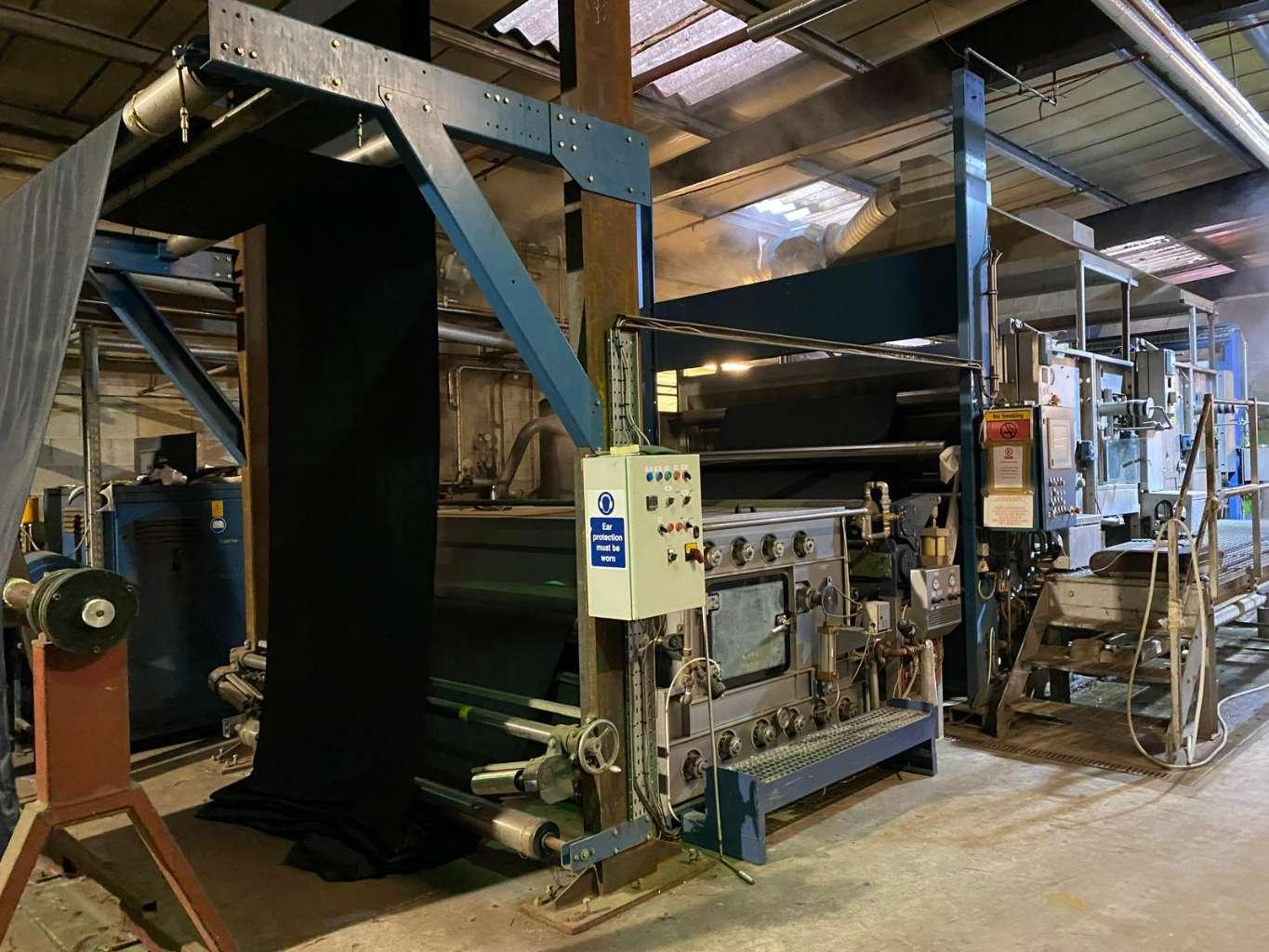

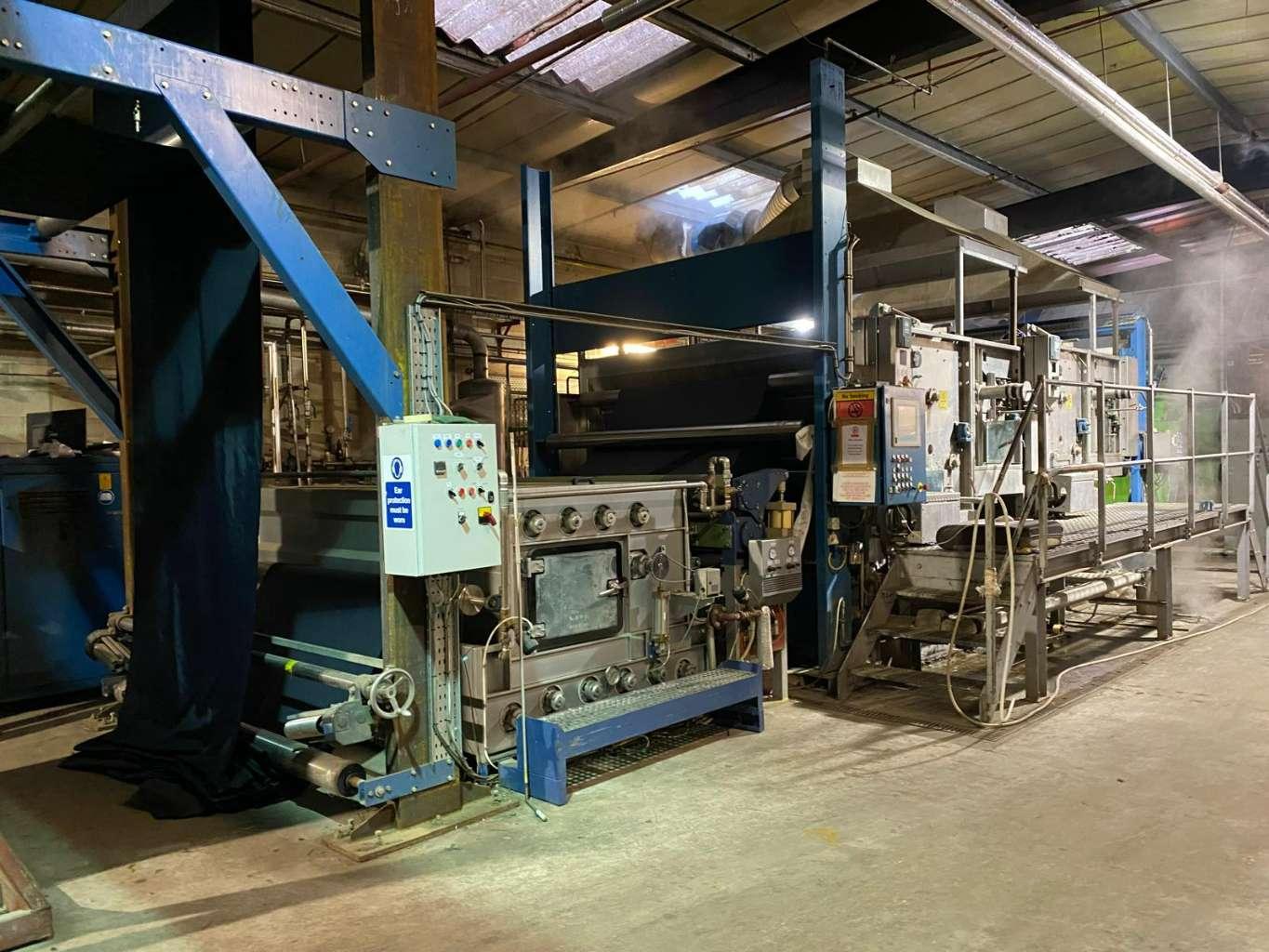

HIGH FABRIC ENTRY FRAME FABRIC FEEDING FROM A CENTRE DRIVEN A FRAME UNWIND THROUGH A PAIR OF FABRIC E+L FABRIC GUIDERS. 2 DRIVEN SCROLL ROLLER

THE 2 BENNINGER STAINLESS STEEL WASHING COMPARTMENTS ARE EACH EQUIPED WITH 2 HIGH LEVEL PERFORATED DRUMS WITH DOUBLE NOZZLE BARS ON EACH DRUM.

THE PERFORATED ROTATING DRUMS HAVE FINE TRIM TENSION CONTROL BETWEEN EACH WASHING COMPARTMENT.

2 X CIRCULATION PUMPS FOR WATER SUPPLY TO NOZZLES.

COUNTERFLOW OPERATION FROM SECOND WASHING TANK BACK TO THE FIRST TANK.

2 X BENNINGER VACUUM SUCTION SLOTS ONE AFTER EACH WASHING COMPATMENT WITH FILLTER SEPARATOR

INDEPENDENT LIQUOR FLOW CONTROL AND AUTOMATIC TEMPERATURE CONTROL ON EACH BOX.

PROGRAMMABLE FLOW CONTROL BASED ON RANGE SPEED AND WEIGHT OF FABRIC.

STAINLESS STEEL PRE-WASH WATER HEAT EXCHANGER (FULLY AUTOMATIC)

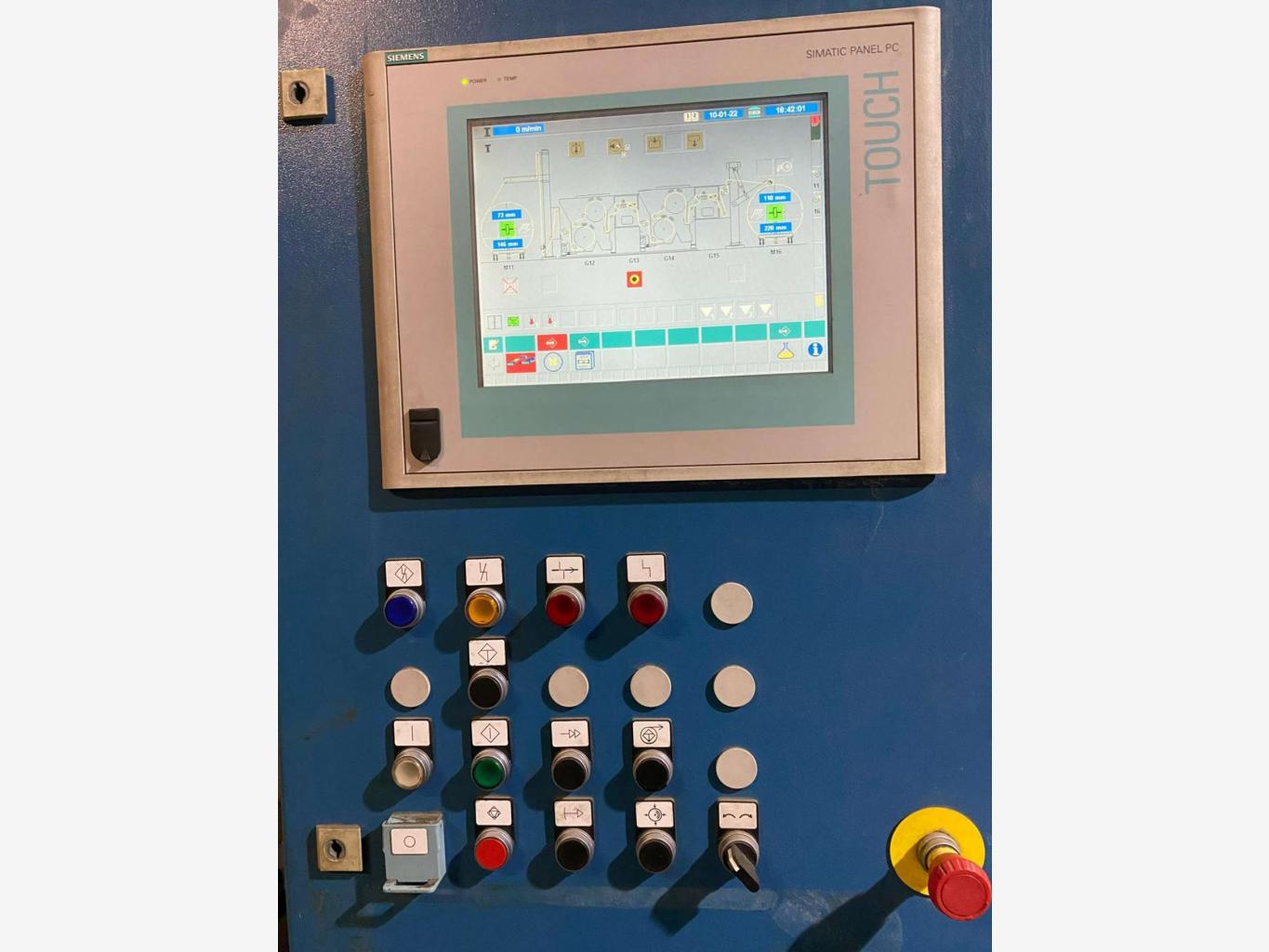

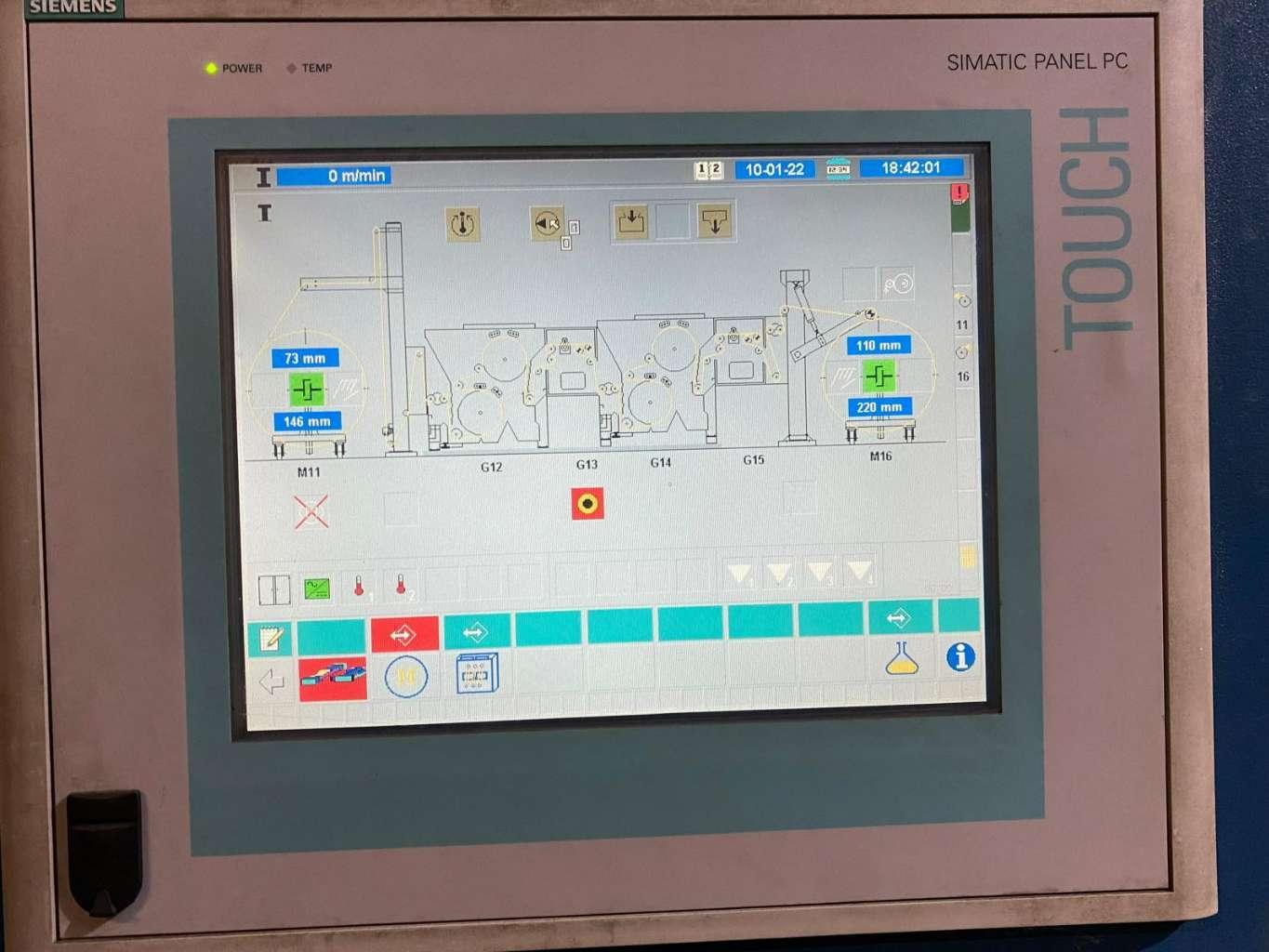

CONTROL PANEL BASED ON SIEMENS HARDWARE.

EXIT BY DOUBLE DRAW ROLLERS, SWIVEL TENSION ROLLERS, BOW ROLLER AND NON-CONTACT BATCH ARM WITH CENTRE DRIVEN A FRAME

THE RANGE IS SUITABLE FOR:

DE SIZING, SCOURING, AFTER PRINT WASHING OF TENSION SENSITIVE WOVEN FABRICS & KNITTED POLYESTER, & LIGHT WEIGHT POLY COTTON FABRICS

CONTROL PANEL BASED ON SIEMENS HARDWARE.

RANGE SPEED: 0-20MPM. OPERATORS PLATFORM DOWN THE RIGHT-HAND SIDE OF THE MACHINE.

TAKE OFF BY CENTER WIND BATCHER
