Machine description

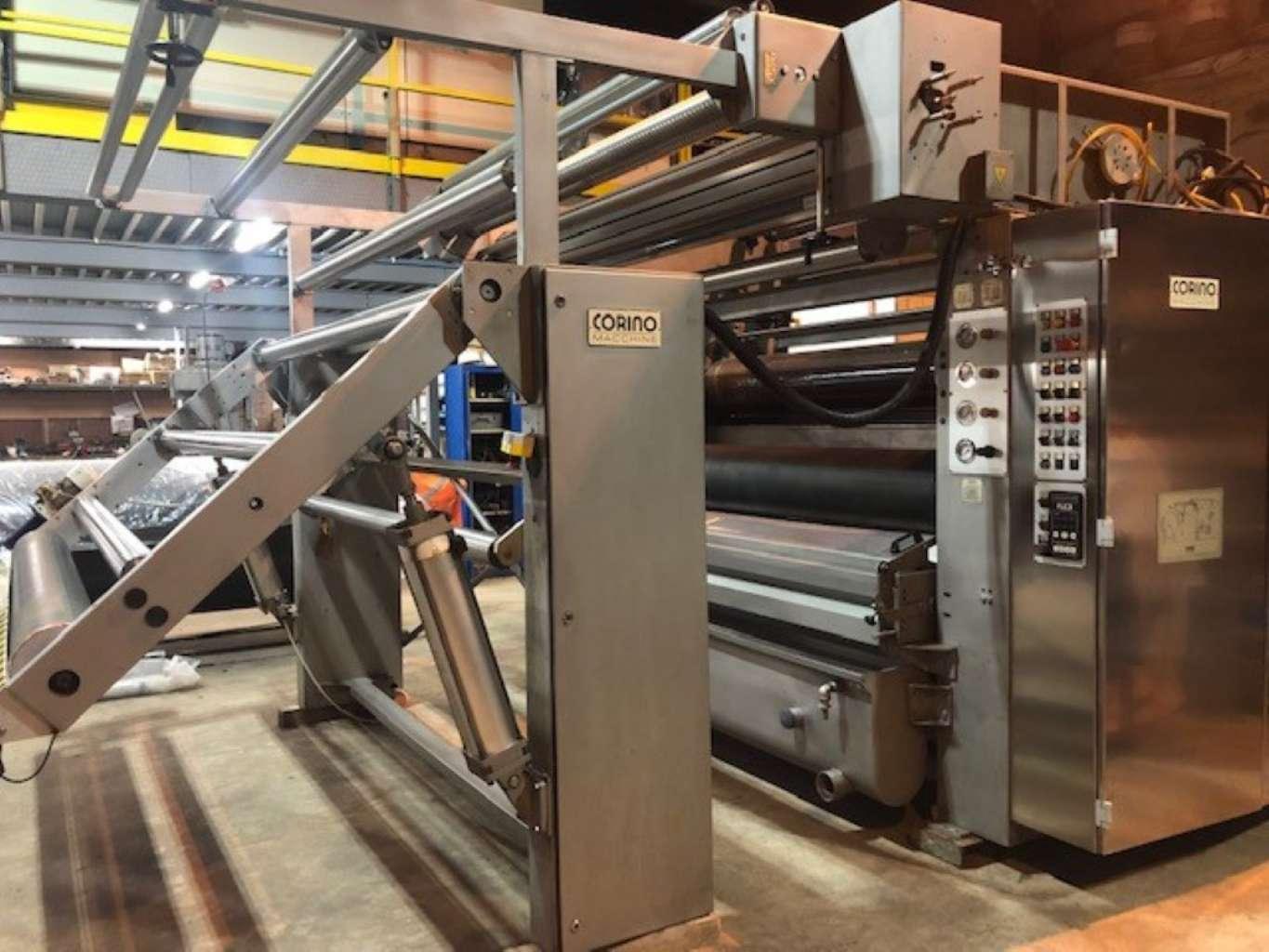

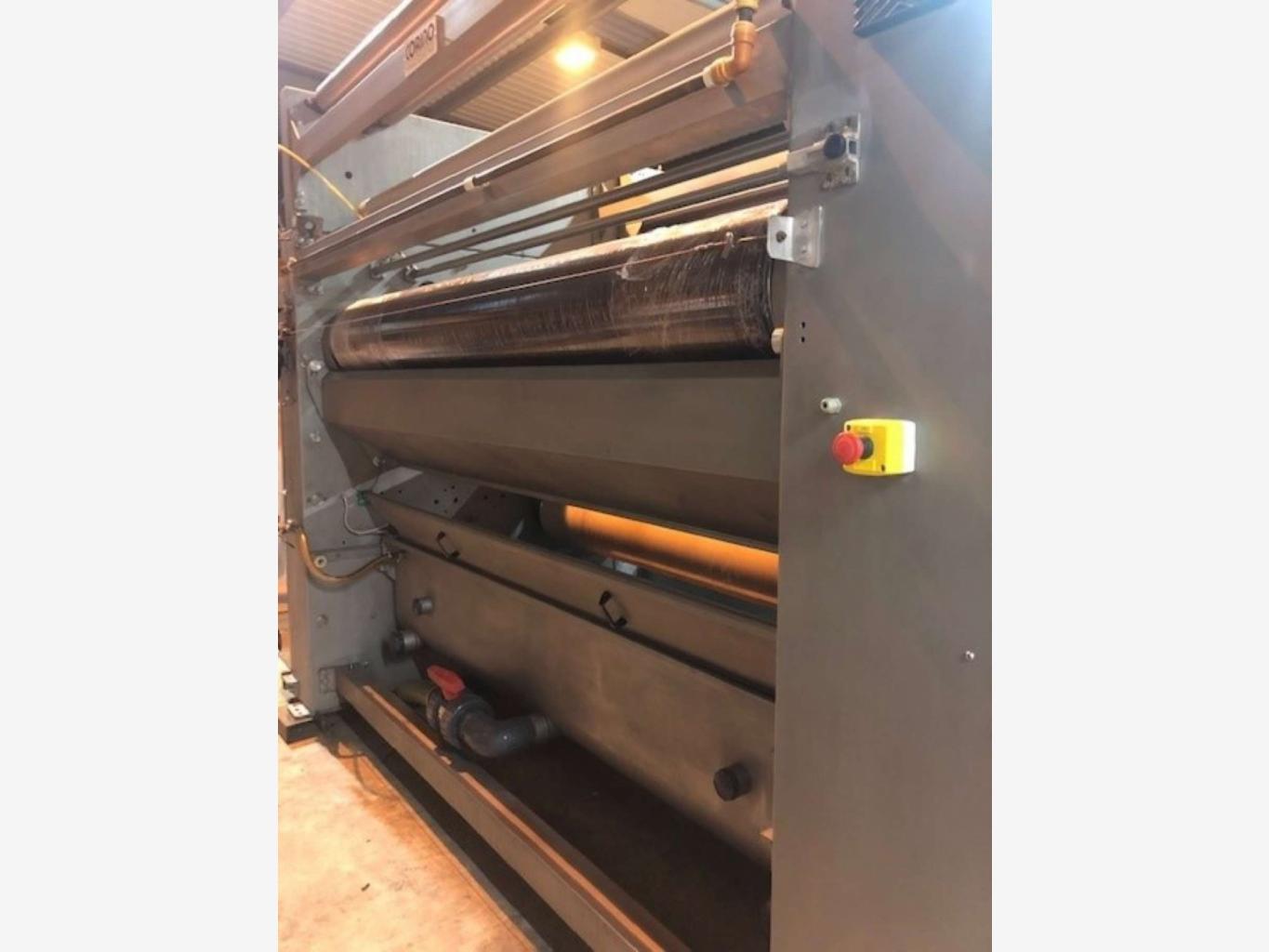

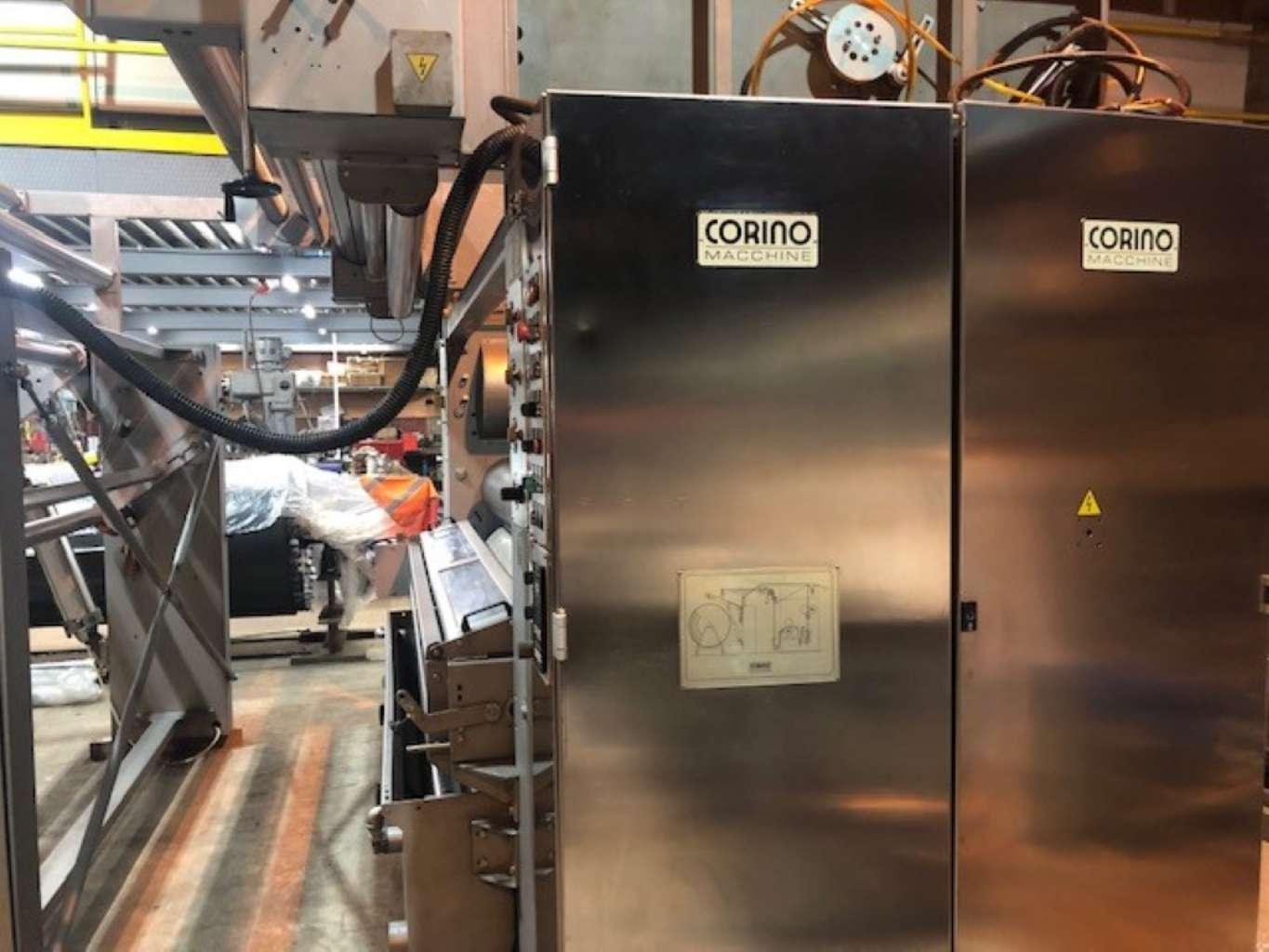

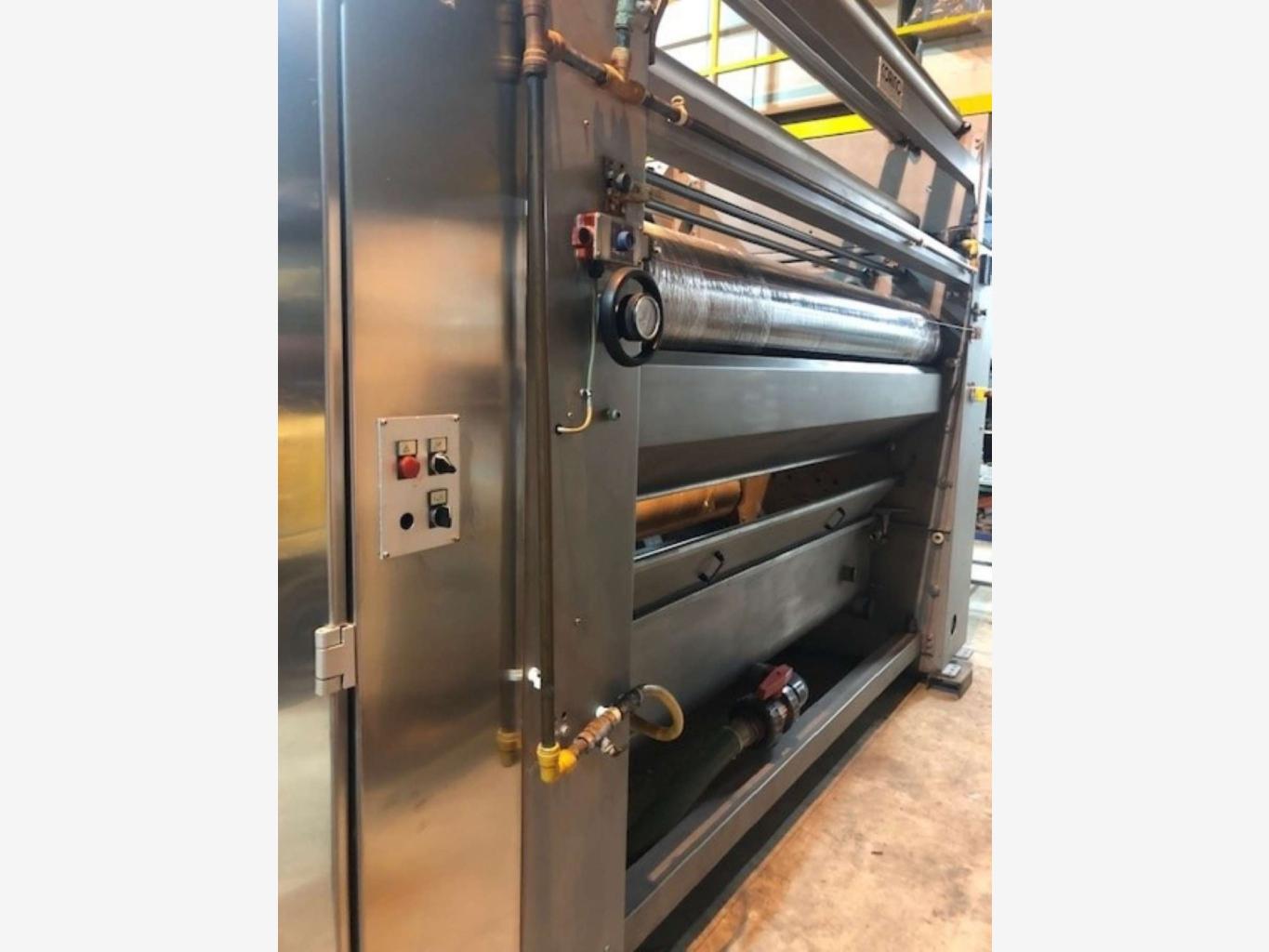

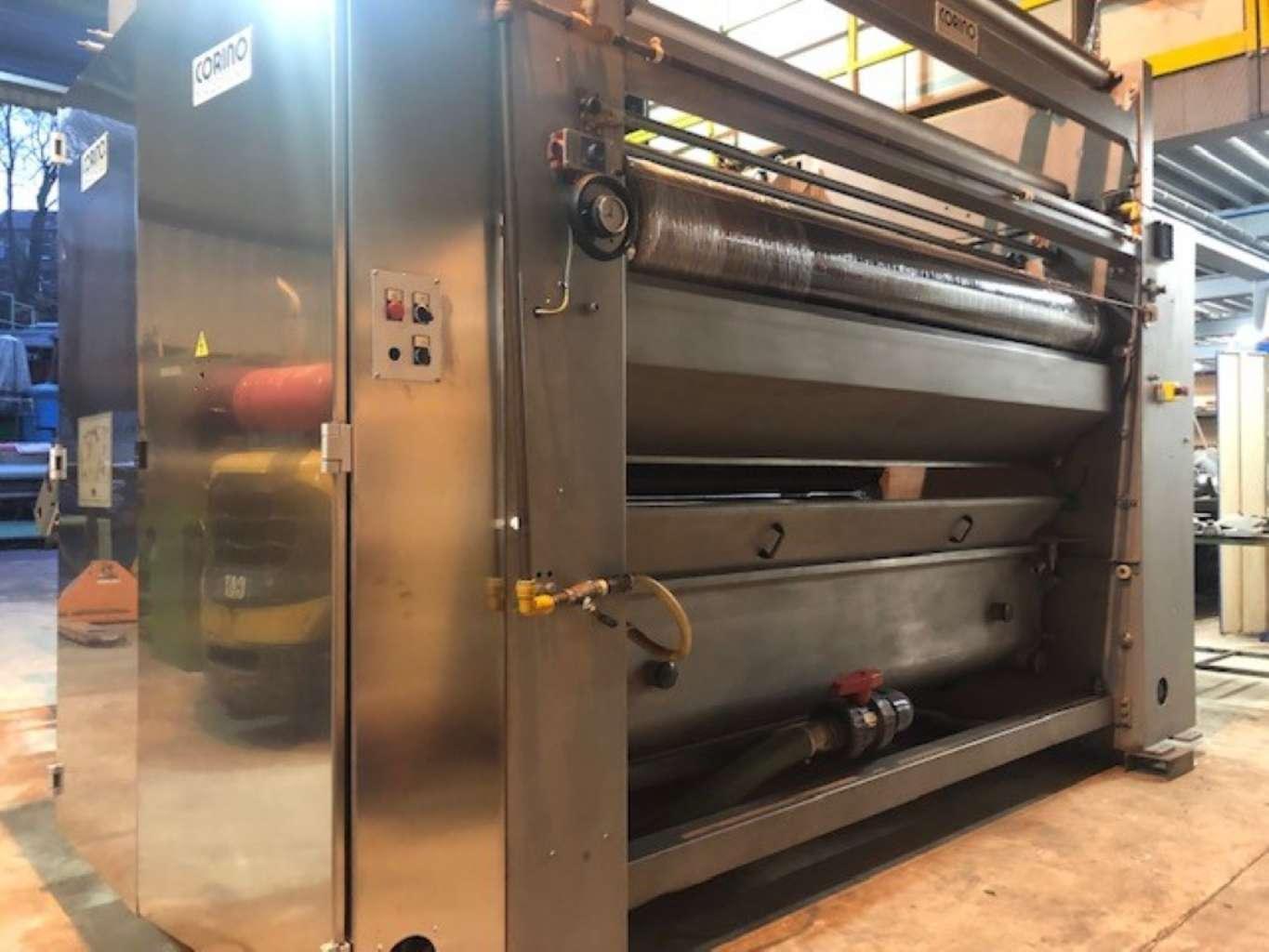

CORINO IMPREGNATION PADDER FOR KNITS, YEAR 2002
MODEL F-QUATTRO
ROLLER WIDTH 2.400 MM
TWO PADDERS

CORINO PADDER 2.200 MM WORKING WIDTH, 2.400 MM ON THE FACE REFURBISHED YEAR 2024 WITH NEW AC INVERTERS
TYPE: F QUATTRO
415 V, 5 Hz, MAX KW 24
MAXIMUM WORKING PRESSURE 15,000 KG

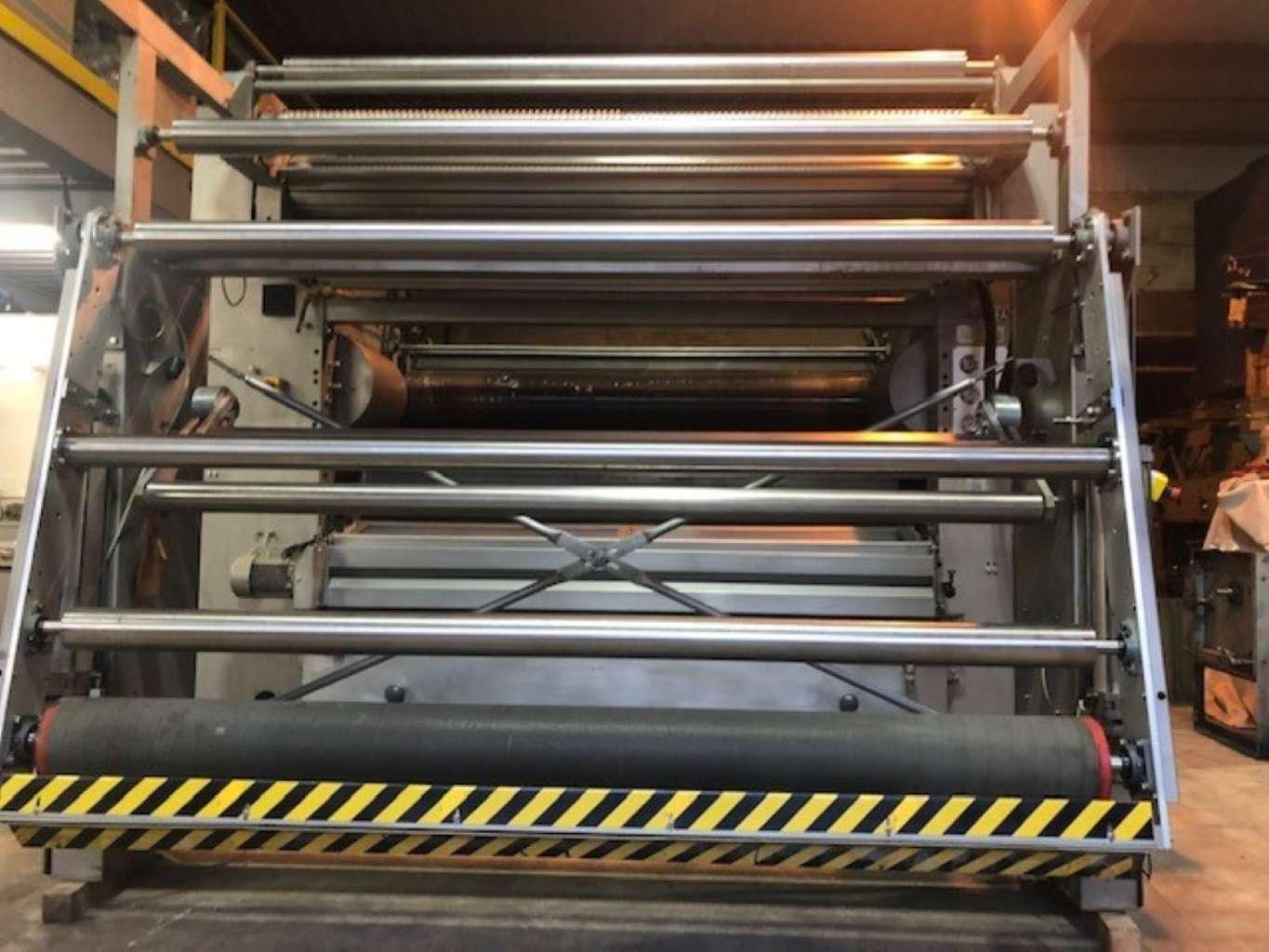

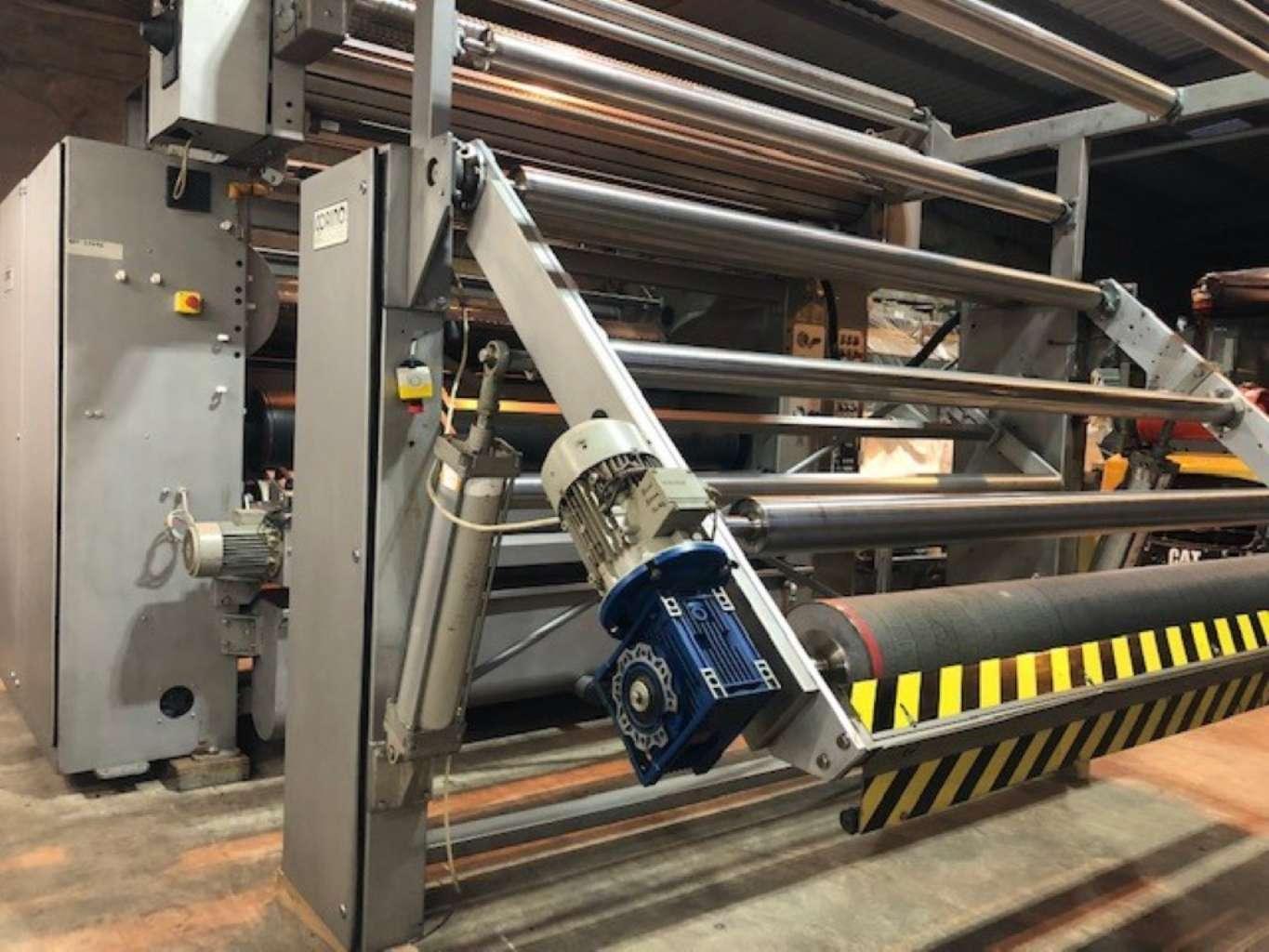

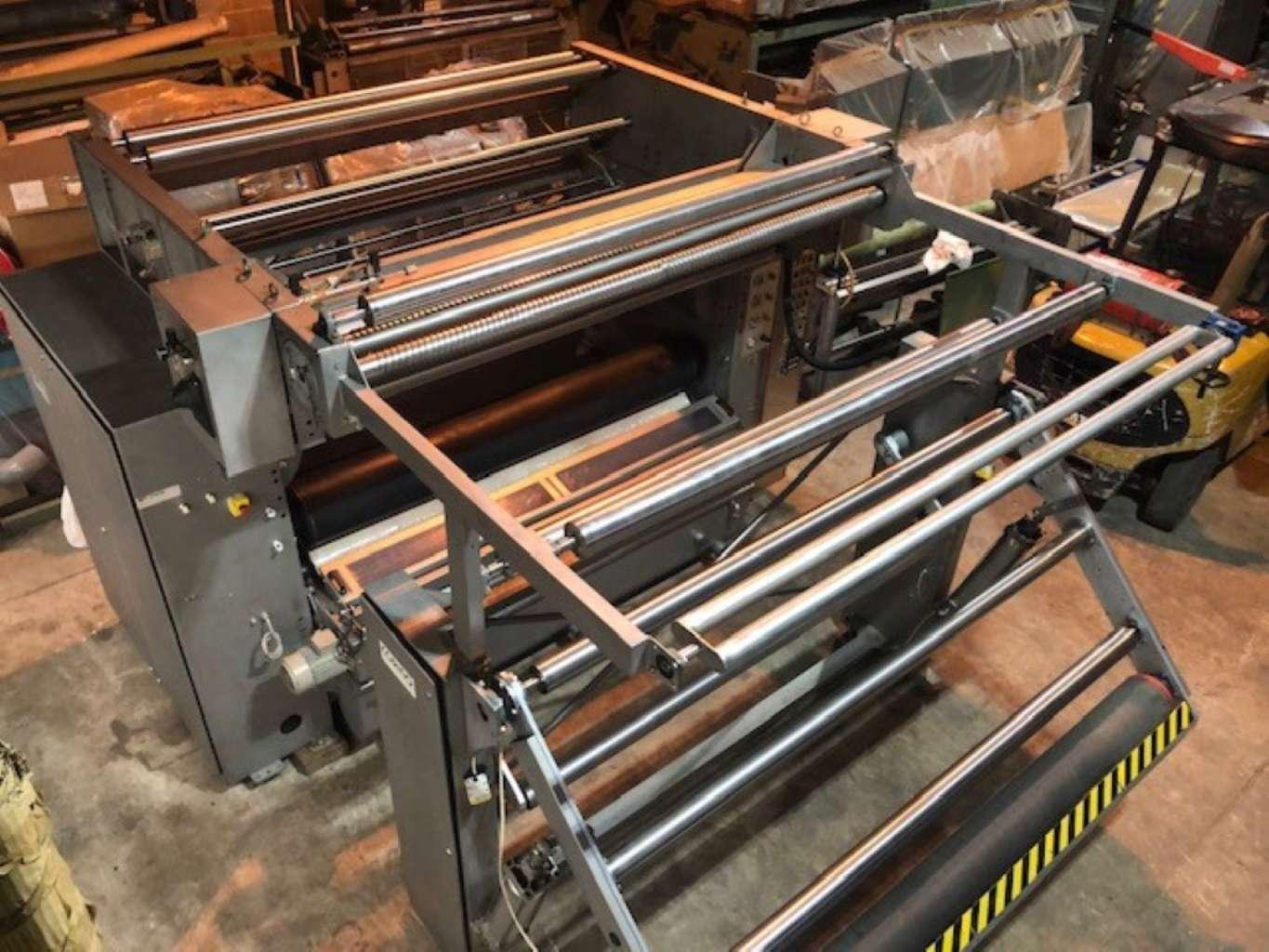

ENTRY WITH DRIVEN DE-BATCHING ARM FINE TRIM COMPENSATOR

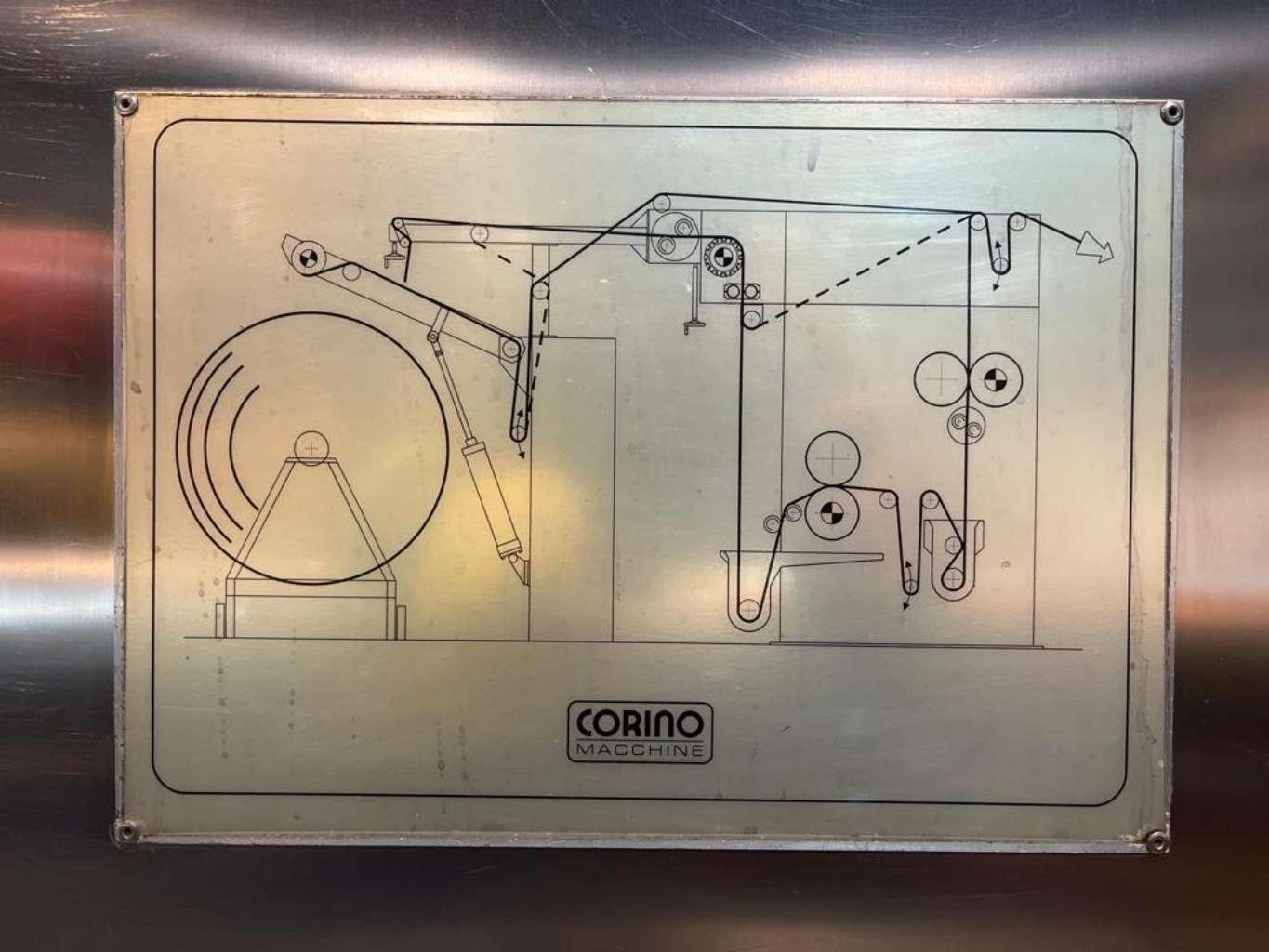

PRE-TENSION ENTRY ON OVERHEAD FRAMEWORK, ENTRY WITH DRIVEN 2 SCROLL ROLLS AND CORINO DOGAL GUIDER
2 DRIVEN SCROLL ON ENTRY TO THE 2 VERTICAL SQEEZE ROLLERS FINE TRIM COMPENSATOR
DOUBLE DIP IMPREGNATION TANK
2 DRIVEN SCROLL ON ENTRY TO THE 2 HORIZONTAL SQEEZE ROLLERS FINE TRIM COMPENSATOR TO TRIM THE SPEED WITH THE STENTER
STAINLESS STEEL CONSTRUCTION AC DRIVES
SQUEEZE PRESSURE
ONE BAR  = 2500
TWO BAR  = 5.000
THREE BAR = 7.500
FOUR BAR = 10.000
FIVE BAR = 12.500
SIX BAR = 15.000
