Machine description

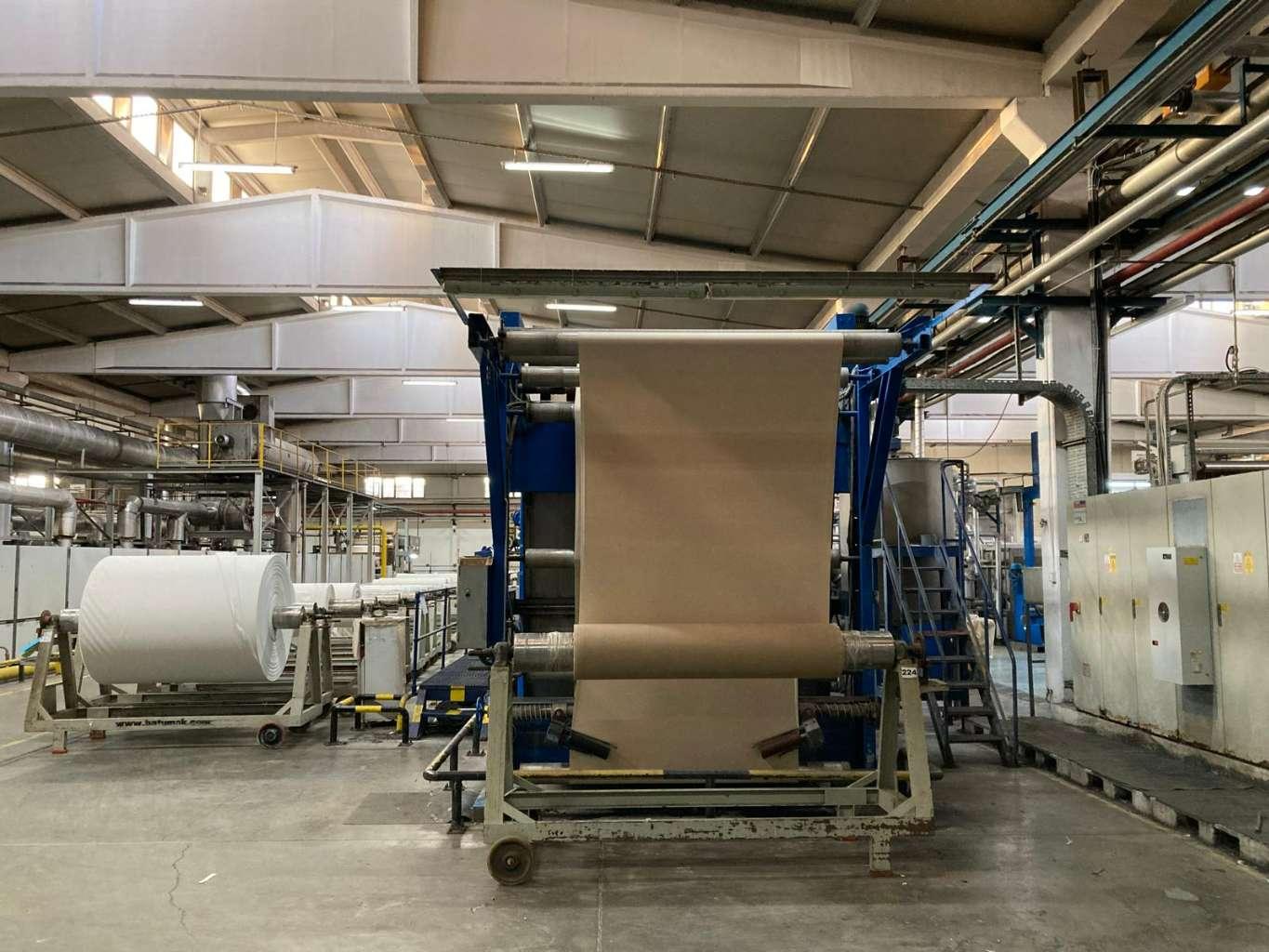

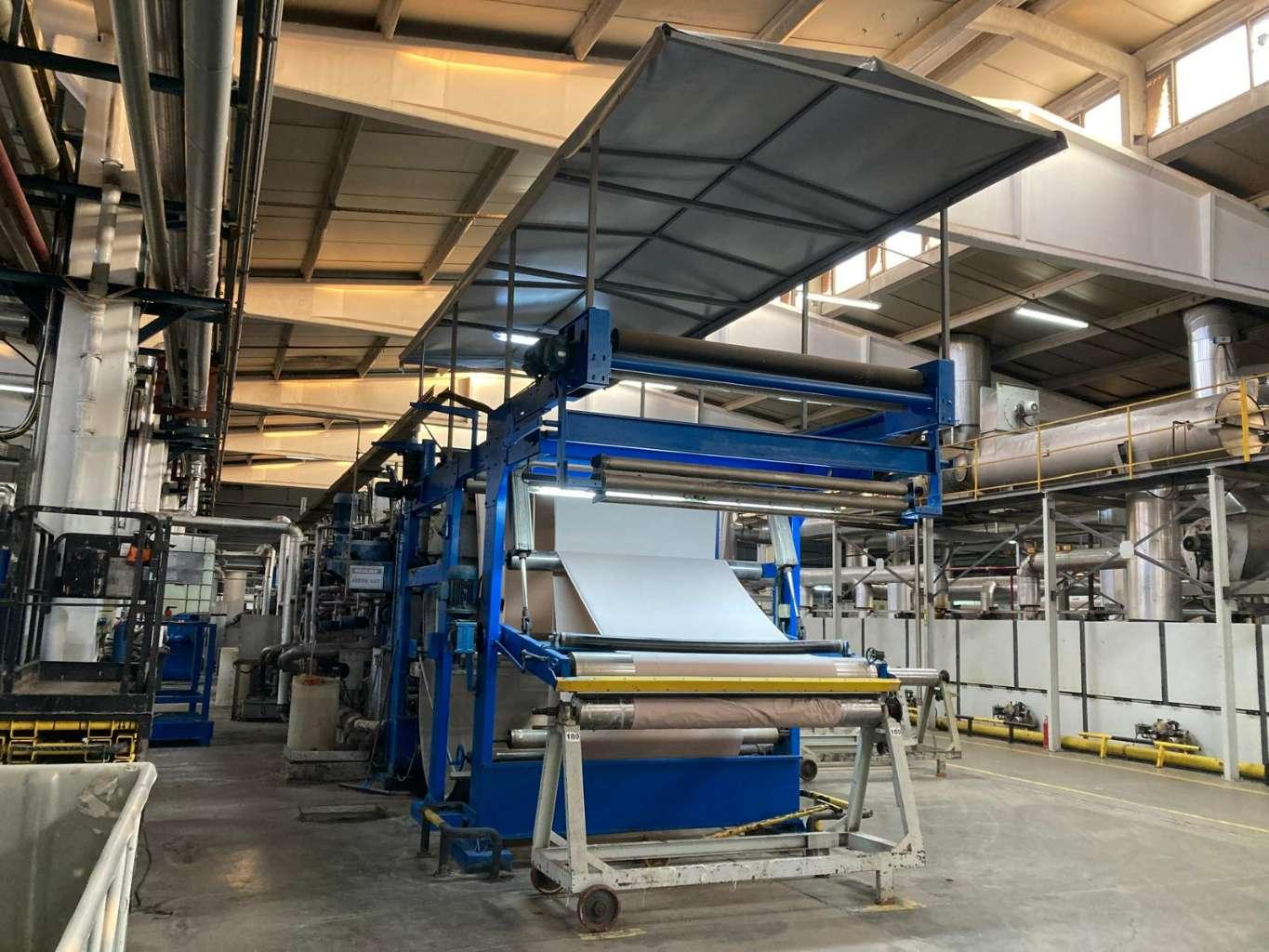

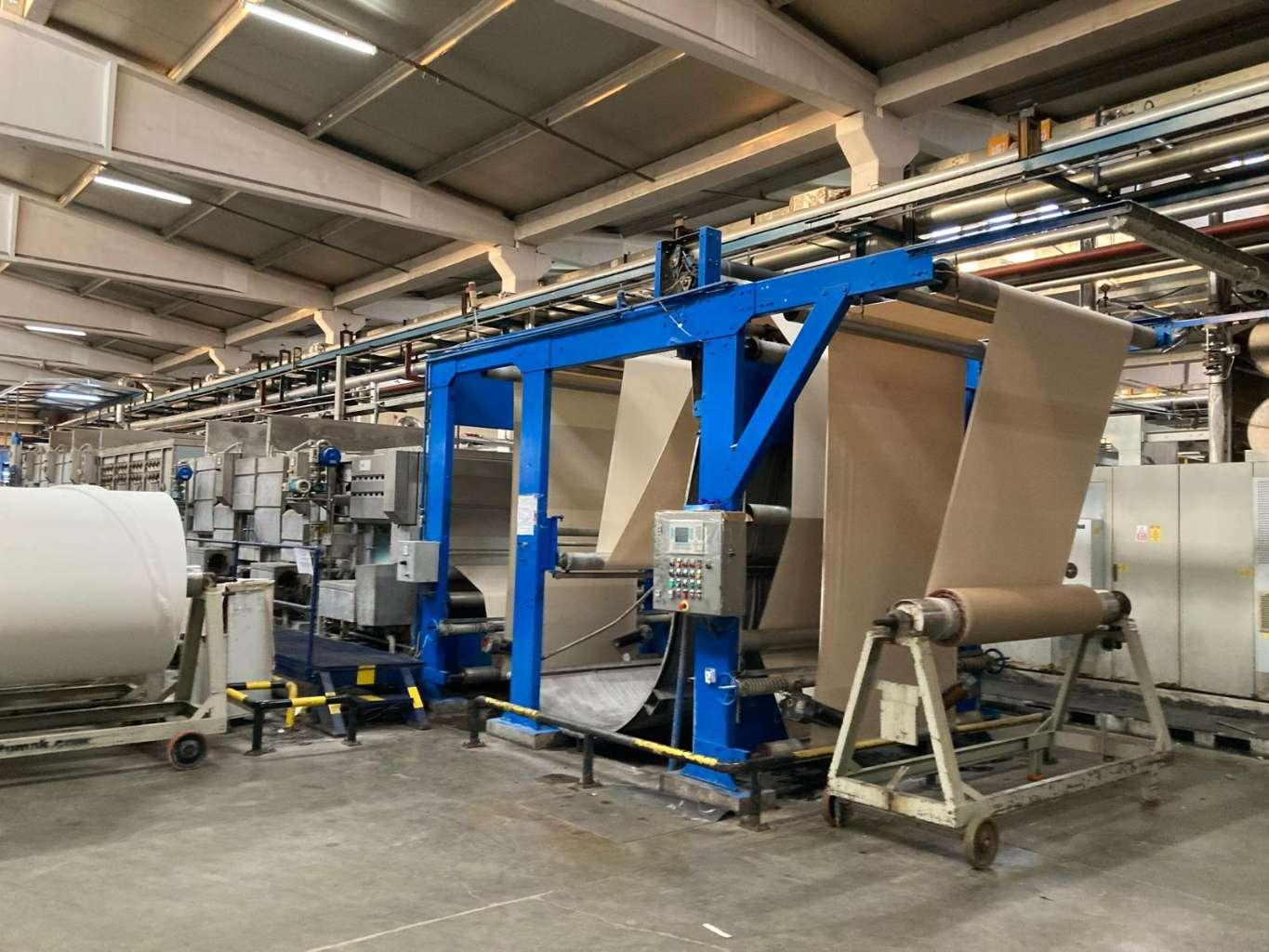

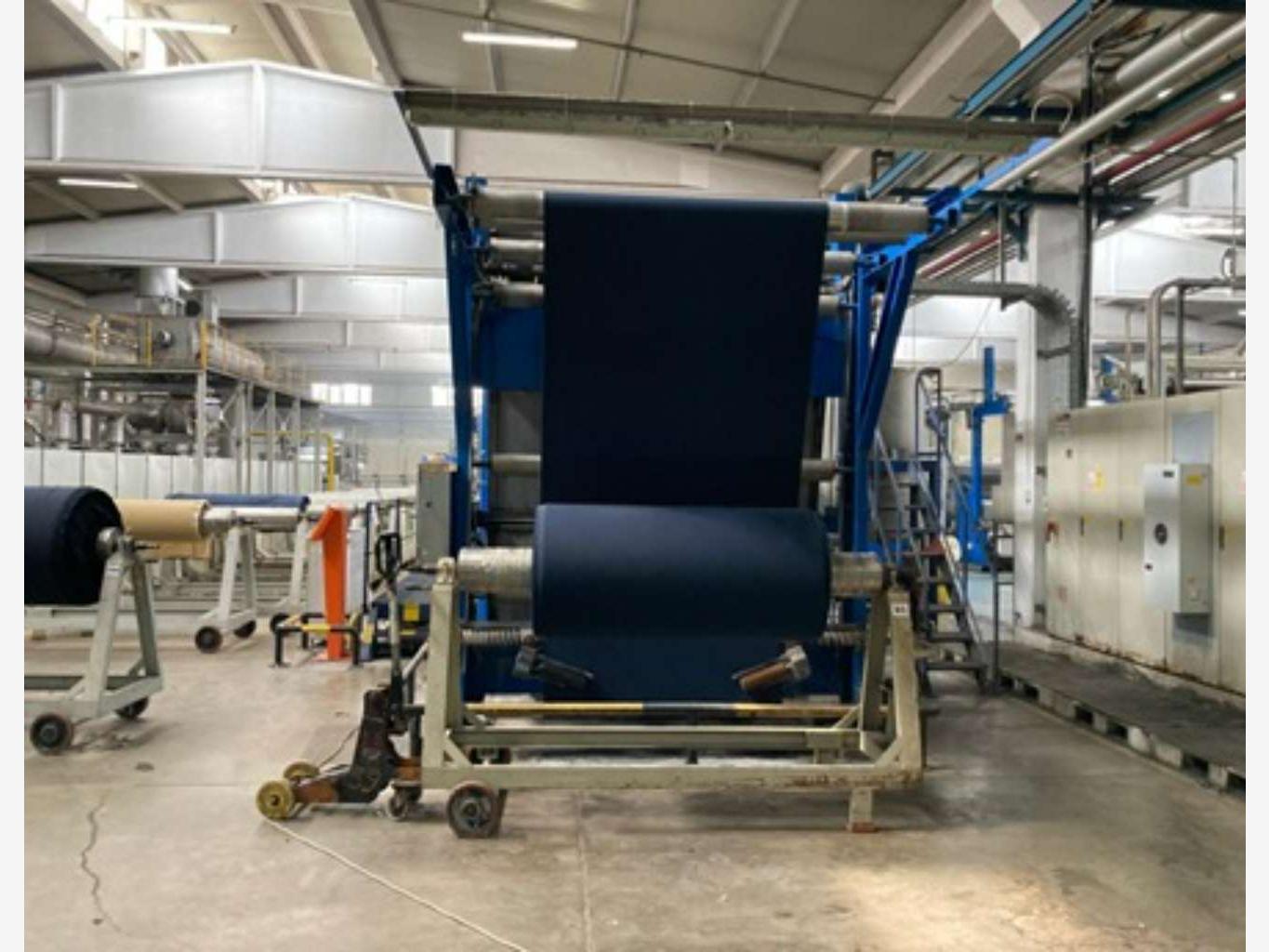

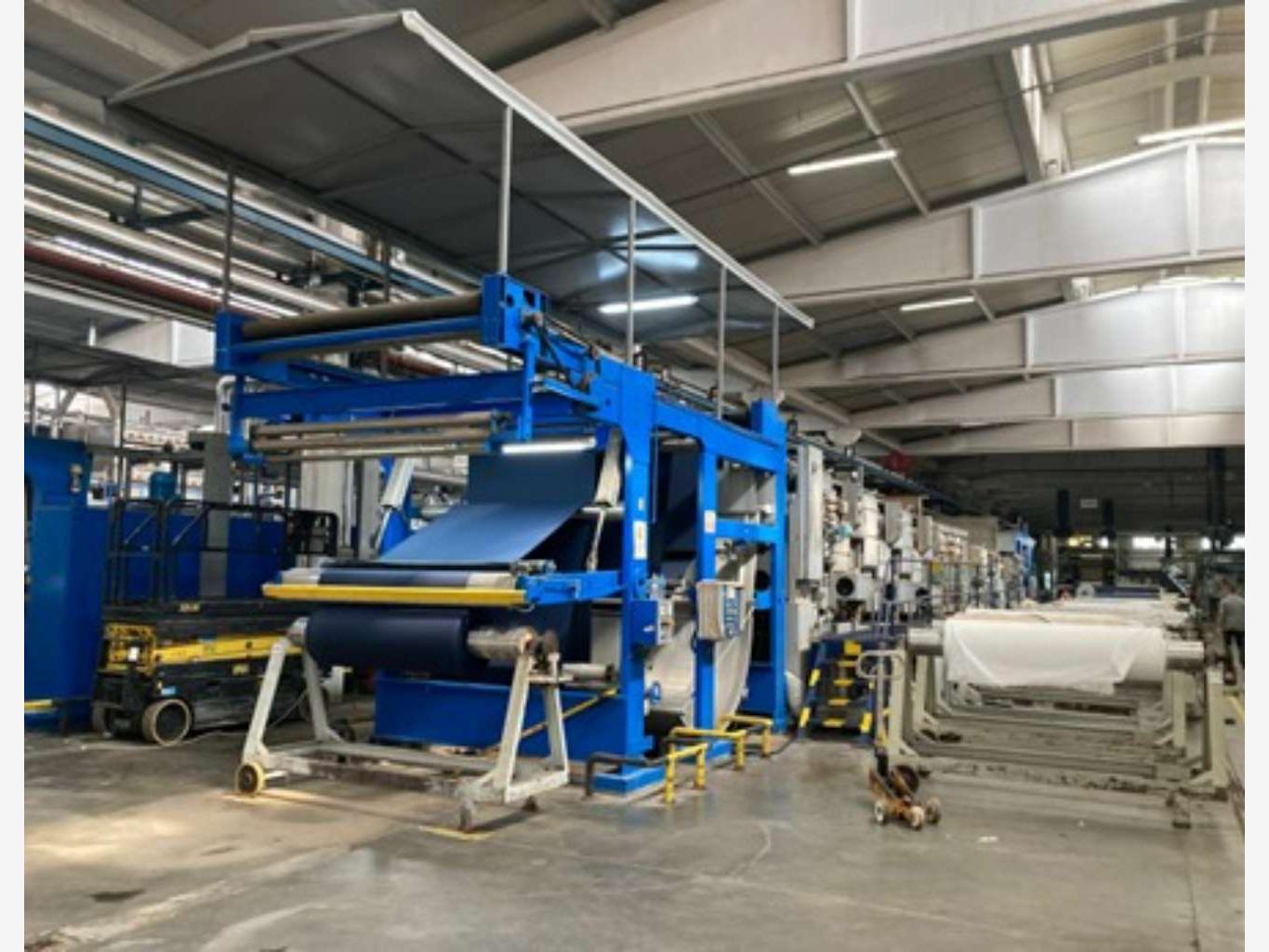

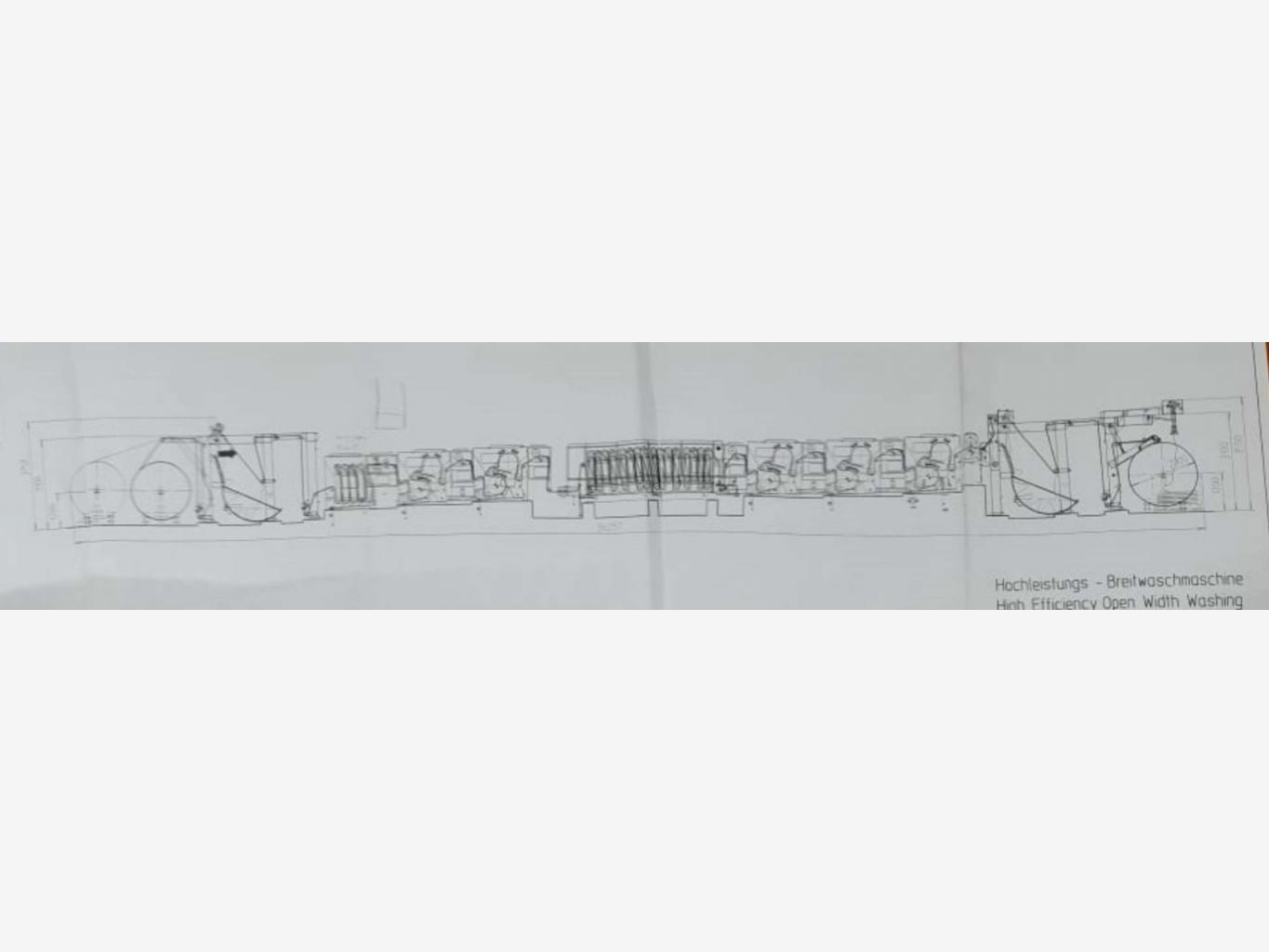

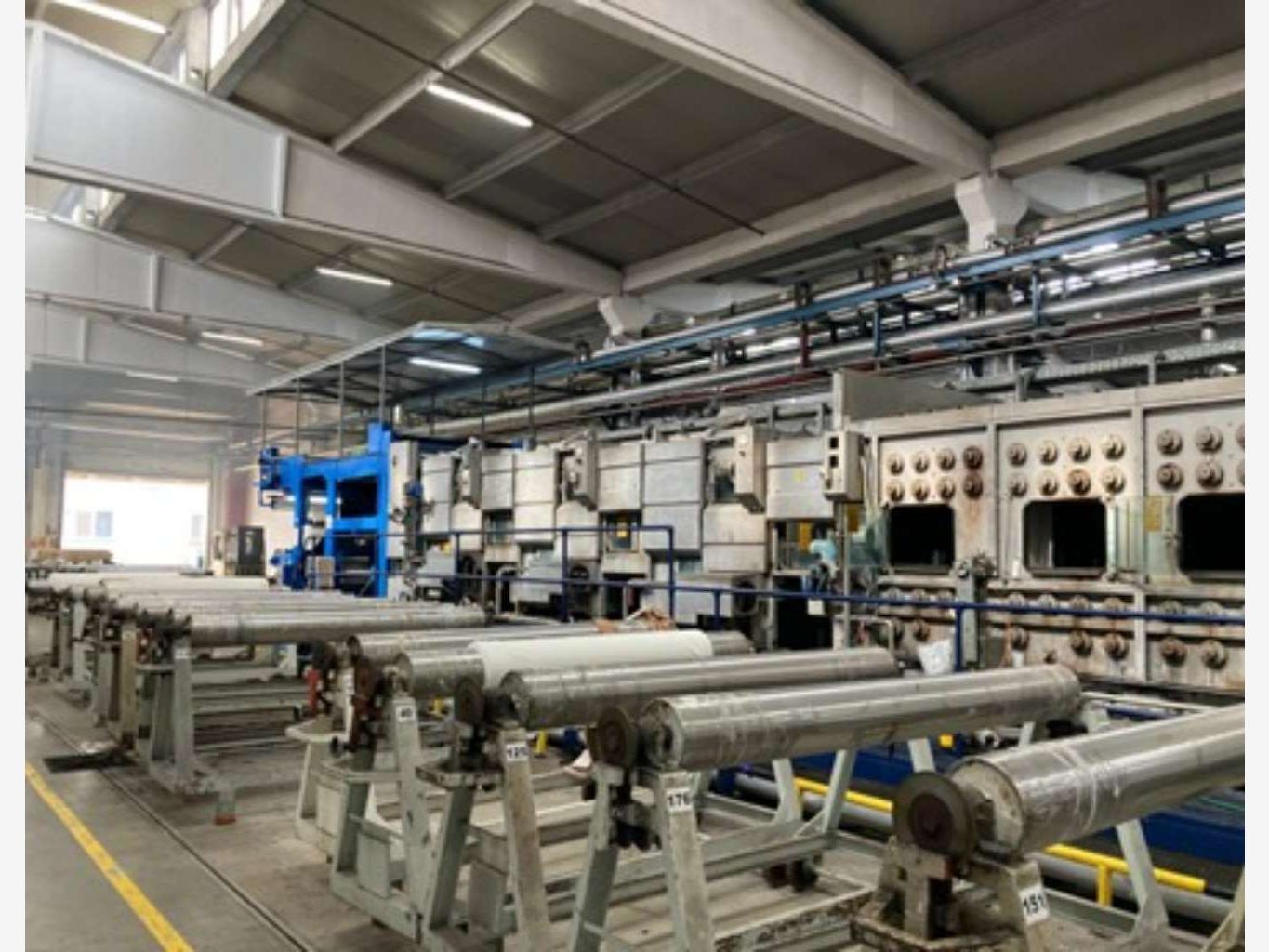

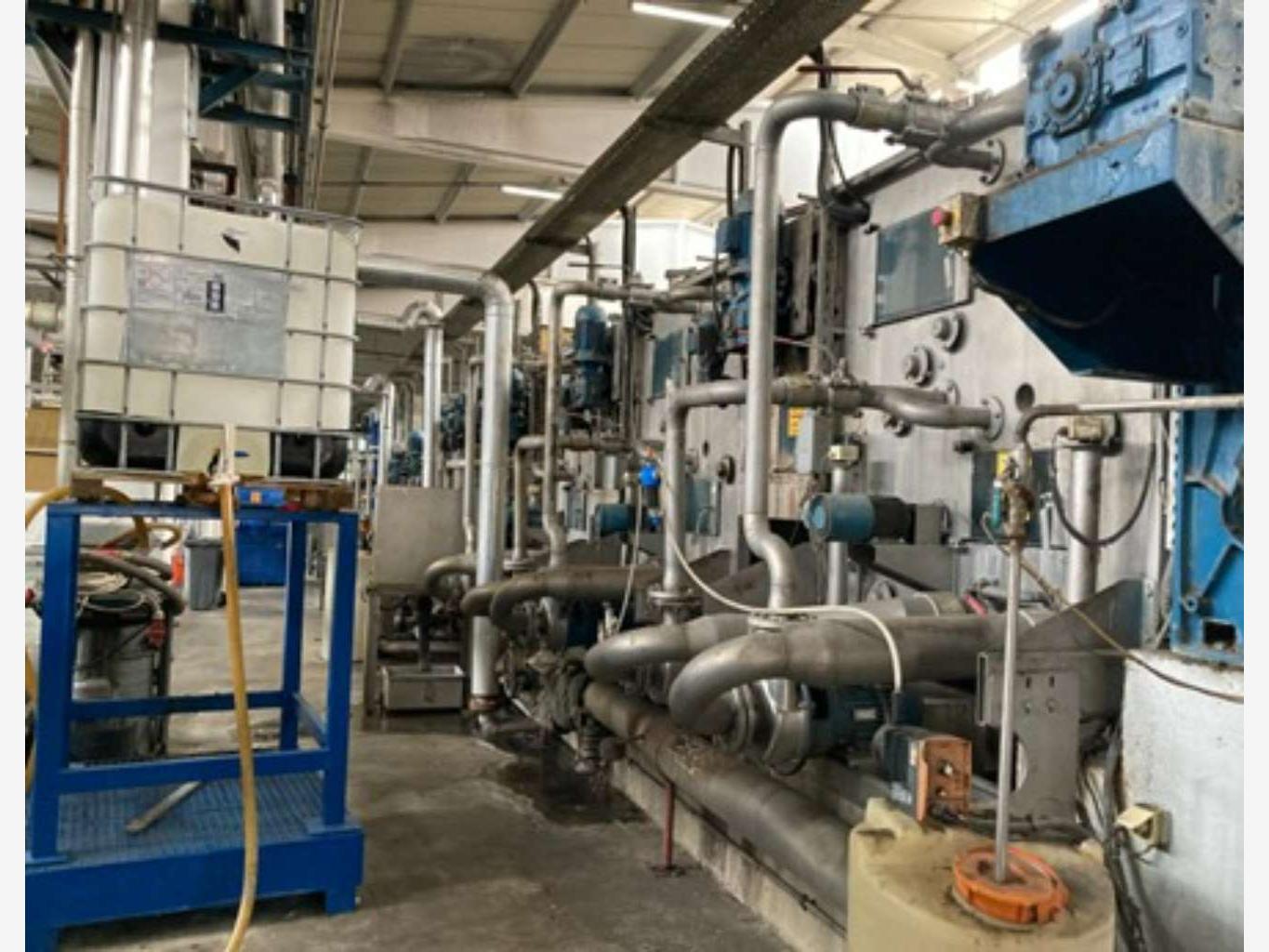

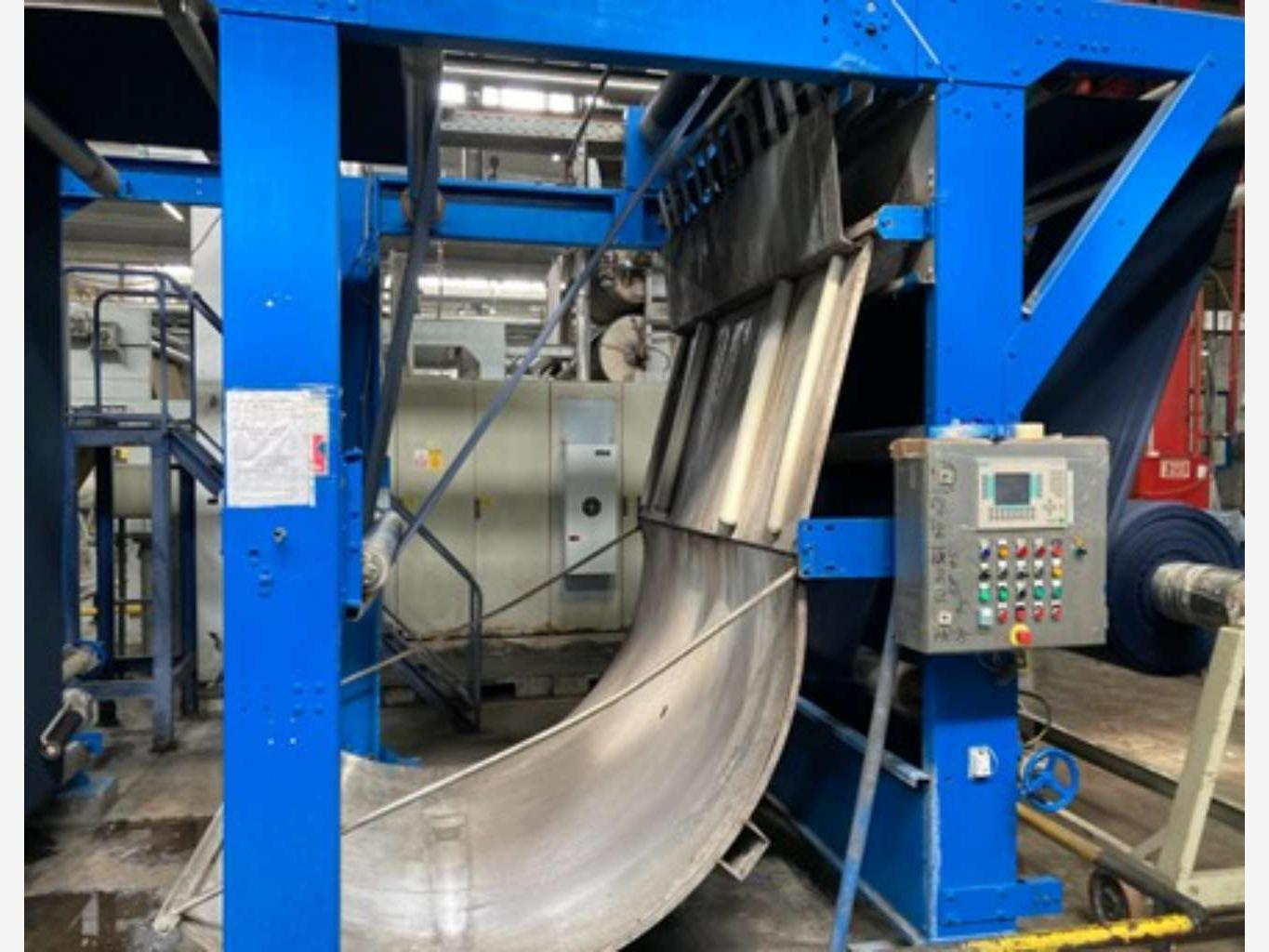

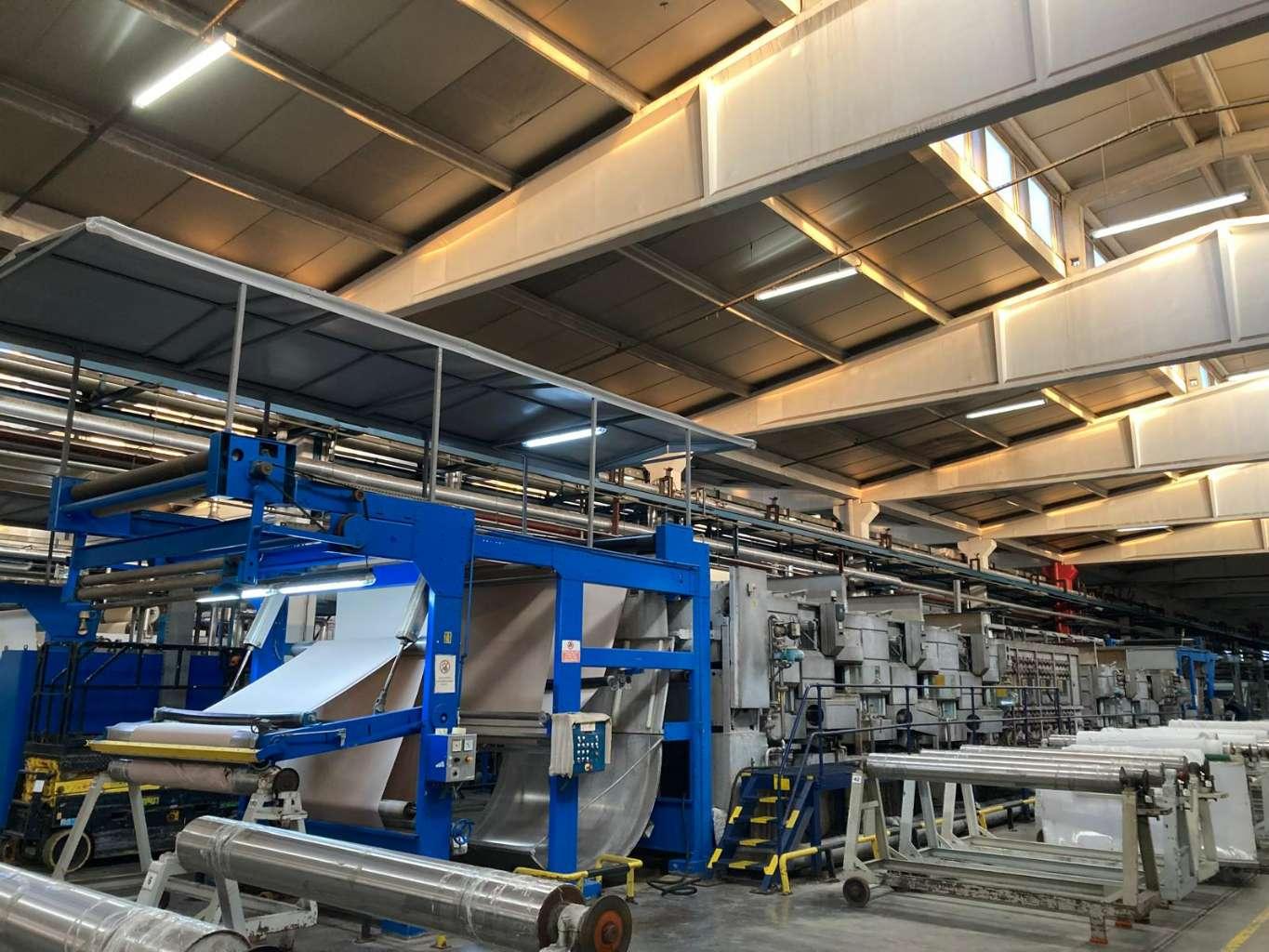

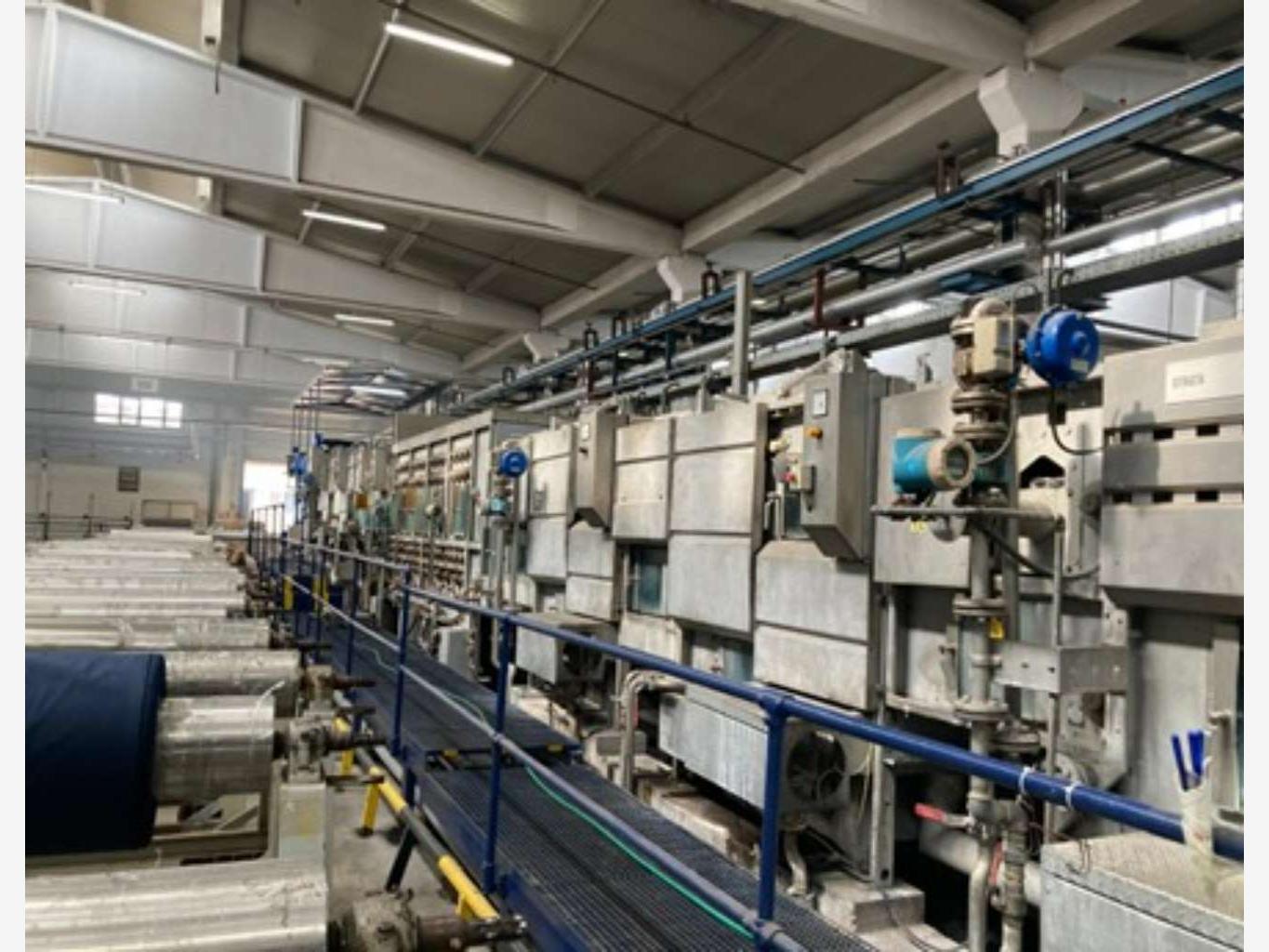

BENNINGER WASH RANGE FOR WOVEN FABRIC, YEAR 2003

ROLLER WIDTH 2.200 MM

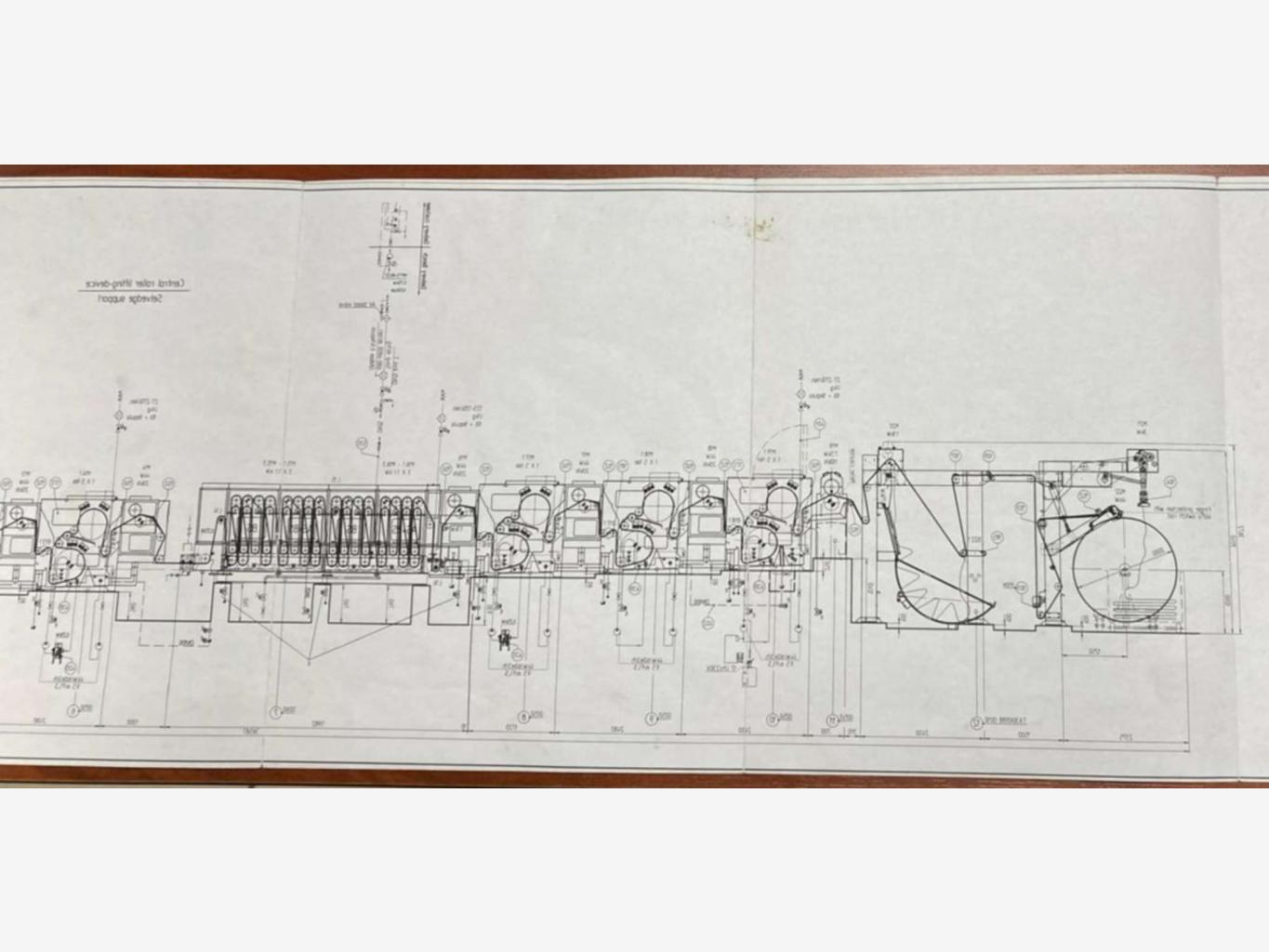

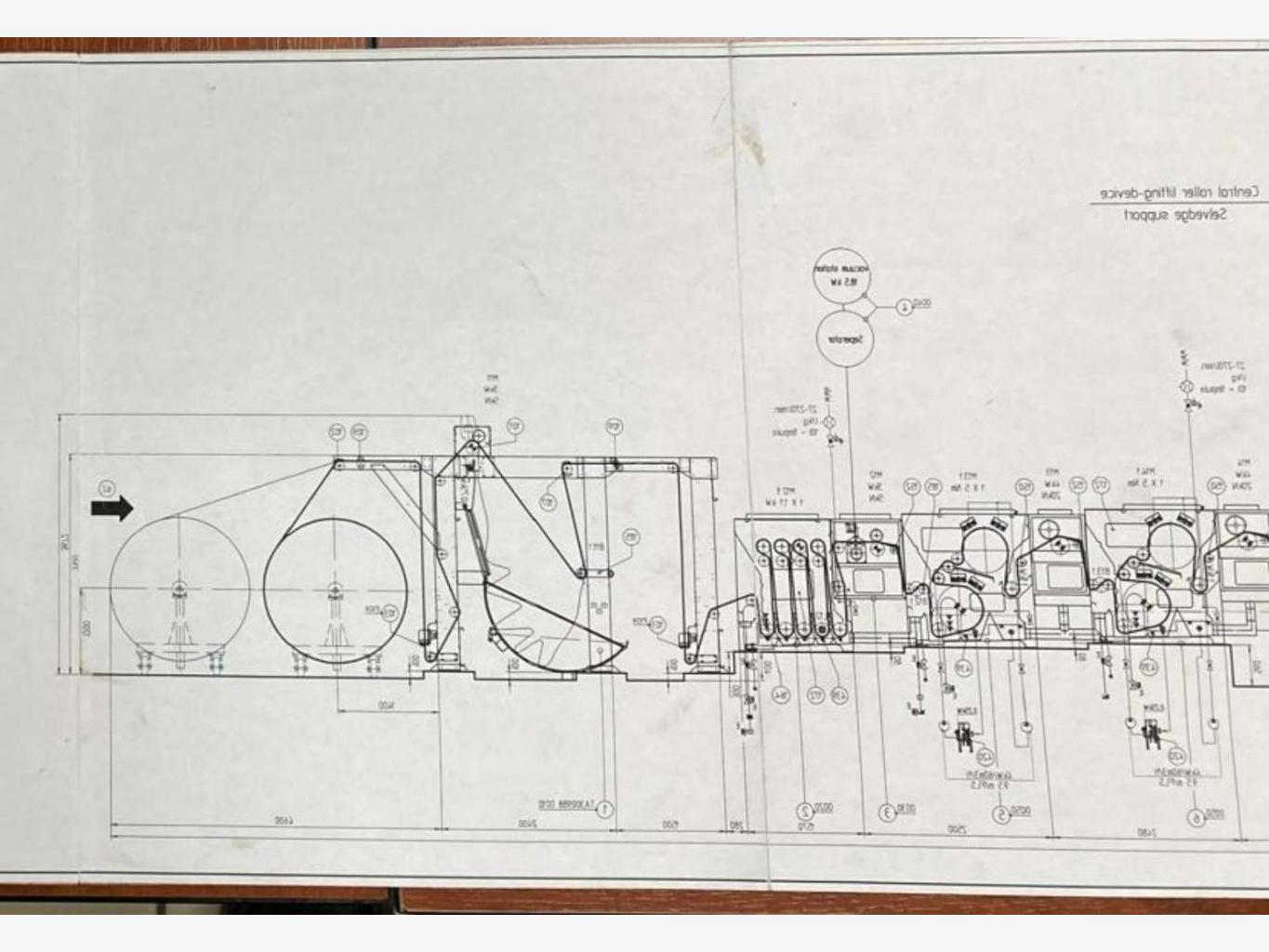

7 TANKS: 5 DRUM TYPE TANKS AND 2 TIGHT STRANDS TYPE

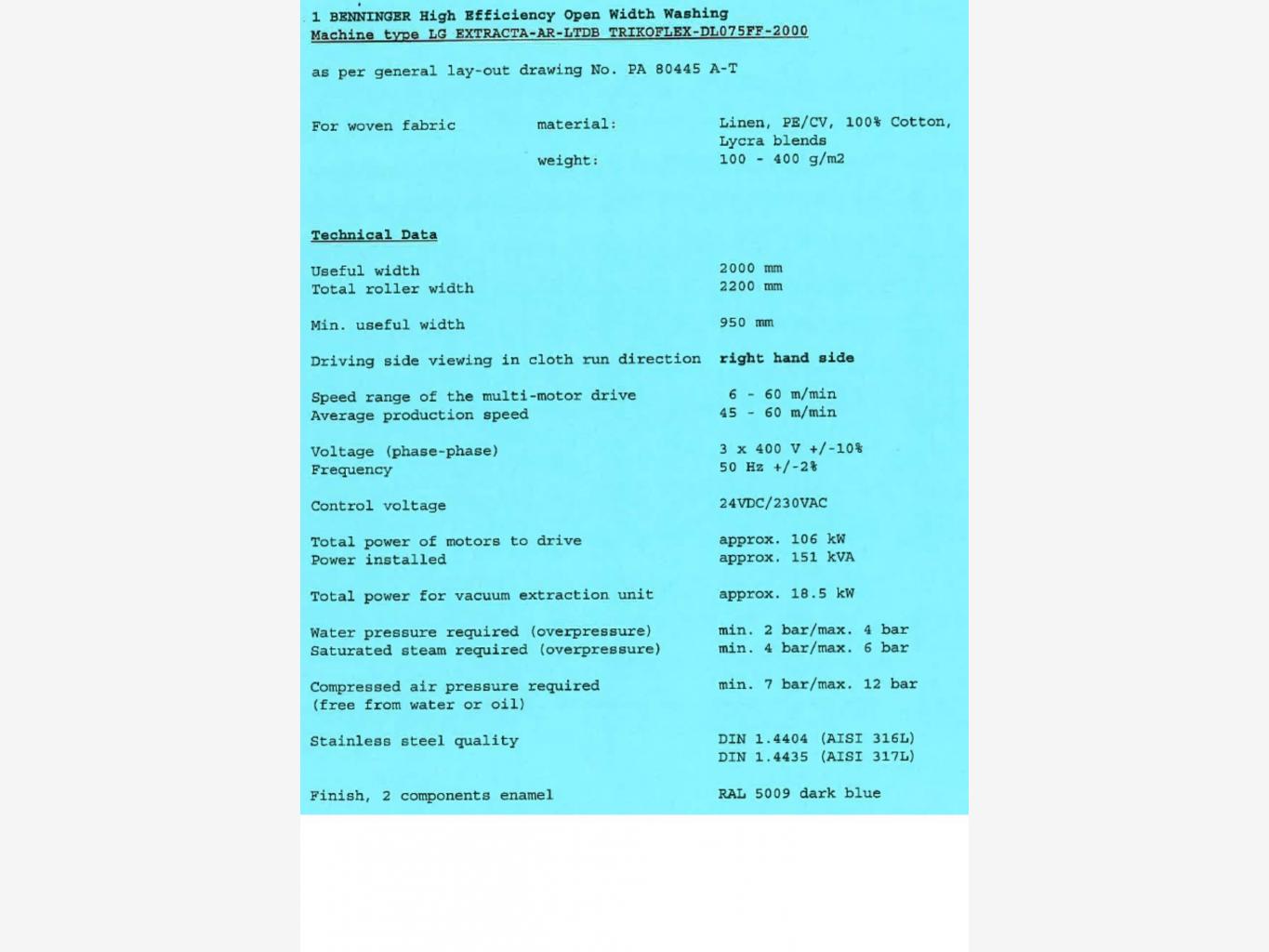

Material: linen, PE/CV, %100 Cotton, Lycra blends,
Weight: 100-400 g/m2

Working width: 2000 mm
Total roller width: 2200 mm

Min. working width: 950 mm

Speed range of the multi-motor drive: 6-60 m/min
Average production speed: 45-60 m/min

Voltage (phase-phase): 3 x 400 V +/-10%
Frequency: 50 Hz +/- 2%

Water pressure required (overpressure): min. 2 bar/max. 4 bar
Saturated steam required (overpressure): min. 4 bar/max. 6 bar

Compressed air pressure required: min. 7 bar /max. 12 bar

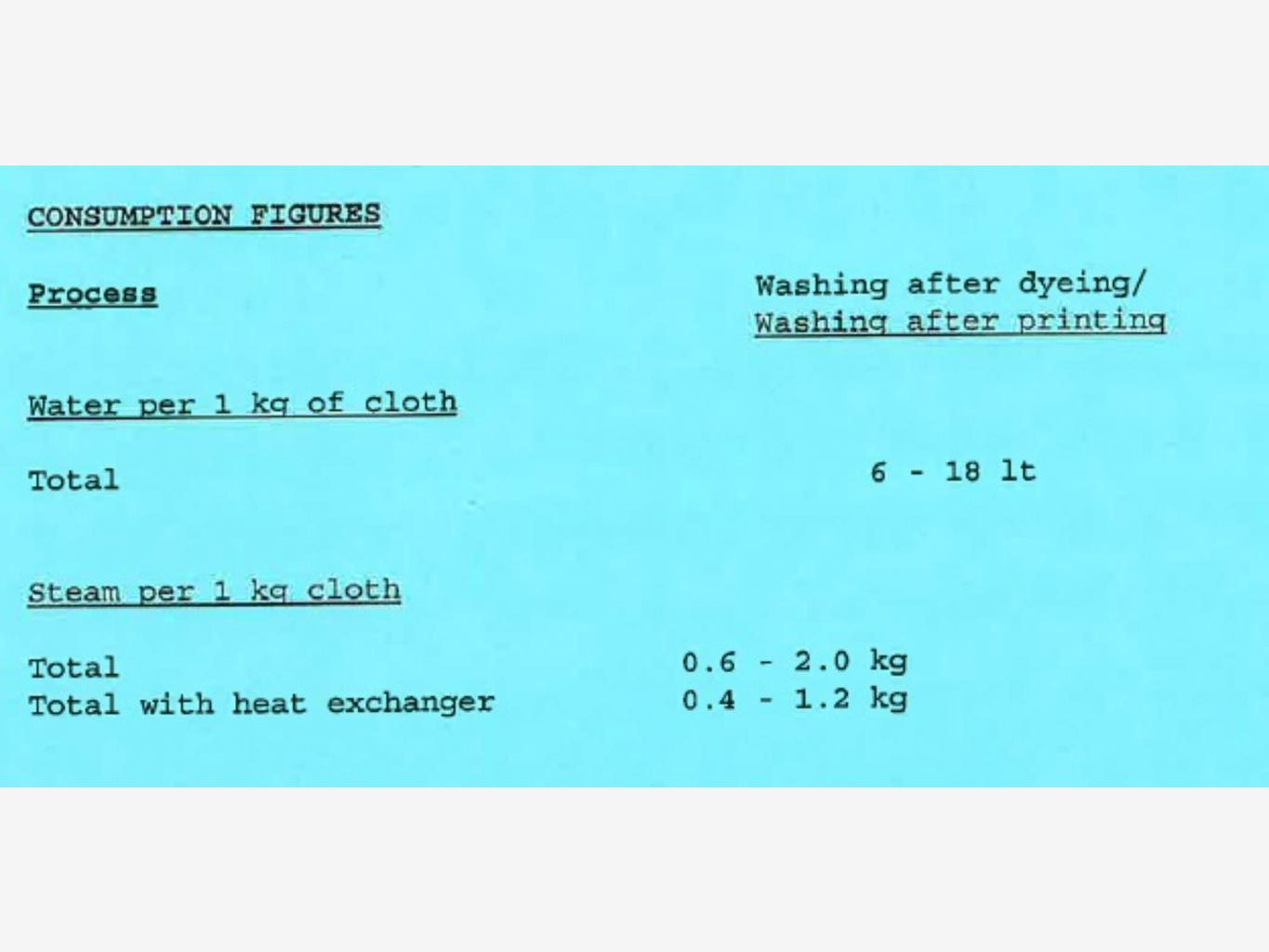

Water per 1 kg of cloth
Total: 6-18 lt

Steam per 1 kg cloth
Total: 0.6-2.0 kg
Total with heat exchanger: 0.4 - 1.2 kg
