MCS JIG DYEING AT Year 1989 Roller Width 3,400 mm

  • Brand : MCS
  • Year : 1989
  • Roller Width : 3400 mm
  • Diameter A : 1400 mm
  • Model : TYPE MAXI JIGGER 3400.
  • Working width : 3200 mm
  • Diameter Maximum : 1400 mm
  • Type of Drive : Electronic
  • Used textile machine : Yes

Machine description

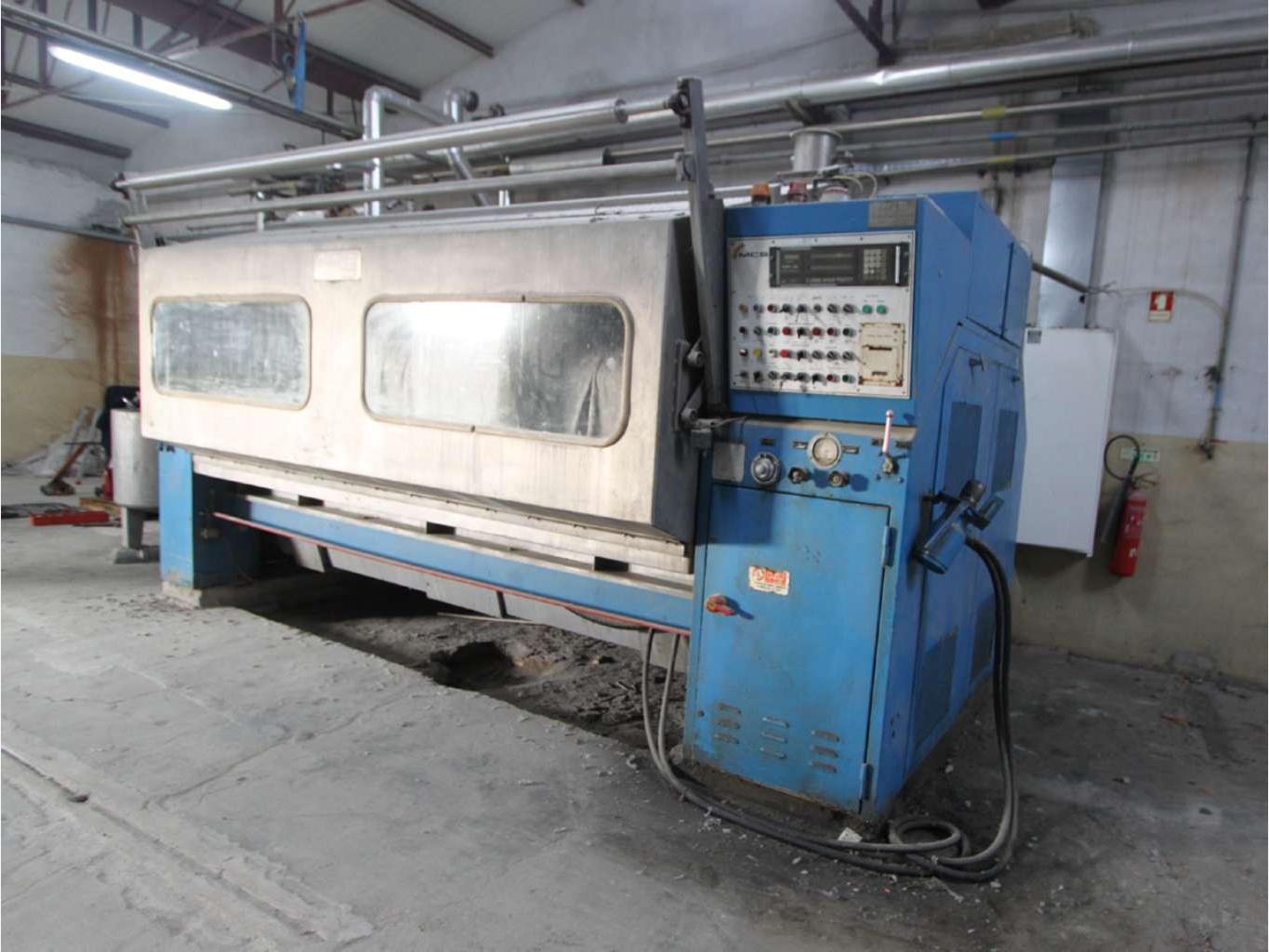

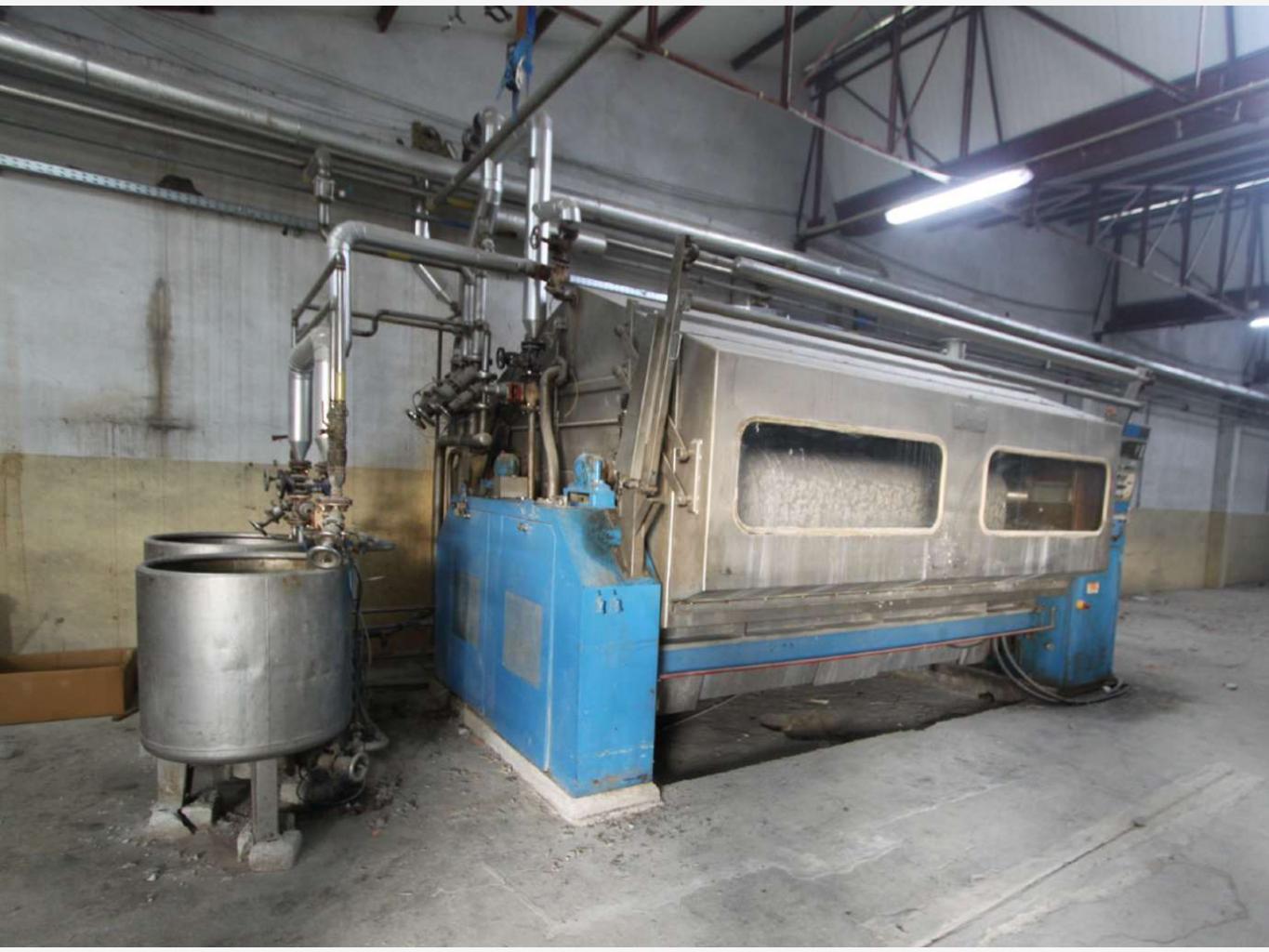

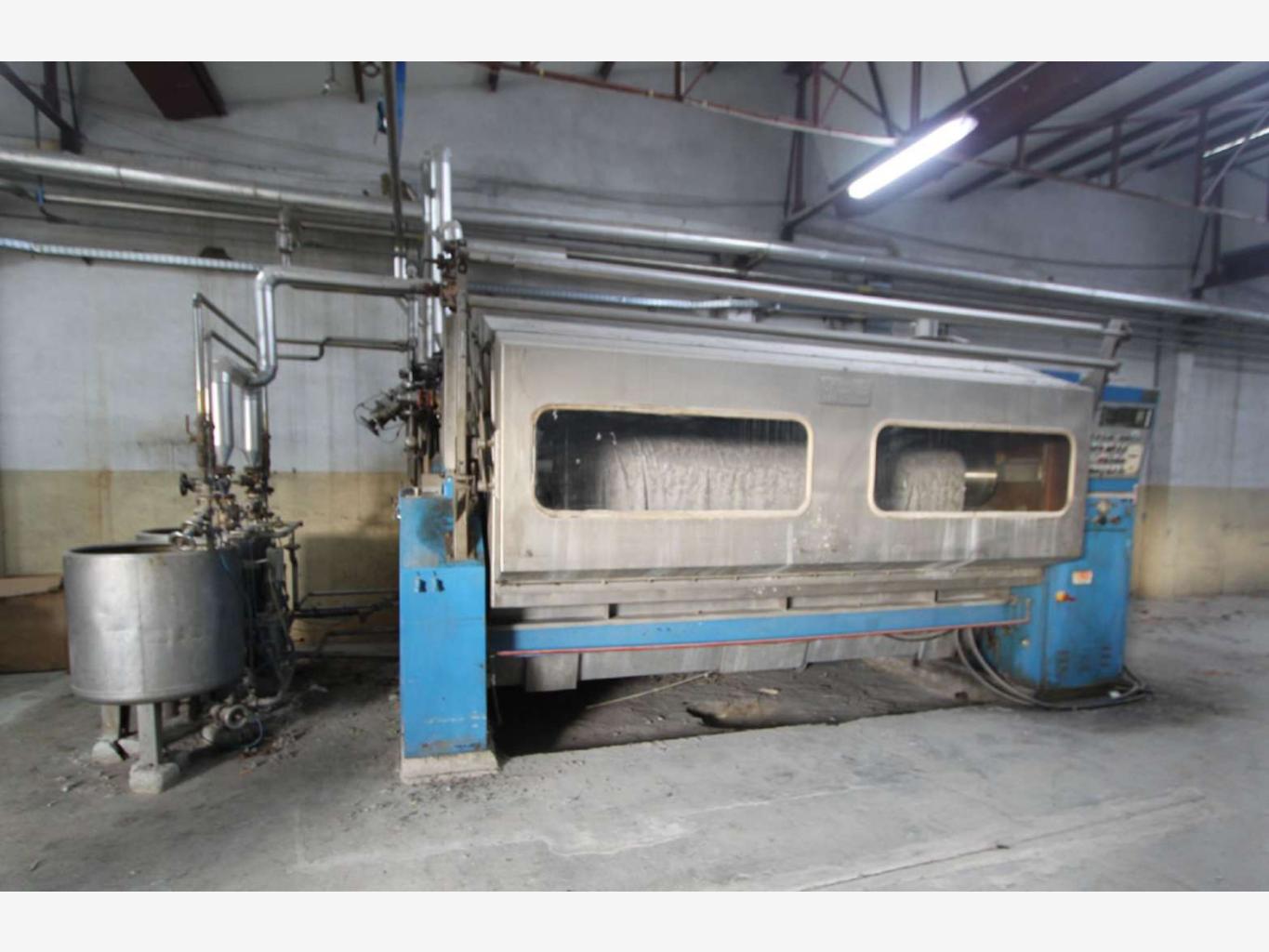

MCS HYDRAULIC DYEING JIGGER TYPE MAXI JIGGER 3400. YEAR 1989

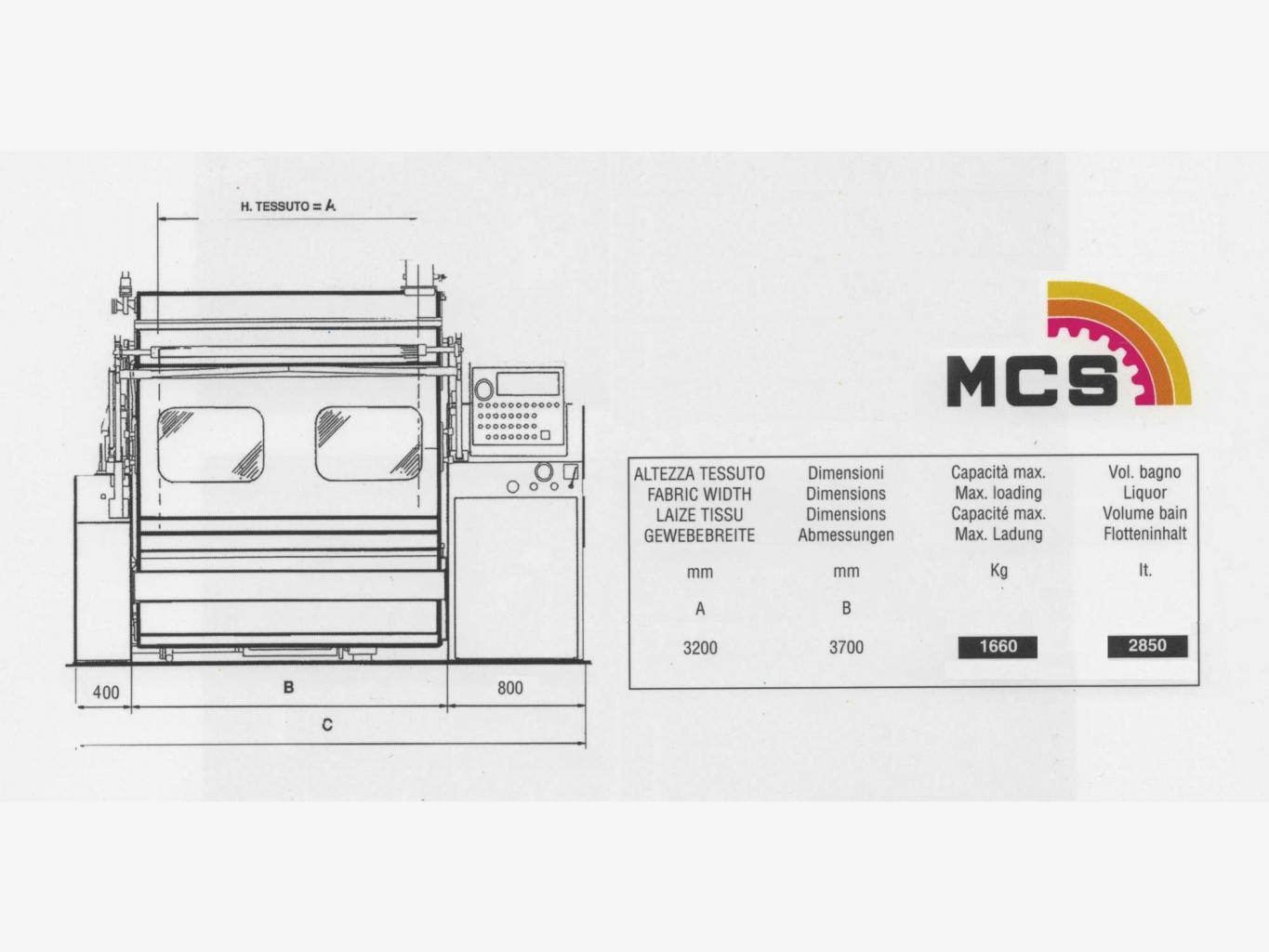

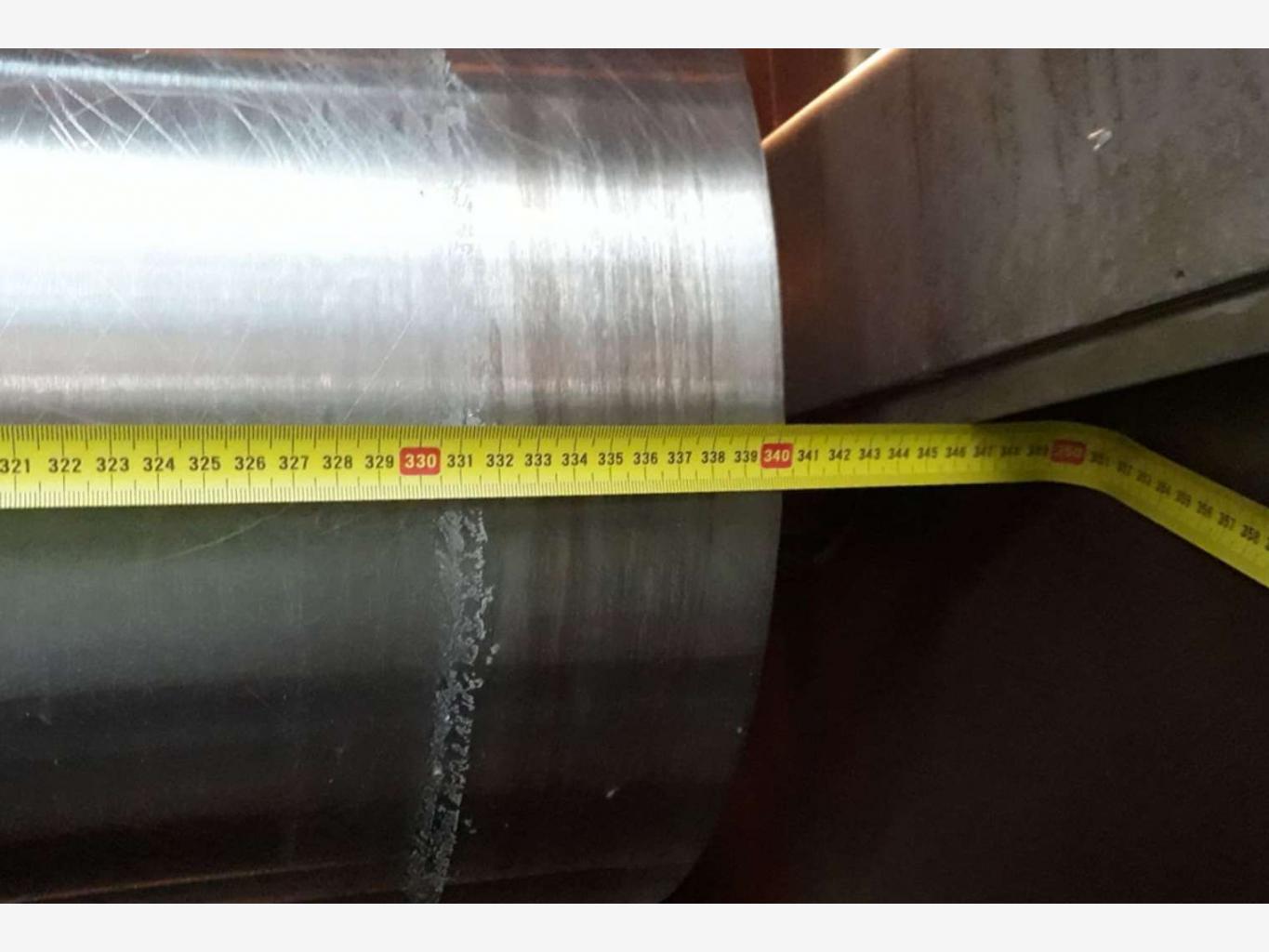

ROLLER WIDTH 3.400 MM, WORKING WIDTH 3.200 MM

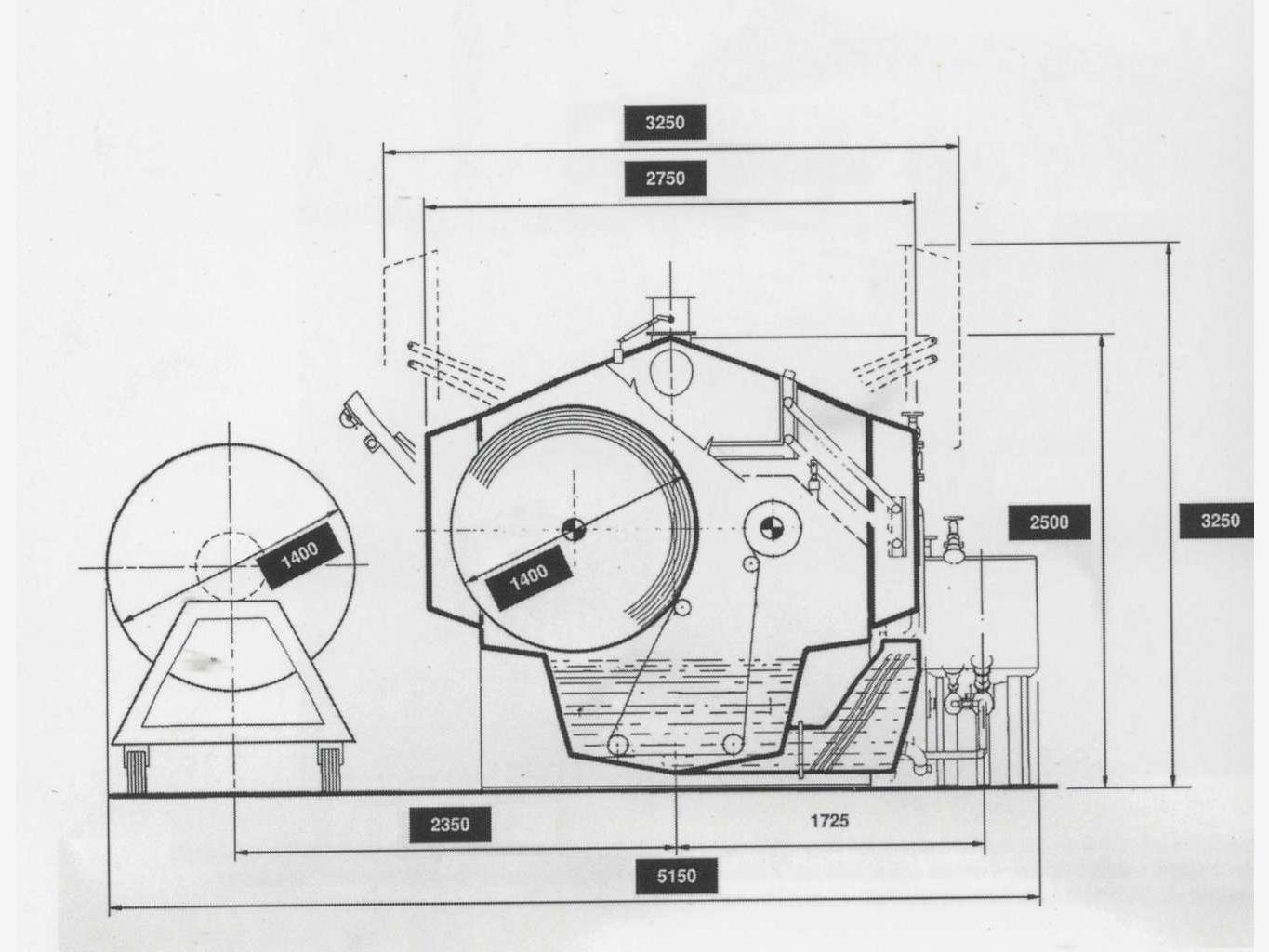

MAX. WINDING DIAMETER 1.400 MM

Max. dyeing temperature 98 ºC

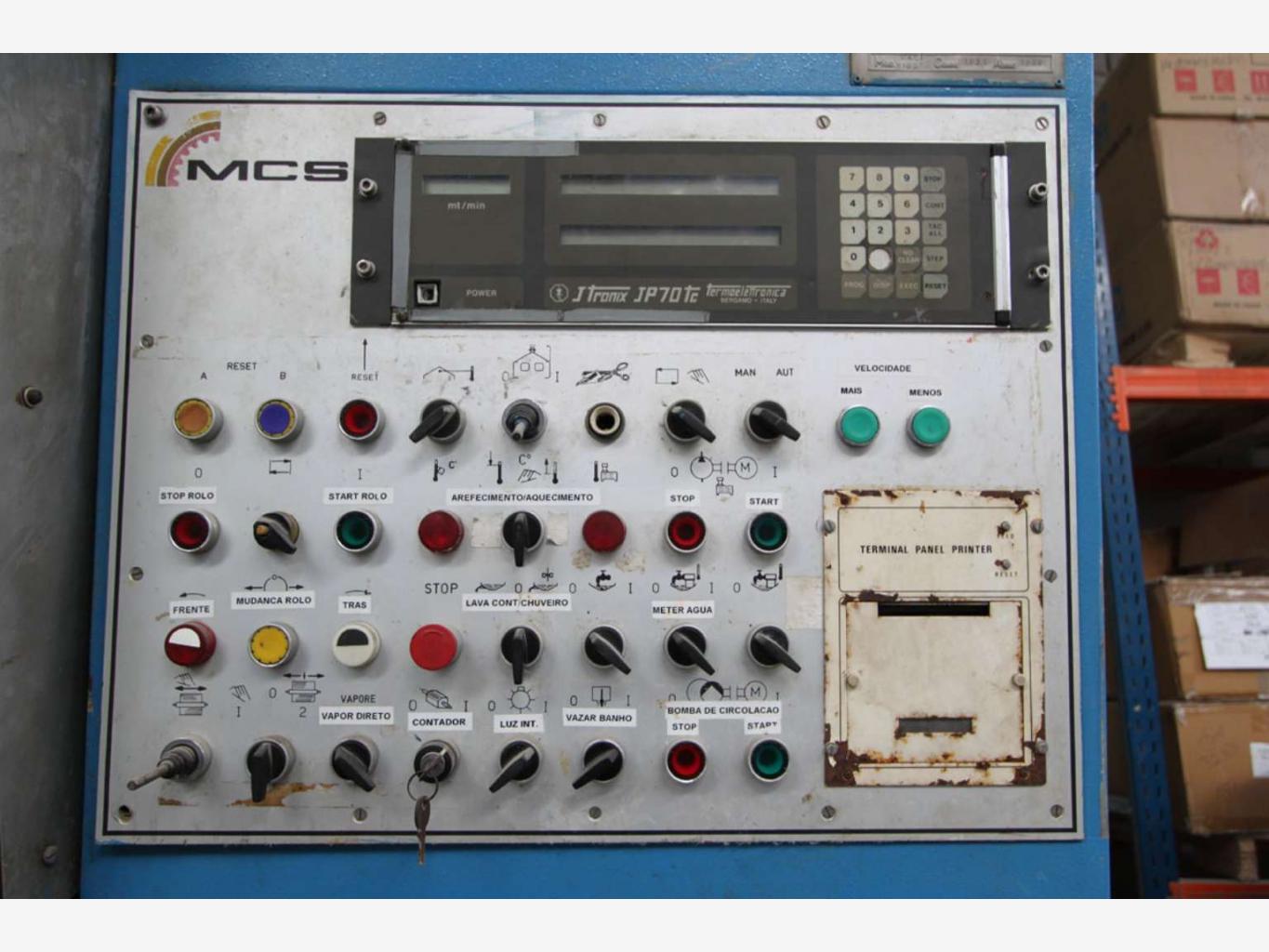

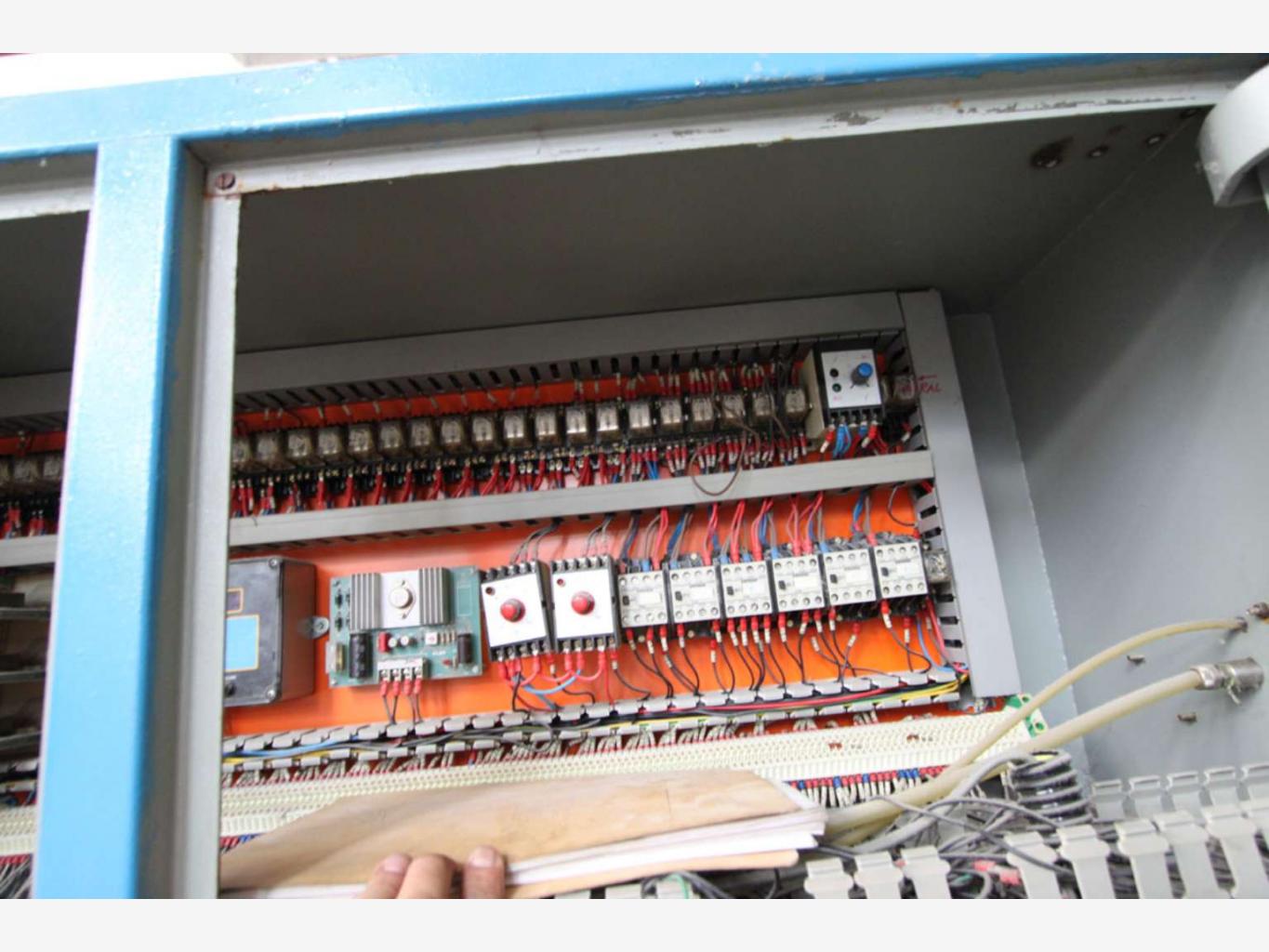

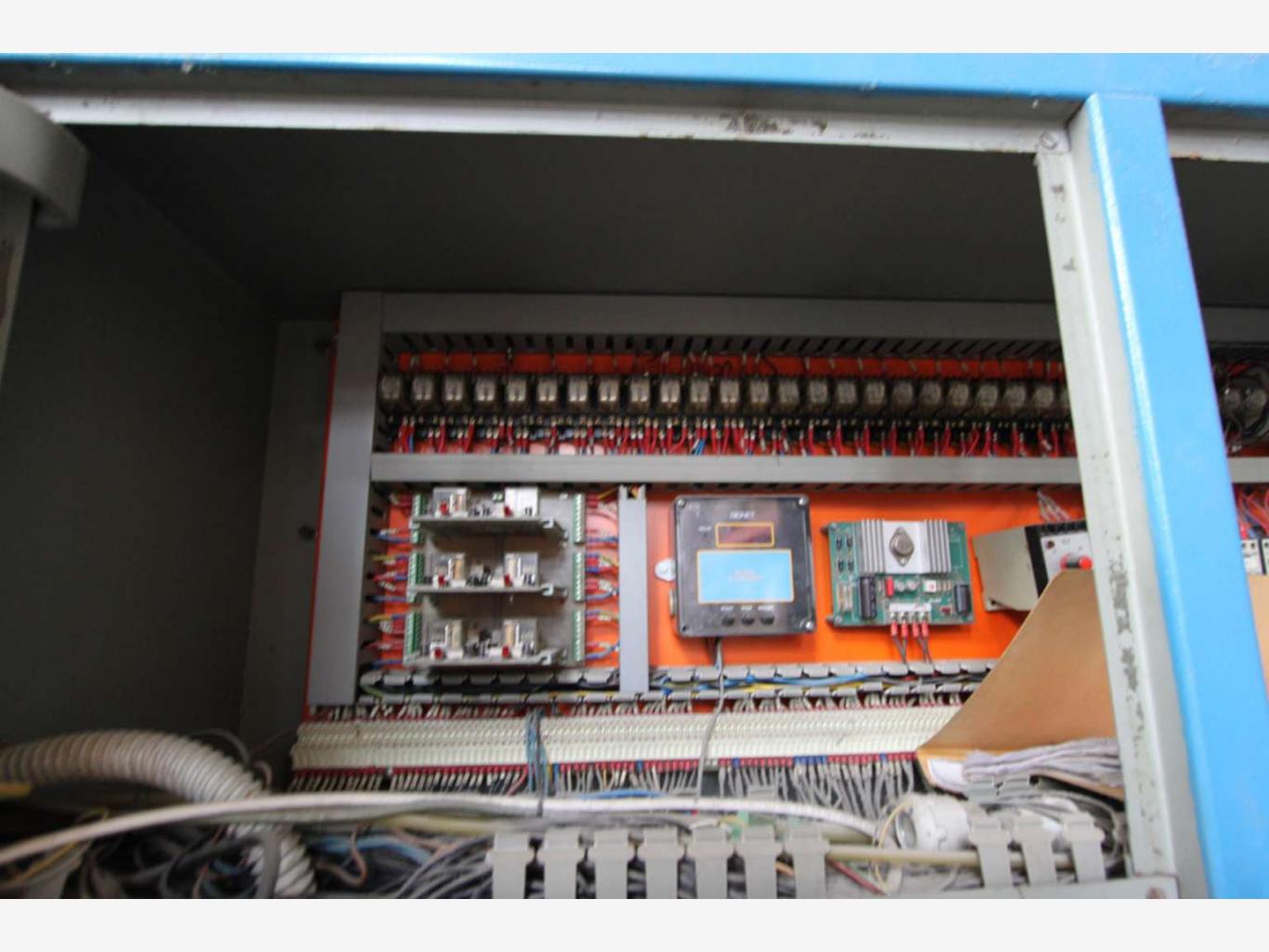

Dye cycle controller TERMOELETTRONICA type JTronix JP70tc

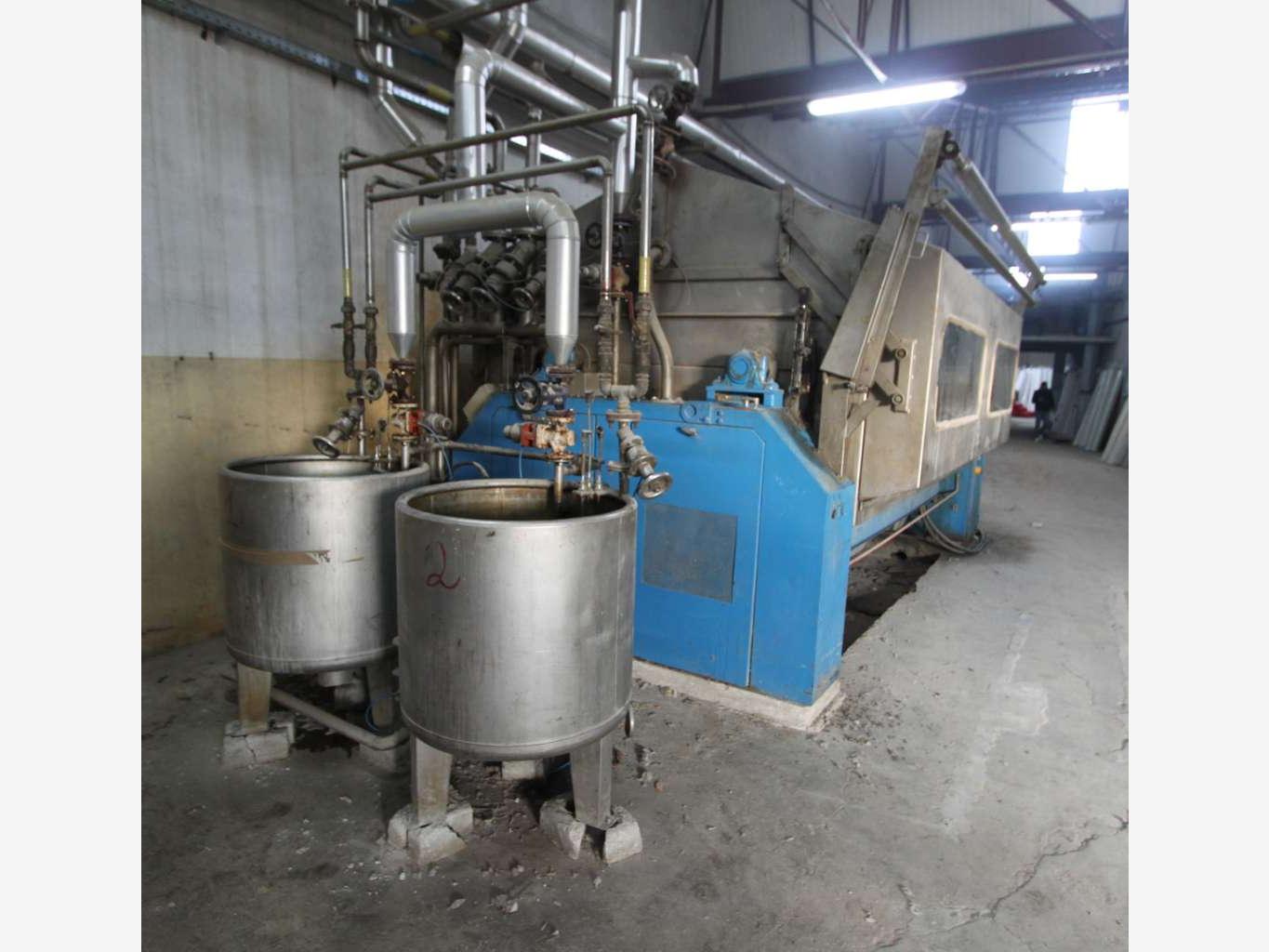

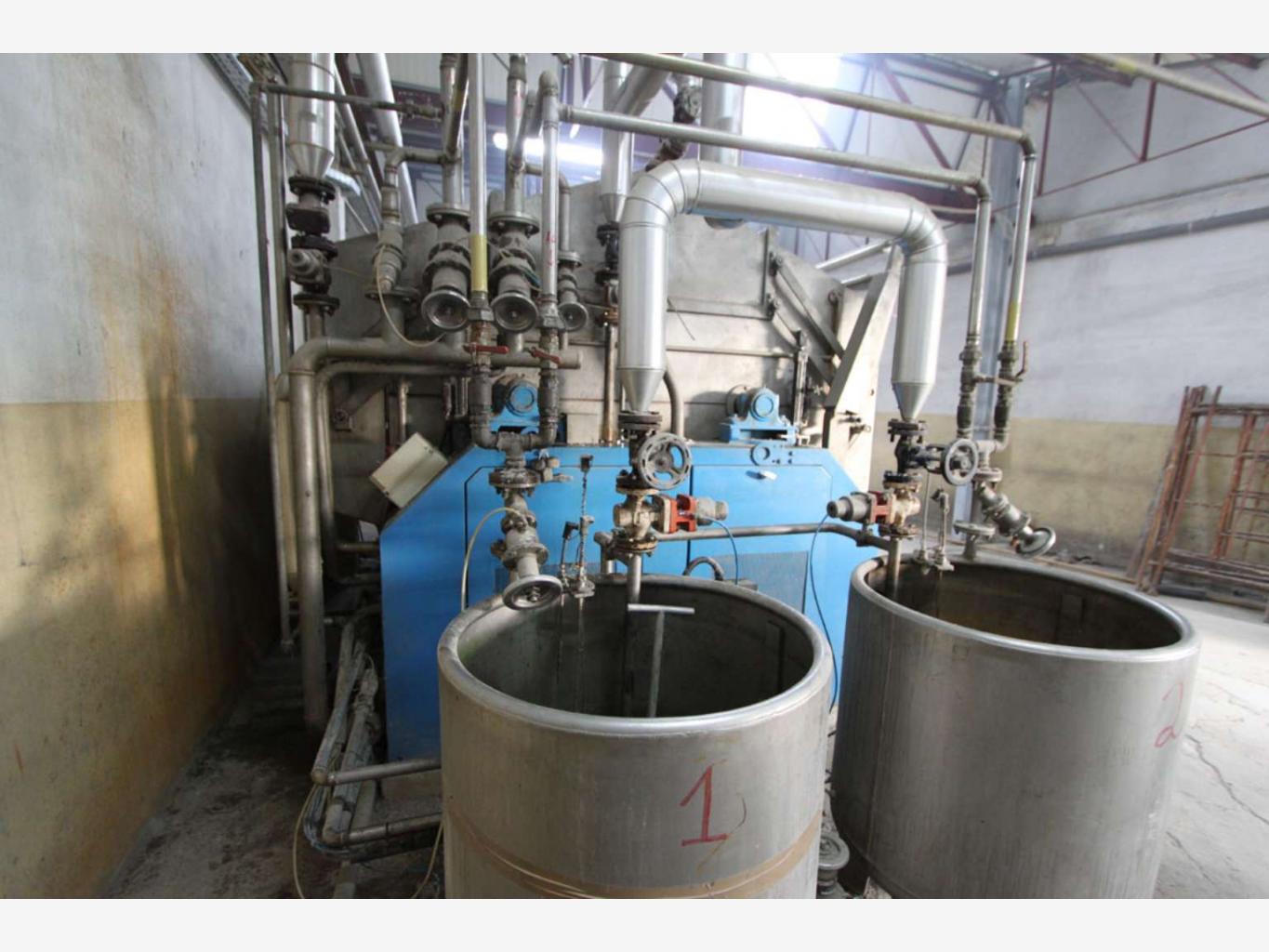

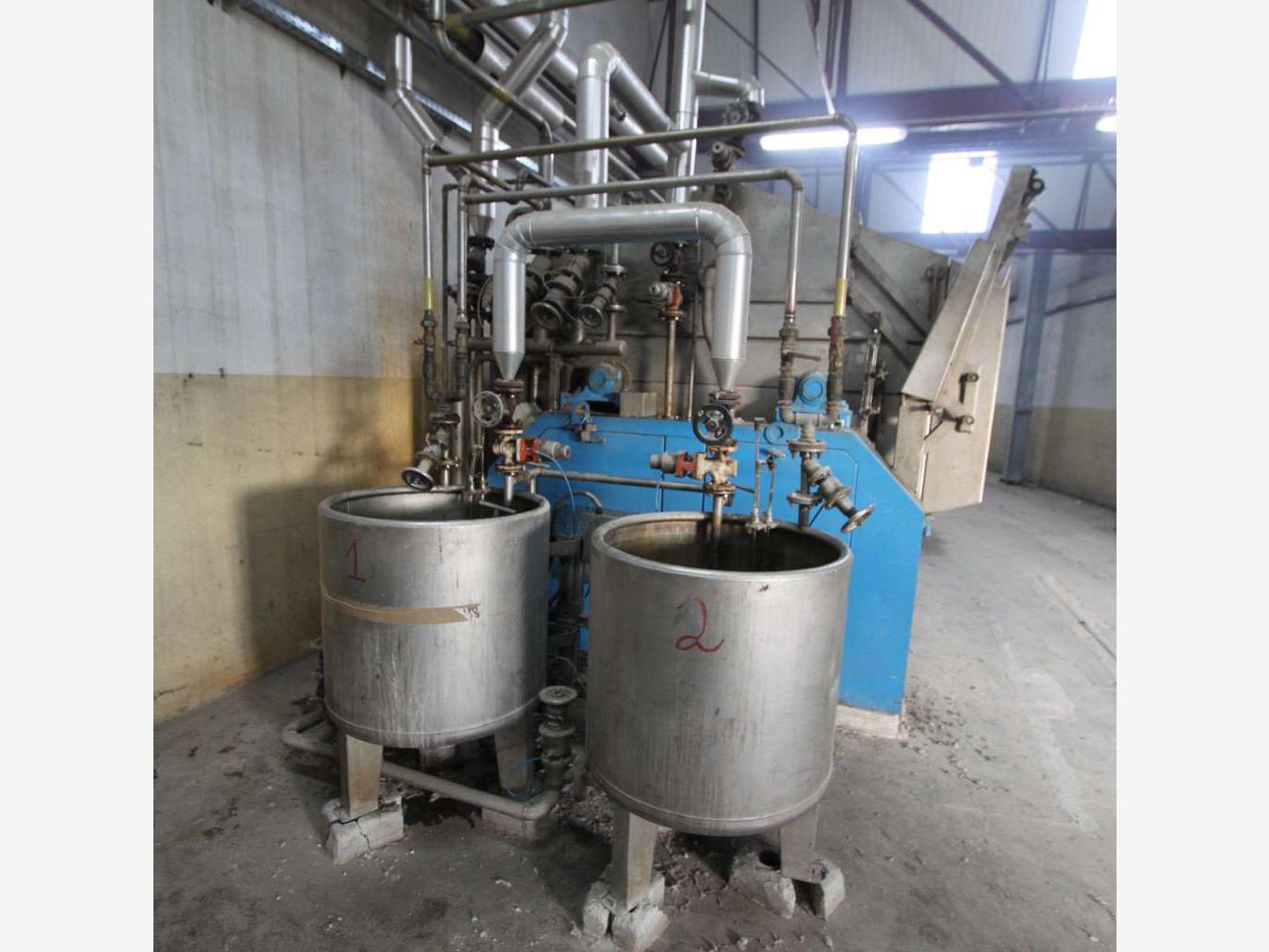

2 addition vats
Loading capacity in linear meters is calculated with the following formula 1400/fabric thickness in mm
Constant fabric speed for the whole batch adjustable from 15 to 150 m/min
Constant fabric tension for the whole batch adjustable from 10 to 60 Kg
Through entirely build in stainless steel AISI 316

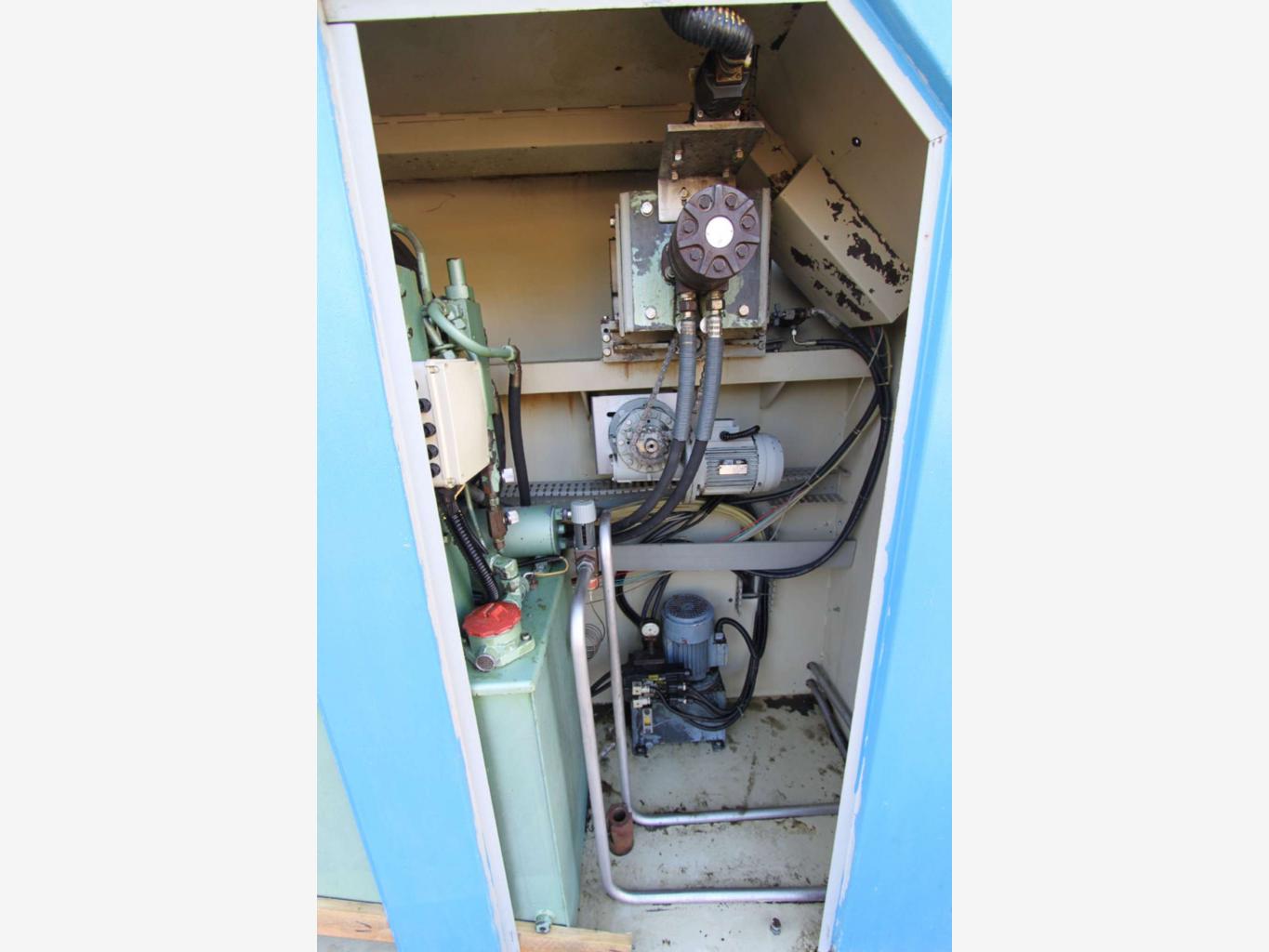

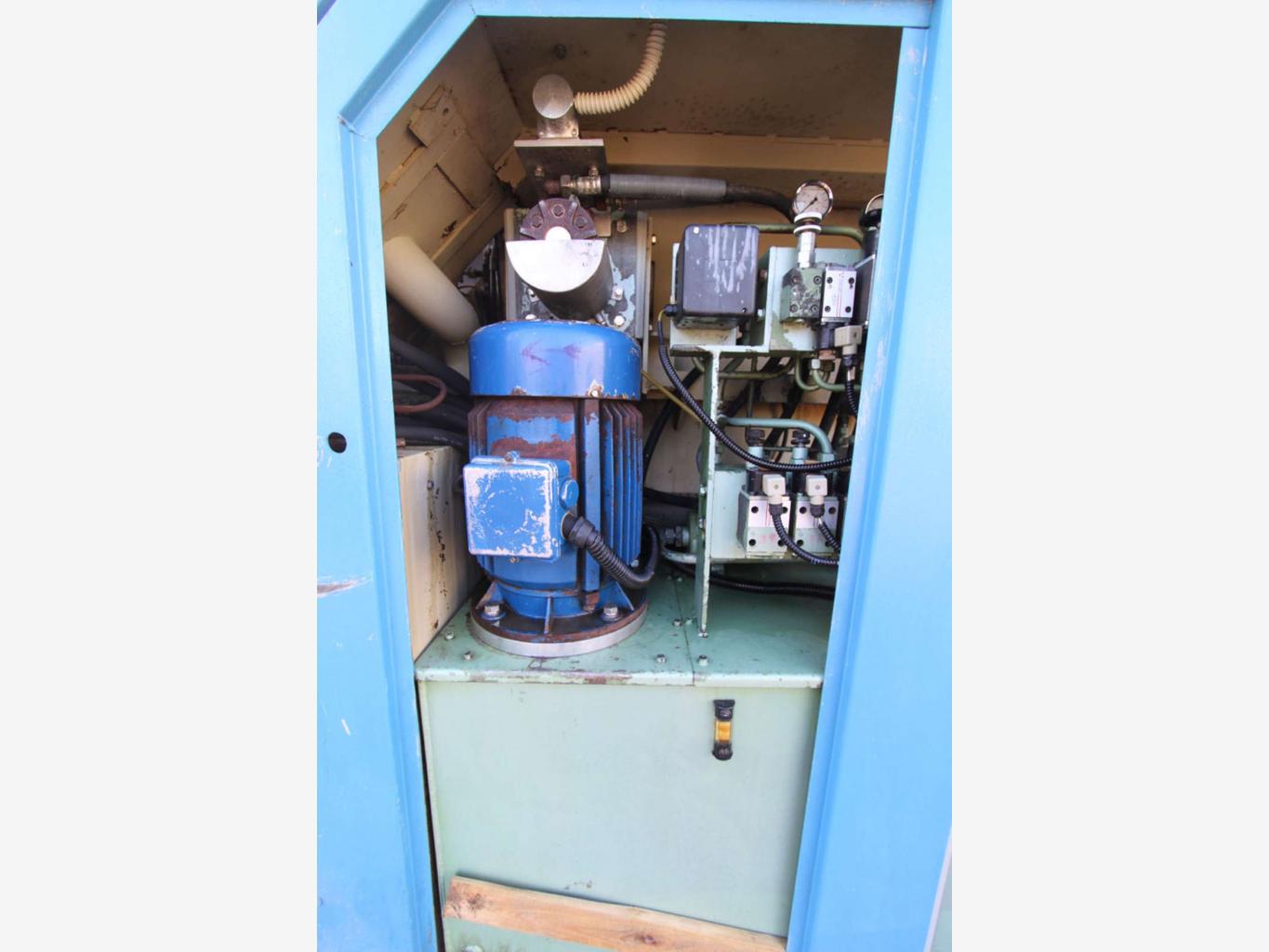

Doors with hydraulic lifting

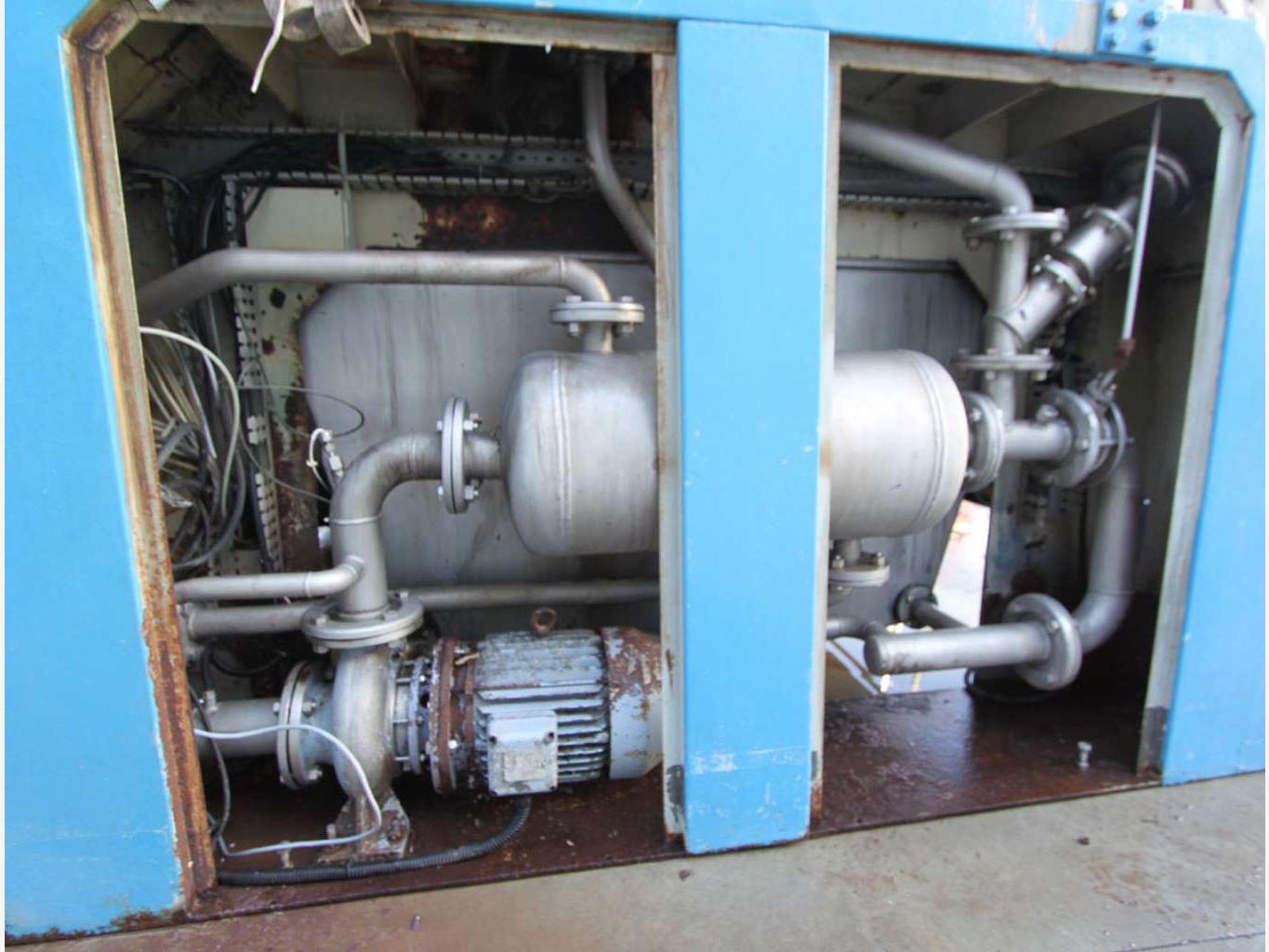

Indirect heating via external heat exchanger
Direct or indirect cooling
Hood with steam coils to prevent condensate dropping
