Machine description

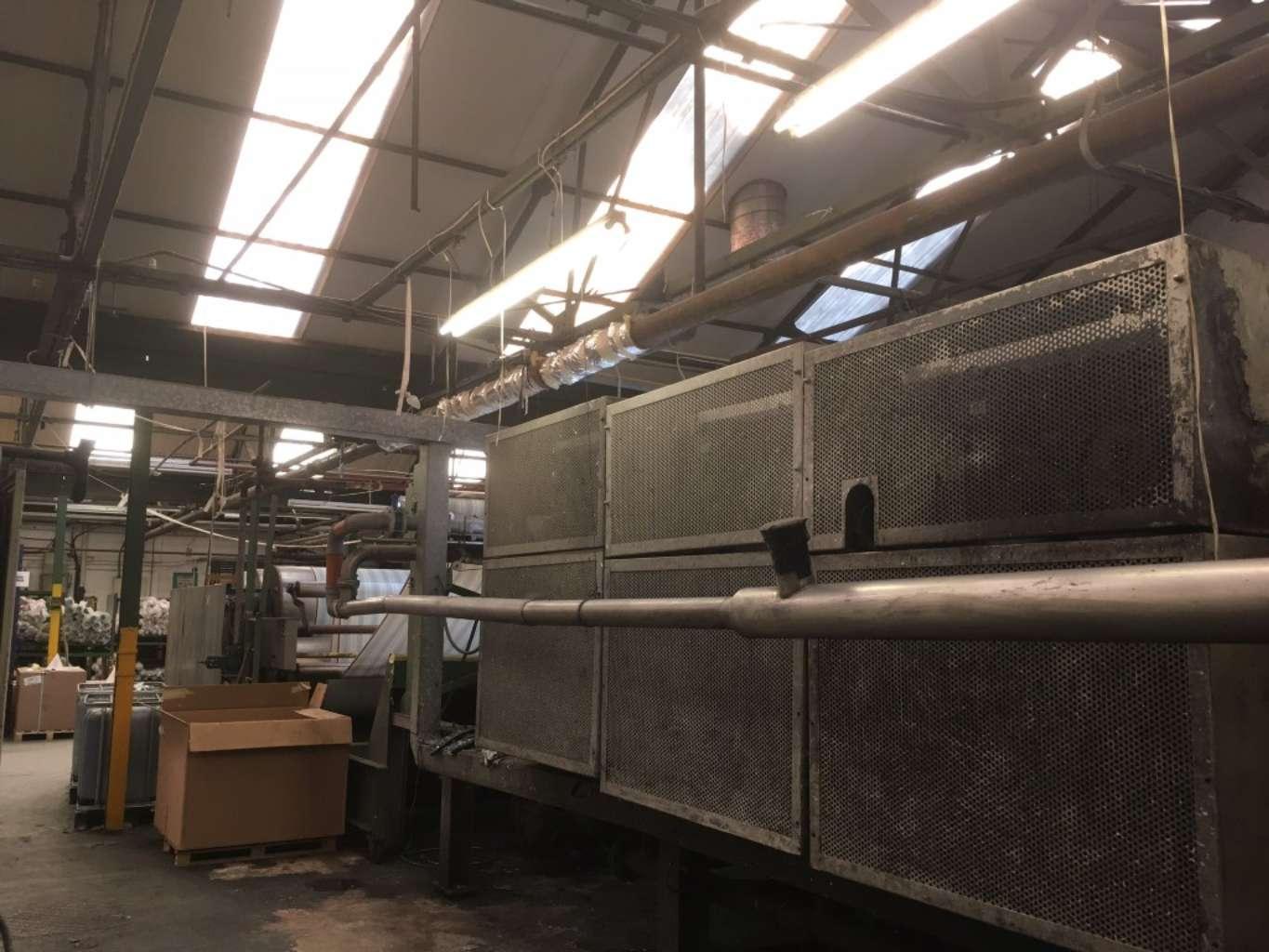

BABCOCK WASHING RANGE WOVEN, WW 2200 MM, YEAR 1998

BABCOCK OPEN WIDTH HIGH EFFICIENCY WASHING RANGE MODEL TRAFLOTEX.
AFTER PRINT WASHING OF LIGHT WEIGHT WOVEN FABRICS, KNITTED POLYESTER, & POLY COTTON FABRICS

RANGE CONSISTS OF:

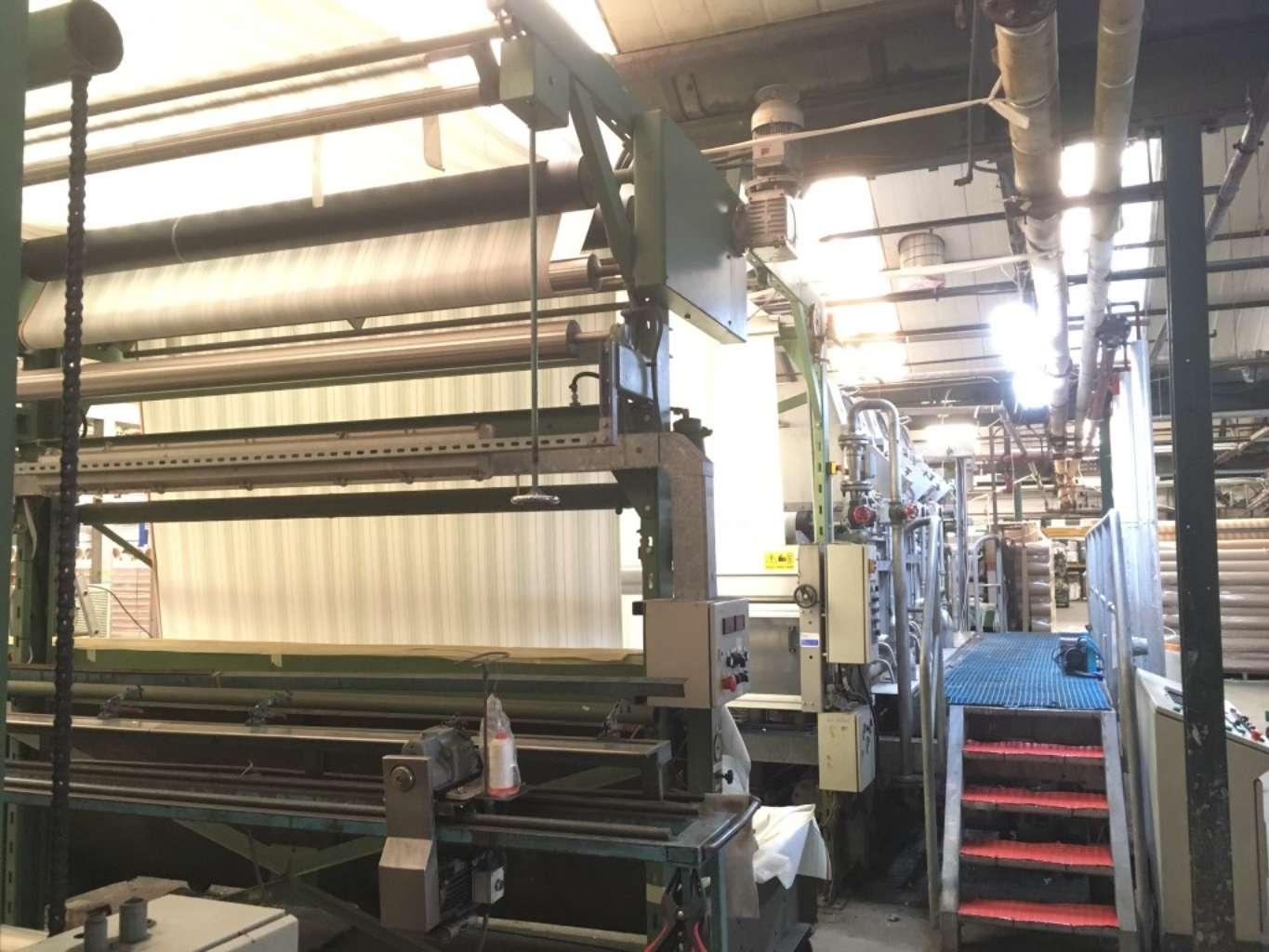

- HIGH FABRIC ENTRY WITH J SCRAY, FABRIC OPENERS, BIANCO COMPACT GUIDING SYSTEM

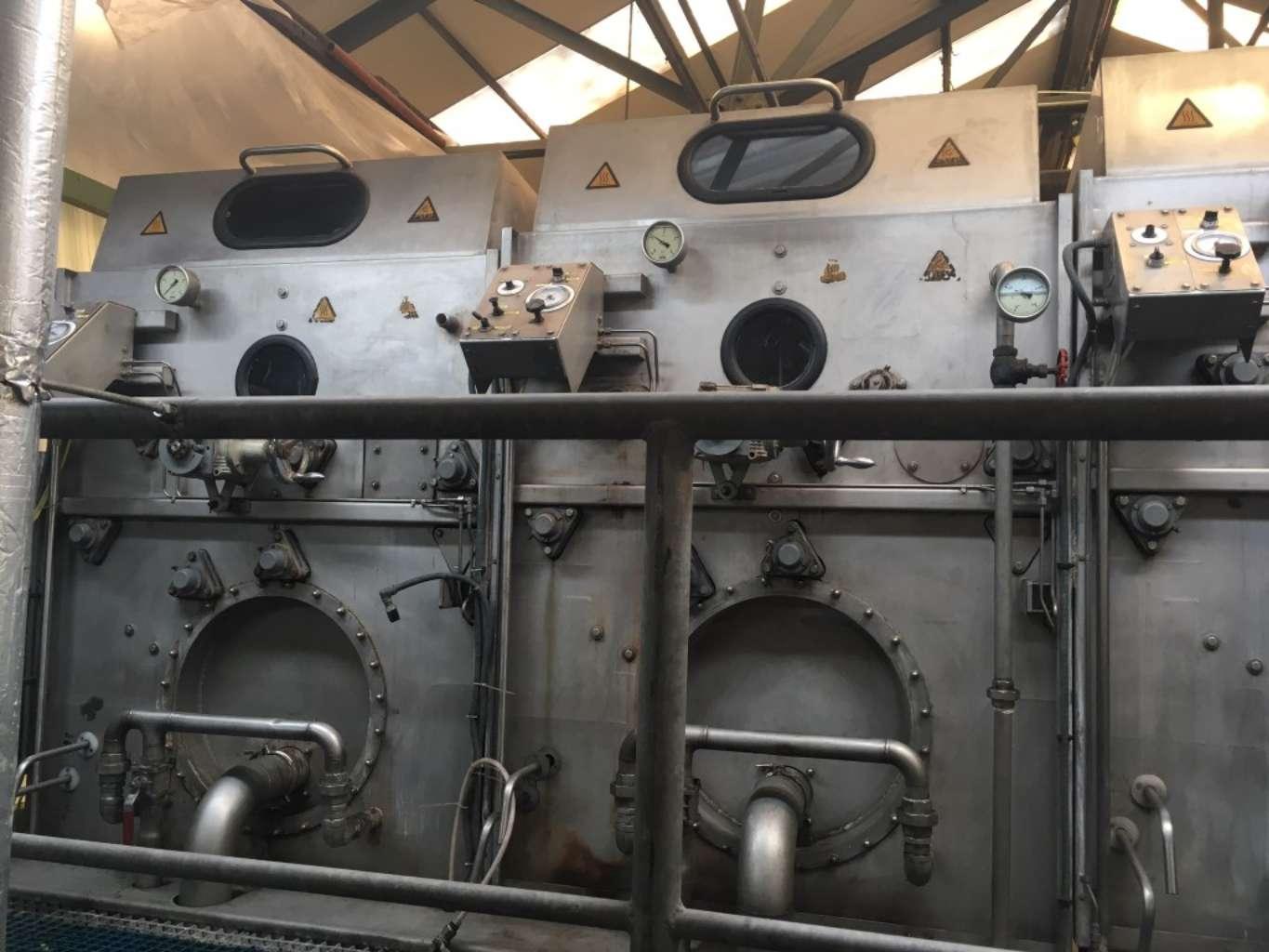

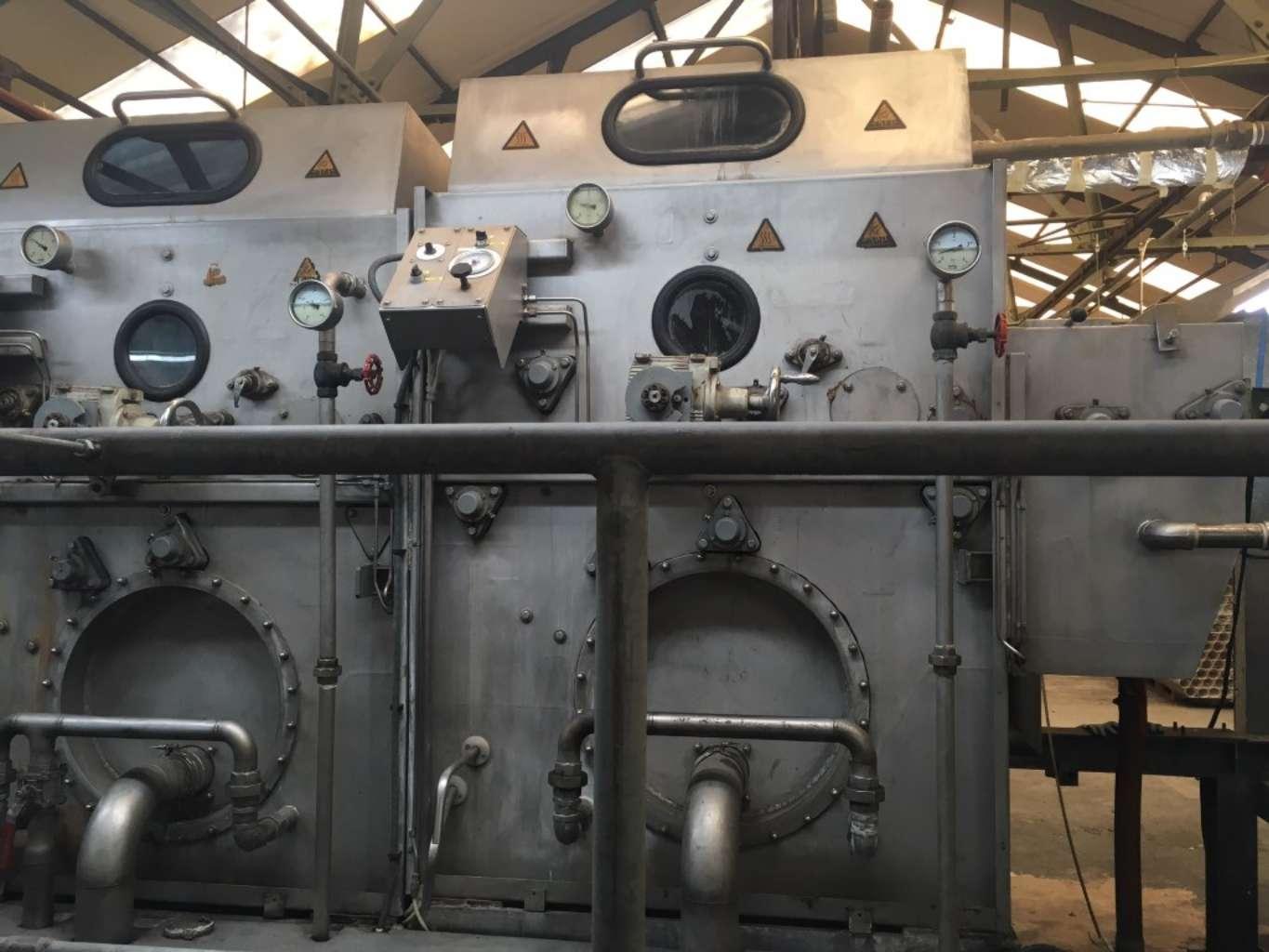

- 3 X STAINLESS STEEL WASHING COMPARTMENTS EACH EQUIPPED WITH HIGH LEVEL DRUM WITH DOUBLE NOZZLE BARS,
SCROLL ROLLER, LOWER PERFORATED DRUM ROTATING WITH DOUBLE NOZZLE BARS AND TENSION CONTROL.

- 3 X CIRCULATION PUMPS FOR LIQUOR SUPPLY TO NOZZLES. COUNTERFLOW BOX OPERATION

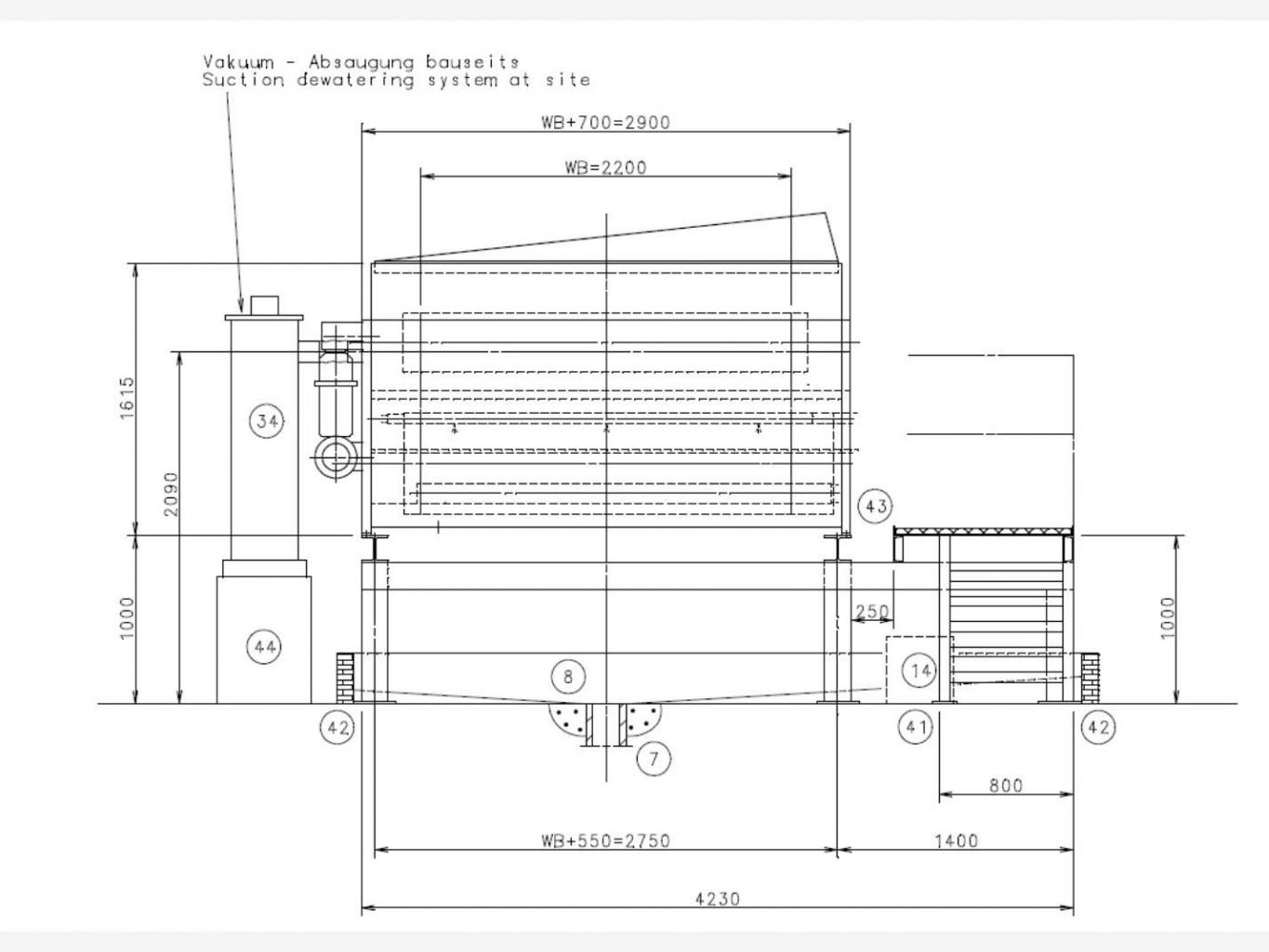

- 2 X VACUUM SUCTION SLOTS IN BOXES 1 & 3 (OPTITEXMA SYSTEM WITH PUMP AND SEPARATOR)

- EXIT ONTO A-FRAME, WITH PNEUMATIC CENTER WIND DRIVE


INDEPENDENT LIQUOR FLOW CONTROL AND AUTOMATIC TEMPERATURE CONTROL ON EACH BOX.
PROGRAMMABLE FLOW CONTROL BASED ON RANGE SPEED AND WEIGHT OF FABRIC.

STAINLESS STEEL PRE-WASH WATER HEAT EXCHANGER (FULLY AUTOMATIC) AND SPARE HEAT EXCHANGER INCLUDED.
RANGE SUITABLE FOR:

CONTROL PANEL BASED ON SIEMENS HARDWARE

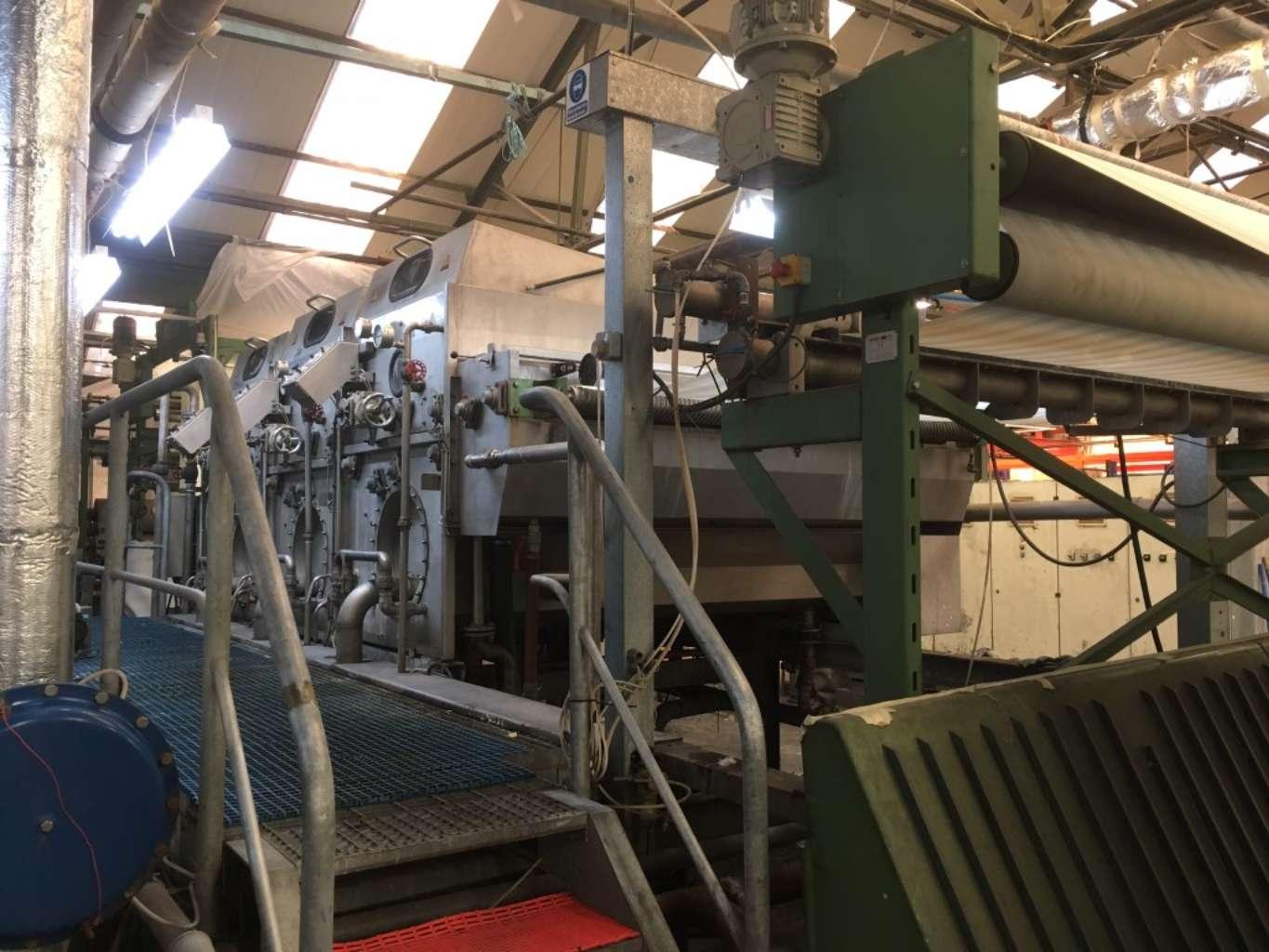

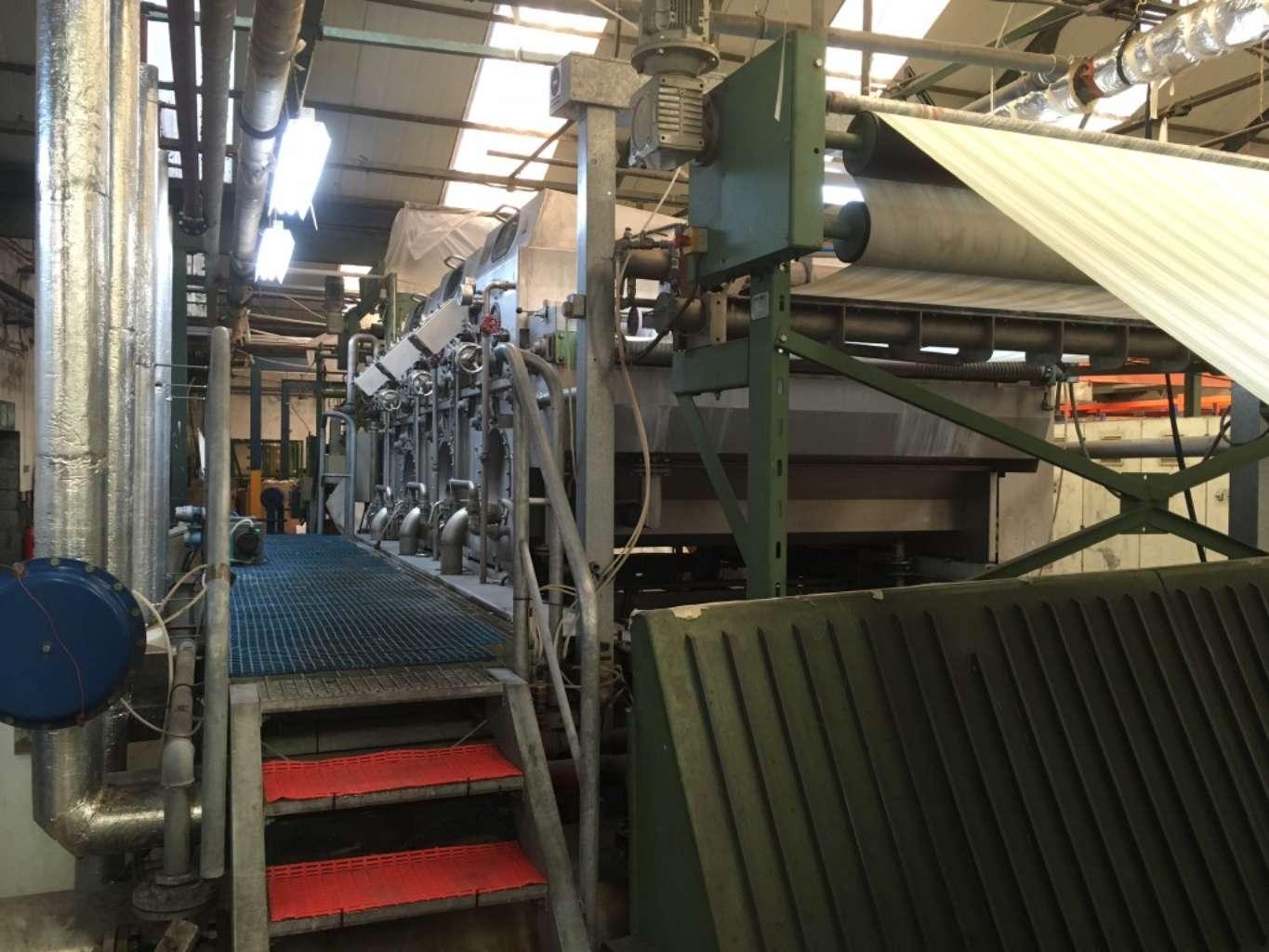

RANGE SPEED: 0-50MPM. OPERATION PLATFORM INCLUDED
