Machine description

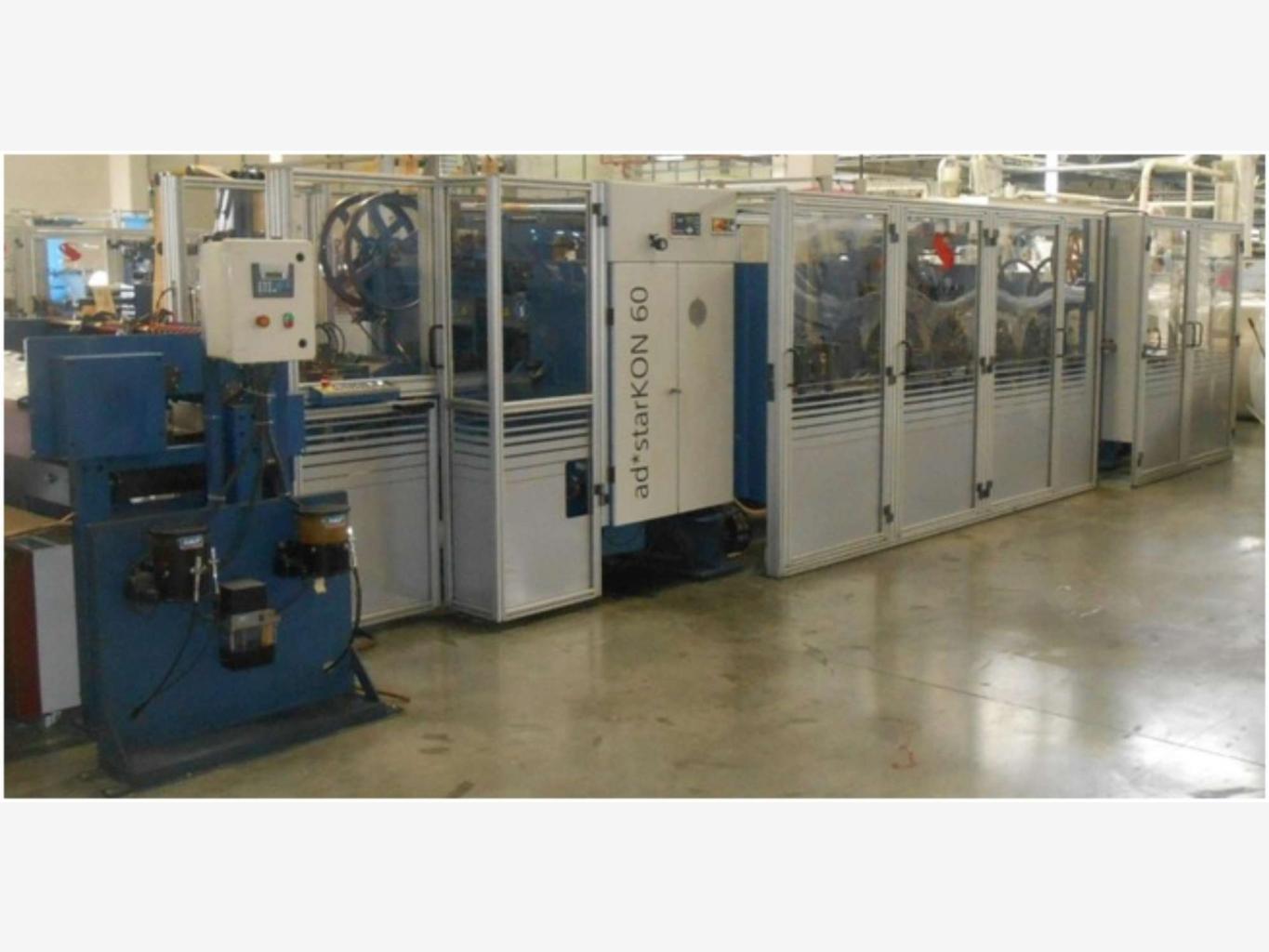

AD*STARKON 60

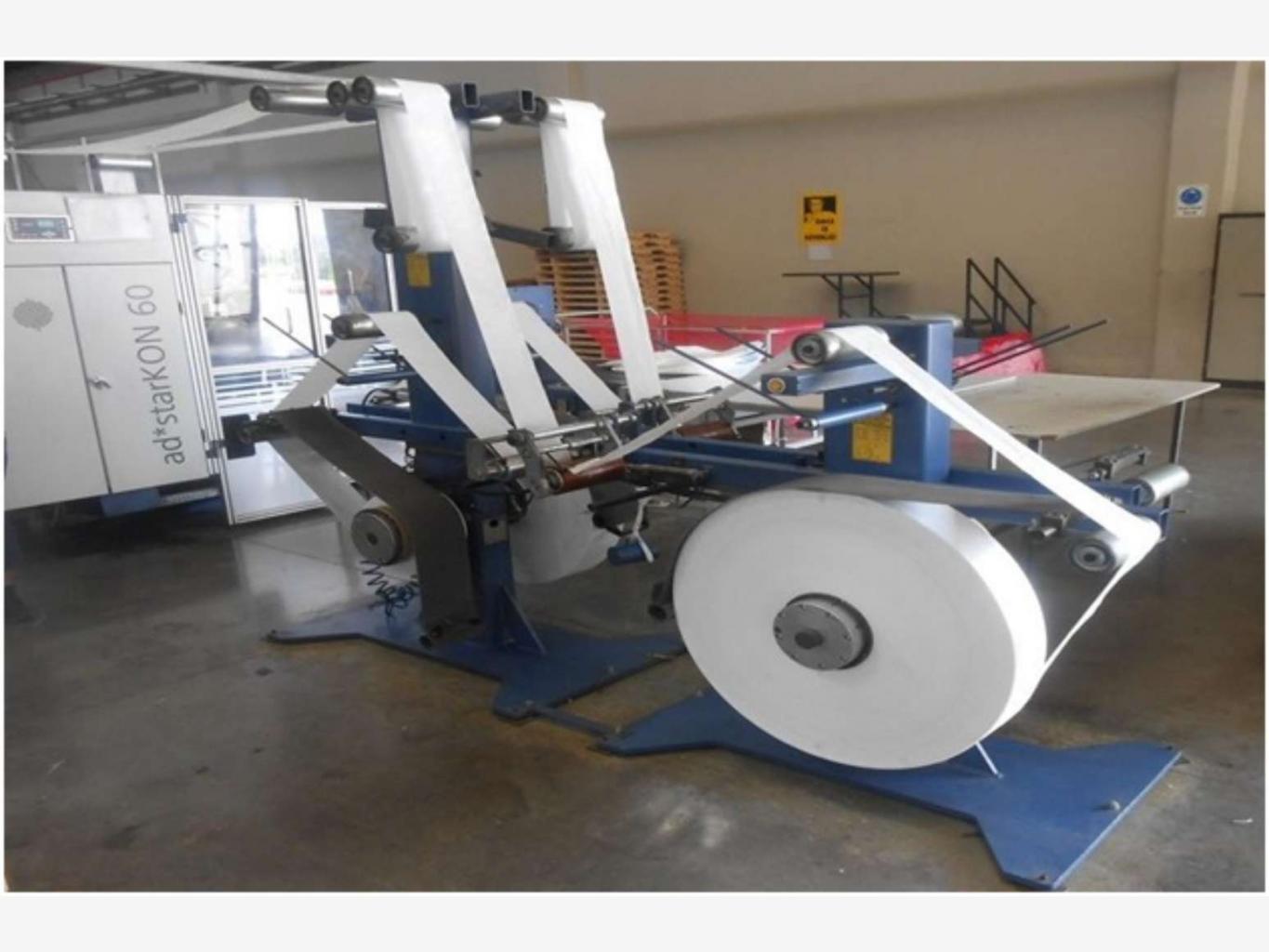

• Unwinding Station
• Perforating System Standard and Micro
• Hole Punch Unit
• Cross Cutting Unit
• Intermittent and Continuous Feed Section Without Pins
• Valve Unit

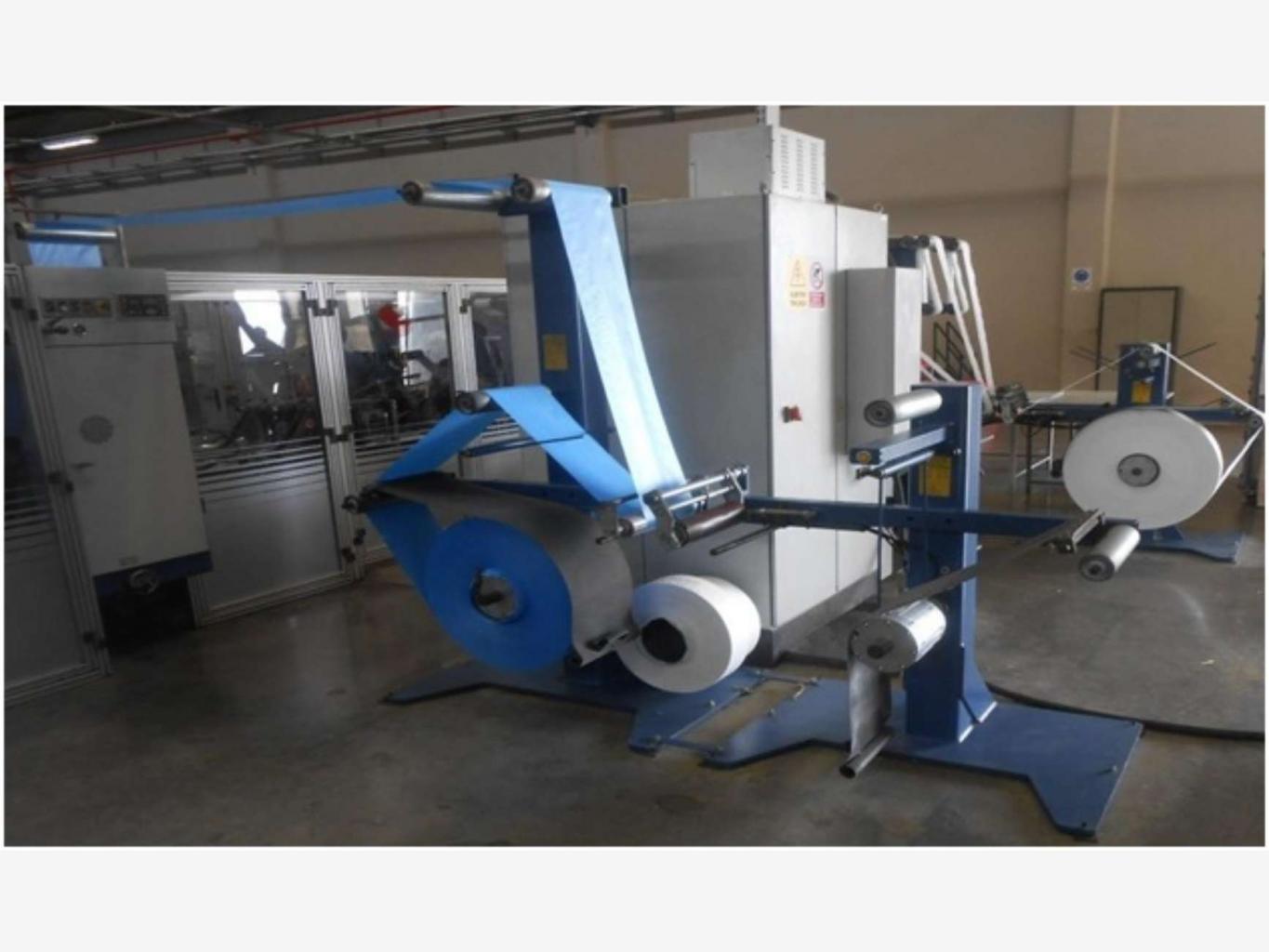

• Bottom Patches Devices
• Stacking Unit

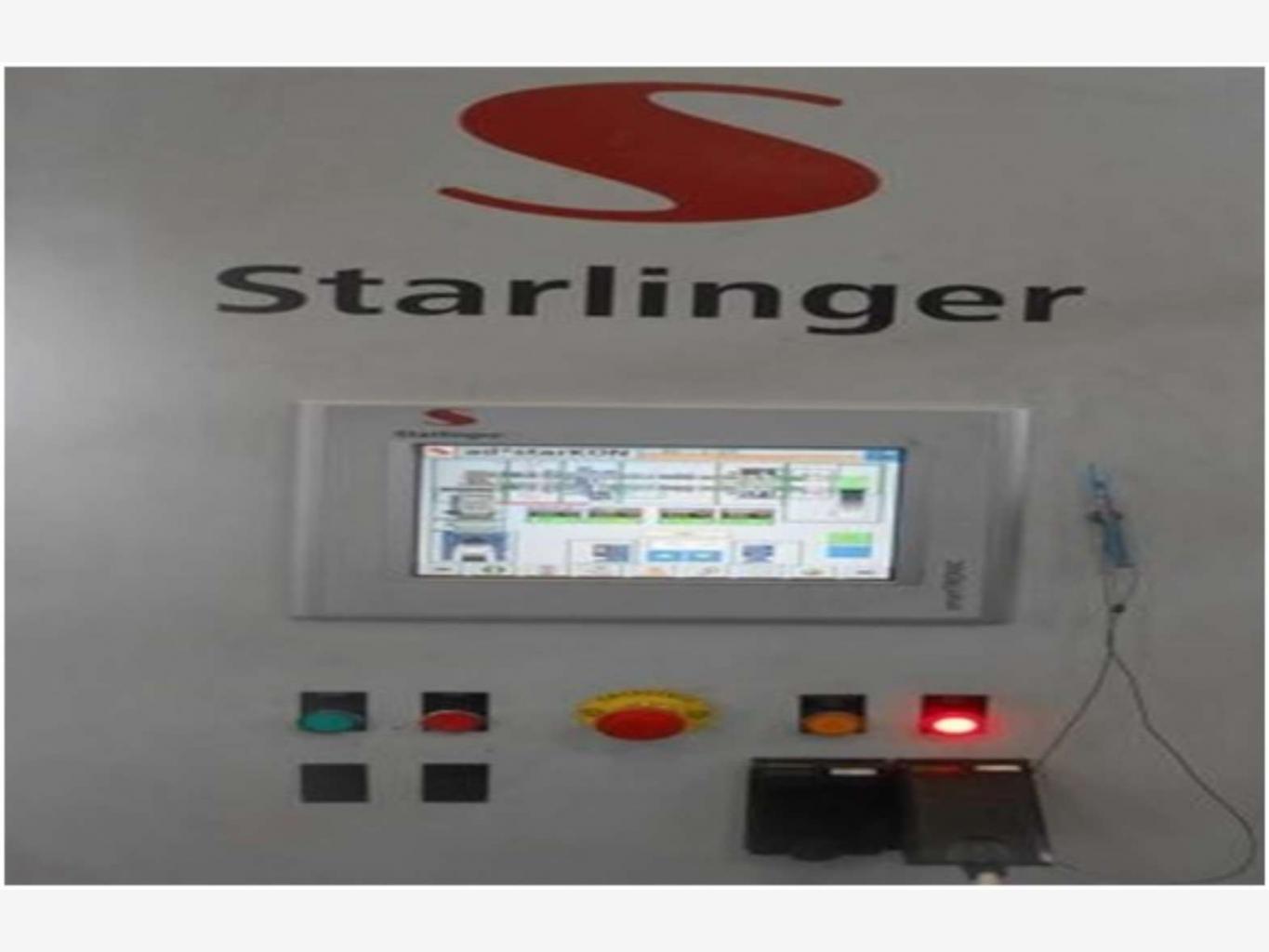

• Quality Control System Qualistar
• Two-Circuit Tempering Unit

SIZE RANGE :
Sack width double flat350-600 mm
Sack length .450-910 mm
Bottom width80-180 mm
Bottom width pulled open170-380 mm
Bottom center distance350-750 mm
Cut-off length for tubular fabric .530-1090 mm
Intermittent cycle length635 mm
 VALVE PATCH:
Cut-off length80-300 mm
Fabric width.170-330 mm
COVER PATCHES:
Cut-off length230-480 mm
Fabric width75-175 mm
 PRODUCTION SPEED:
Bottom width ≤ 140 mm sacks/minmax. 60
Bottom width > 140 mm sacks/minmax.40
MACHINE DIMENSIONS:
Length (standard)10555 mm
Width (standard):6710 mm
Height: 2735 mm
 COMPRESSED AIR REQUIREMENTS:
Operating pressure6 – 7 bar
Air consumption approx.120 Nm³/h
ELECTRICALl DATA:
Connected load.82 kVA
10/10/2016WORKING HOURS:
1 - 10-00064-00036 : 24985 h
2 - 10-00065-00036 : 25571 h
3 - 10-00068-00036 : 26196 h
4 - 10-00069-00036 : 24924 h
